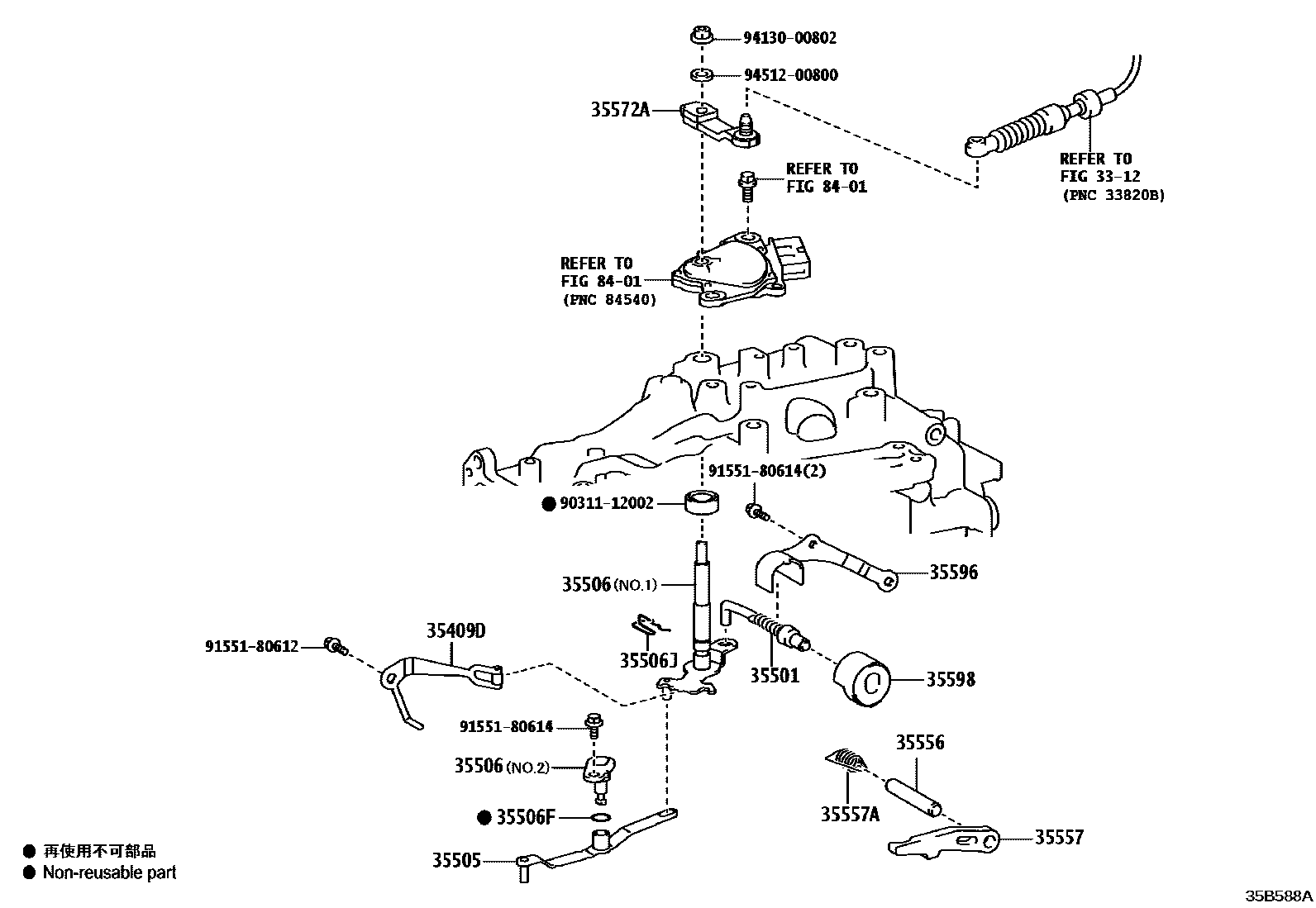

THROTTLE LINK & VALVE LEVER (ATM)

3312

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-48060iAXVA80202406

35501ROD SUB-ASSY, PARKING LOCK

main35501-33030iAXVA80202406

35505LEVER SUB-ASSY, MANUAL VALVE

main35502-33010iAXVA80202406

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35503-48010iAXVA80202406

NO.2:REFER ILLUST.

main35506-33041iAXVA80202406

NO.1:REFER ILLUST.

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90301-09173iAXVA80202406

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09004iAXVA80202406

35556SHAFT, PARKING LOCK PAWL

main35556-48040iAXVA80202406

35557PAWL, PARKING LOCK

main35557-33040iAXVA80202406

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-29030iAXVA80202406

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-48051iAXVA80202406

35596PLATE, PAWL STOPPER

main35596-33020iAXVA80202406

35598SLEEVE, PARKING LOCK

main35598-48040iAXVA80202406

8401

9031112002

main90311-12002

9155180612

main91551-80612

9155180614

main91551-80614

9413000802

main94130-00802

9451200800

main94512-00800

19 parts on this diagram · 1 diagram in section
