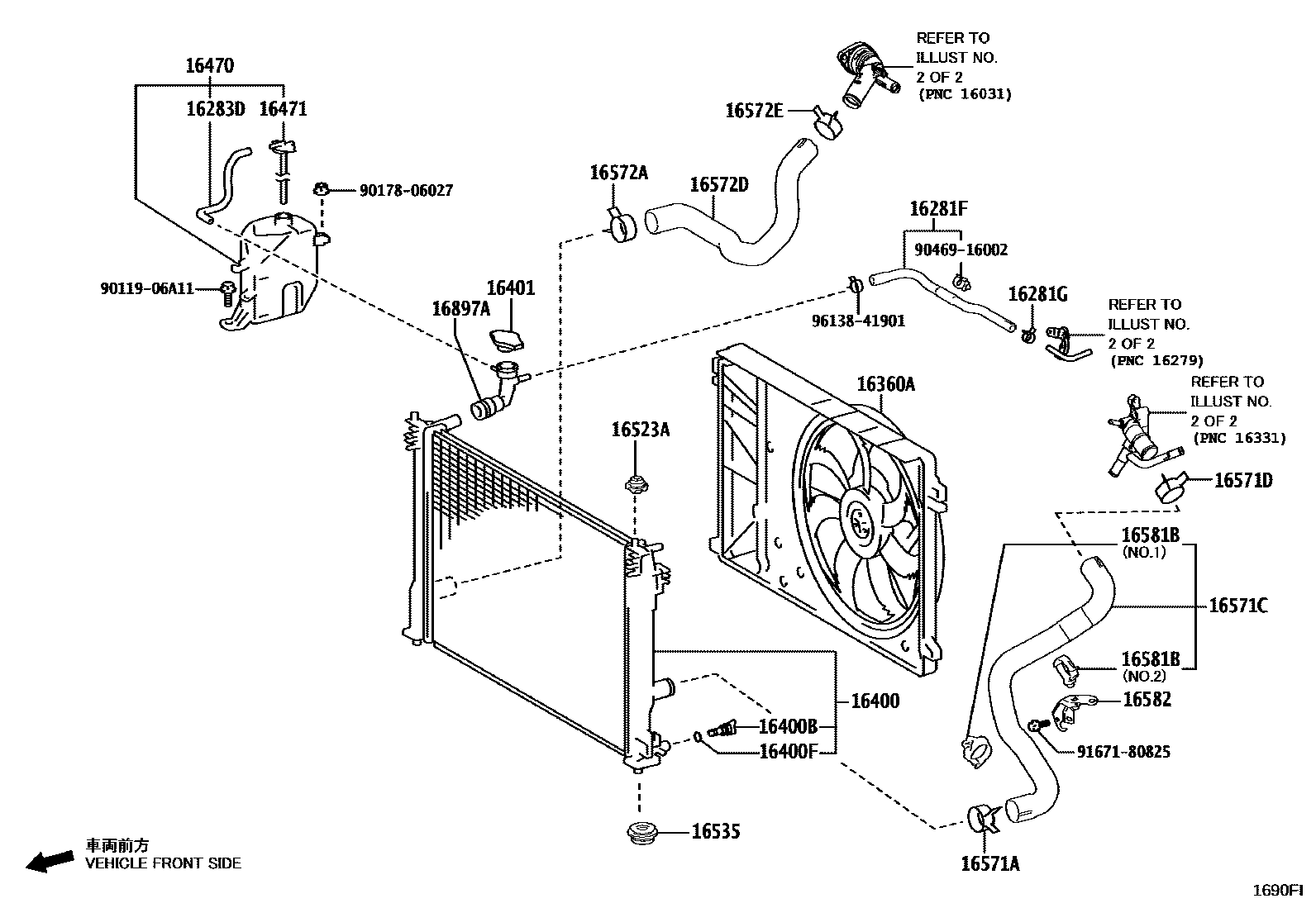

RADIATOR & WATER OUTLET
16281HOSE, WATER BY-PASS, NO.4
16281GCLIP(FOR WATER BY-PASS HOSE NO.5)
16283HOSE, WATER BY-PASS, NO.6
UKRAINE SPEC
EGYPT SPEC
IRAQ SPEC
KAZAKHSTAN SPEC
MOLDOVA SPEC
UKRAINE SPEC
CAUCASUS SPEC
ISRAEL SPEC
KYRGYZSTAN SPEC
ARMENIA SPEC
16283DHOSE, WATER BY-PASS, NO.6
16360AFAN ASSY, W/MOTOR
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572ECLIP, RADIATOR HOSE, NO.2
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
NO.1:REFER ILLUST.
KOREA SPEC
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
16582BRACKET, RADIATOR, NO.1
9011906A11
main90119-06A11
9017806027
main90178-06027
9046916002
main90469-16002
9167180825
main91671-80825
9613841901
main96138-41901
28 parts on this diagram · 6 diagrams in section
