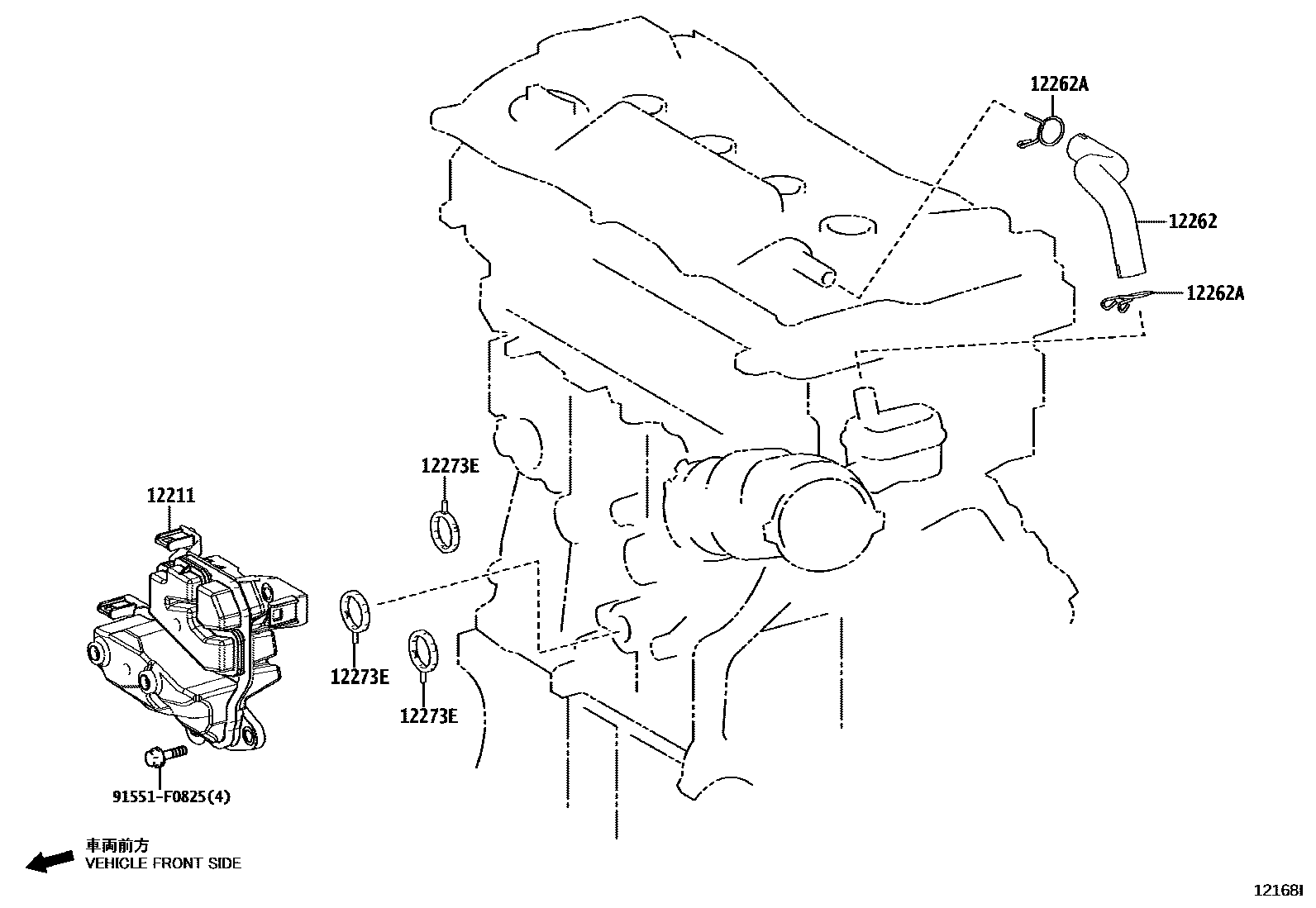

VENTILATION HOSE

0001 1 0002 1 0003 1

12211CASE, VENTILATION, NO.1

main12211-24020iM20..MXVA80202406

main12211-25011iA25..AXVA80202406

UKRAINE SPEC

main12211-25011iA25..AXVA80202406

IRAQ SPEC

12262HOSE, VENTILATION, NO.2

main12262-24060iM20..MXVA80202406

main12262-25030iA25..AXVA80202406

main12262-25060iA25..AXVH80202406

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004iM20..MXVA80202406

12273EGASKET(FOR VENTILATION CASE)

main12273-24010iA25..AXVA80202406

UKRAINE SPEC

main12273-24010iA25..AXVA80202406

IRAQ SPEC

91551F0825

main91551-F0825

5 parts on this diagram · 3 diagrams in section
