HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

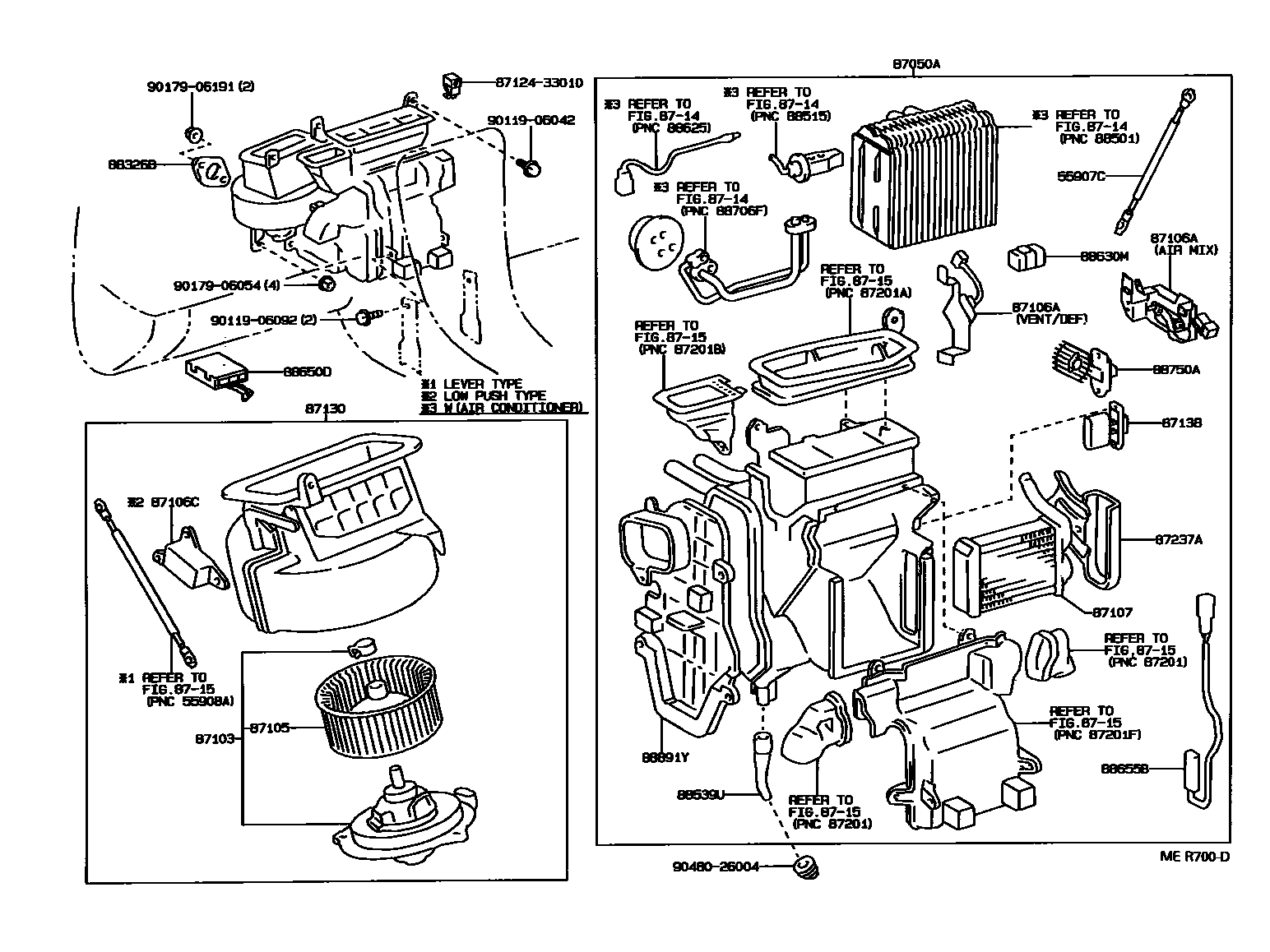

Parts diagram
55907CCABLE SUB-ASSY, WATER VALVE CONTROL
main87286-06010i199309-199607
sub87286-33010
main87286-33020i199309-199607
87050ARADIATOR ASSY, AIR CONDITIONER
main87050-06010i199203-199607
SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC
sub87050-33030
main87050-06020i199203-199309
SWEDEN SPEC & MAKER OPT OR FINLAND SPEC & MAKER OPT OR NORWAY SPEC & MAKER OPT
main87050-06030i199203-199309
SWEDEN SPEC & MAKER OPT OR FINLAND SPEC & MAKER OPT OR NORWAY SPEC & MAKER OPT
main87050-06040i199203-199309
SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC
main87050-06050i199203-199607
sub87050-33050
main87050-06060i199203-199309
MAKER OPT
main87050-06070i199203-199309
main87050-06080i199203-199309
MAKER OPT
main87050-06130i199309-199607
MAKER OPT
sub87050-33280
main87050-06140i199309-199607
SWEDEN SPEC & MAKER OPT OR FINLAND SPEC & MAKER OPT OR NORWAY SPEC & MAKER OPT
sub87050-33290
main87050-06150i199309-199607
sub87050-33220
main87050-06160i199309-199607
SWEDEN SPEC OR FINLAND SPEC OR NORWAY SPEC
sub87050-33330
main87050-33010i199203-199607
main87050-33020i199203-199309
MAKER OPT
main87050-33080i199203-199309
main87050-33090i199203-199309
MAKER OPT
main87050-33240i199309-199607
MAKER OPT
main87050-33250i199309-199607
87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
main87103-06010i199203-199507
main87103-06011i199507-199607
sub87103-33021
main87103-22110i199506-199607
main87103-33010i199203-199506
87105FAN SUB-ASSY, HEATER BLOWER
main87105-06010i199203-199507
main87105-33010i199203-199506
sub87103-22100
87106ASERVO SUB-ASSY, DAMPER
main87106-06010i199203-199309
sub87106-33030
main87106-06040i199309-199607
AIR MIX
sub87106-33050
main87106-06050i199309-199607
VENT/DEF
sub87106-33110
main87106-33010i199309-199607
main87106-33100i199309-199607
AIR MIX
main87106-33120i199309-199607
VENT/DEF
87106CSERVO SUB-ASSY, DAMPER(FOR BLOWER)
main87106-06030i199203-199607
main87106-33060i199203-199607
87107UNIT SUB-ASSY, HEATER RADIATOR
main87107-06010i199203-199607
main87107-33010i199203-199607
87130BLOWER ASSY, HEATER, FRONT
main87130-06010i199203-199607
sub87130-33030
main87130-06020i199203-199309
sub87130-33040
main87130-06040i199309-199607
sub87130-33090
main87130-33010i199203-199607
main87130-33020i199203-199309
main87130-33070i199309-199607
87138RESISTOR, HEATER BLOWER
main87138-06010i199203-199607
main87138-06020i199203-199309
main87138-33010i199203-199607
main87138-33020i199203-199309
8714
8715
87237ACOVER, HEATER PIPING
main87237-33010i199203-199607
88326BPLATE, COVER
main88326-06010i199309-199607
MAKER OPT
main88326-06020i199203-199309
sub88326-33020
88539UHOSE, COOLER DRAIN
main88539-06010i199203-199607
main88539-33010i199203-199406
main88539-33020i199406-199607
88630MRELAY ASSY, COOLER
main88630-28040i199309-199607
88650DAMPLIFIER ASSY
main88650-06010i199203-199309
MAKER OPT
main88650-06020i199203-199309
MAKER OPT
main88650-06040i199408-199607
main88650-33010i199203-199309
DEALER OPT
main88650-33020i199203-199309
DEALER OPT
main88650-33030i199309-199607
main88650-33050i199309-199408
DEALER OPT
main88650-33060i199309-199607
88655BSWITCH, WATER TEMPERATURE
main88790-33010i199309-199506
main88790-33020i199506-199607
88750ATRANSISTOR ASSY, BLOWER RESISTOR
main88750-06010i199309-199607
main88750-33010i199309-199607
88891YCOVER, COOLER,NO.1
main88891-06010i199408-199607
*ND USA
main88891-33010i199203-199602
main88891-33011i199602-199607
main88891-33030i199408-199607
MAKER OPT,*ND
8712433010CLAMP, HEATER
main87124-33010
9011906042
main90119-06042
9011906092
main90119-06092
9017906054
main90179-06054
9017906191
main90179-06191
9048026004
main90480-26004

25 parts on this diagram · 2 diagrams in section
