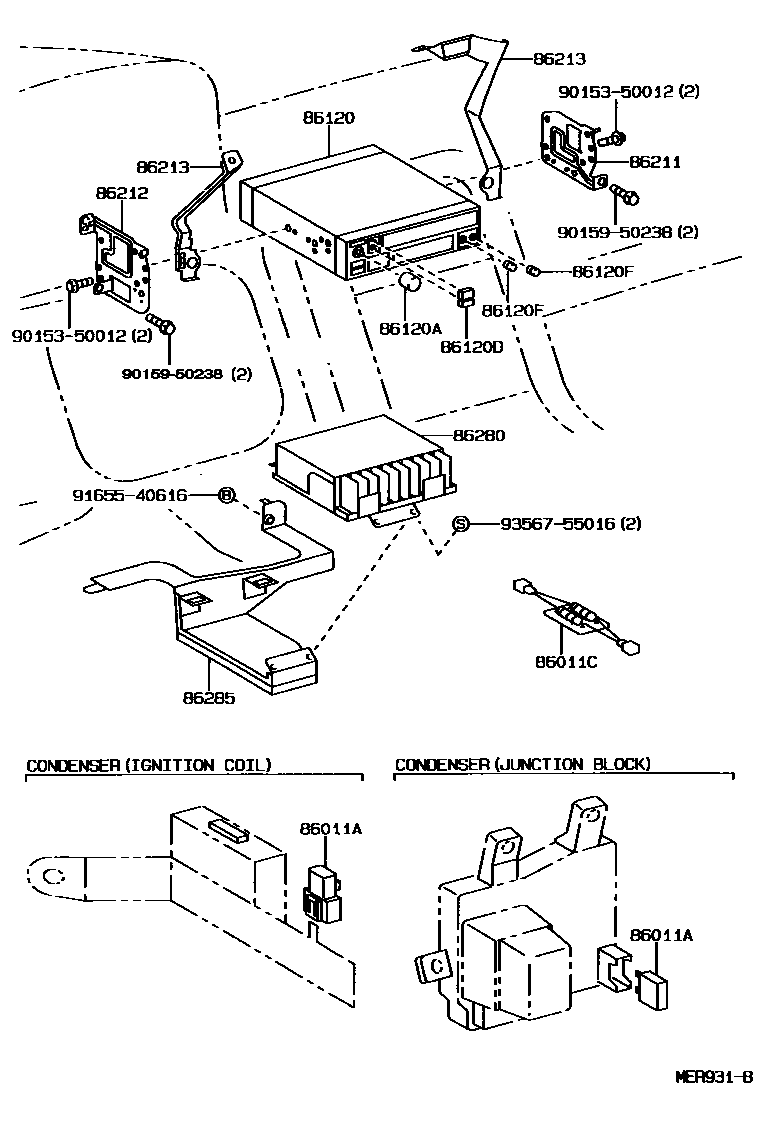

RADIO RECEIVER & AMPLIFIER & CONDENSER

86011ACONDENSER, RADIO SETTING

main90980-04066iSXV10,VCV10..NAP199408-199607

NO.1 J/B

main90980-04066iSXV10,VCV10..NAP199203-199408

main90980-04083iSXV10,VCV10..NAP199203-199607

IGNITER

86011CFILTER, NOISE

main90980-05190iSXV10,VCV10..NAP199309-199607

main90980-05223iSXV10..NAP..LHD..MTM..GL199309-199408

SWEDEN SPEC & W(*HC) OR FINLAND SPEC & W(*HC)

main90980-05223iSXV10,VCV10..NAP199203-199408

86120RECEIVER ASSY, RADIO

main86120-14820iSXV10,VCV10..NAP..(GL,GX)199309-199407

FUJITSU TEN,W(4 SPEAKER)

sub86120-14821

main86120-14821iSXV10,VCV10..NAP..(GL,GX)199408-199409

FUJITSU TEN

sub86120-14822

main86120-14821iSXV10,VCV10..NAP..(GL,GX)199407-199505

FUJITSU TEN,W(4 SPEAKER)

sub86120-14822

main86120-14822iSXV10,VCV10..NAP..(GL,GX)199505-199607

FUJITSU TEN,W(4 SPEAKER)

main86120-2B180iSXV10,VCV10..NAP..(GX,XL)199203-199309

MATSUSHITA

main86120-2B180iSXV10,VCV10..NAP..(GX,XL)199203-199309

MATSUSHITA,W(6 SPEAKER)

main86120-2B320iSXV10,VCV10..NAP..(GL,GX)199203-199309

FUJITSU TEN,W(4 SPEAKER)

main86120-2B450iSXV10,VCV10..NAP..(GX,XL)199309-199607

MATSUSHITA,ID=58405

main86120-2B450iSXV10,VCV10..NAP..(GX,XL)199309-199408

MATSUSHITA,ID=58405,W(6 SPEAKER)

86120AKNOB, RADIO RECEIVER SWITCH

main86128-17230iSXV10..NAP..GL199203-199309

W/O(*AF)

main86128-17490iSXV10,VCV10..NAP..(GX,XL)199309-199408

W/O(*AF)

main86128-17490iSXV10,VCV10..NAP199408-199607

main86128-20140iSXV10,VCV10..NAP..(GL,GX)199203-199607

W(*AF)

86120DKNOB, RADIO RECEIVER TONE

86120FKNOB, RADIO RECEIVER SUB VOLUME

86211BRACKET, RADIO, NO.1

main86211-33020iSXV10,VCV10..NAP..RHD199203-199607

main86211-33030iSXV10,VCV10..NAP..LHD199203-199607

86212BRACKET, RADIO, NO.2

main86212-33020iSXV10,VCV10..NAP..RHD199203-199607

main86212-33030iSXV10,VCV10..NAP..LHD199203-199607

86213BRACKET, RADIO, NO.3

main86213-33010iSXV10,VCV10..NAP..LHD199203-199607

RH

main86213-33020iSXV10,VCV10..NAP..LHD199203-199309

LH

main86213-33021iSXV10,VCV10..NAP..LHD199309-199607

LH

main86213-33030iSXV10,VCV10..NAP..RHD199203-199607

RH

main86213-33040iSXV10,VCV10..NAP..RHD199203-199309

LH

main86213-33041iSXV10,VCV10..NAP..RHD199309-199607

LH

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-06020iSXV10,VCV10..NAP..(GL,GX)199203-199607

86285BRACKET, AMPLIFIER, NO.1

main86285-06010iSXV10,VCV10..NAP..LHD..(GL,GX)199203-199309

main86285-06011iSXV10,VCV10..NAP..LHD..(GL,GX)199309-199607

main86285-33020iSXV10,VCV10..NAP..RHD199203-199309

main86285-33021iSXV10,VCV10..NAP..RHD199309-199607

9015350012

main90153-50012

9015950238

main90159-50238

9165540616

main91655-40616

9356755016

main93567-55016

15 parts on this diagram · 1 diagram in section
