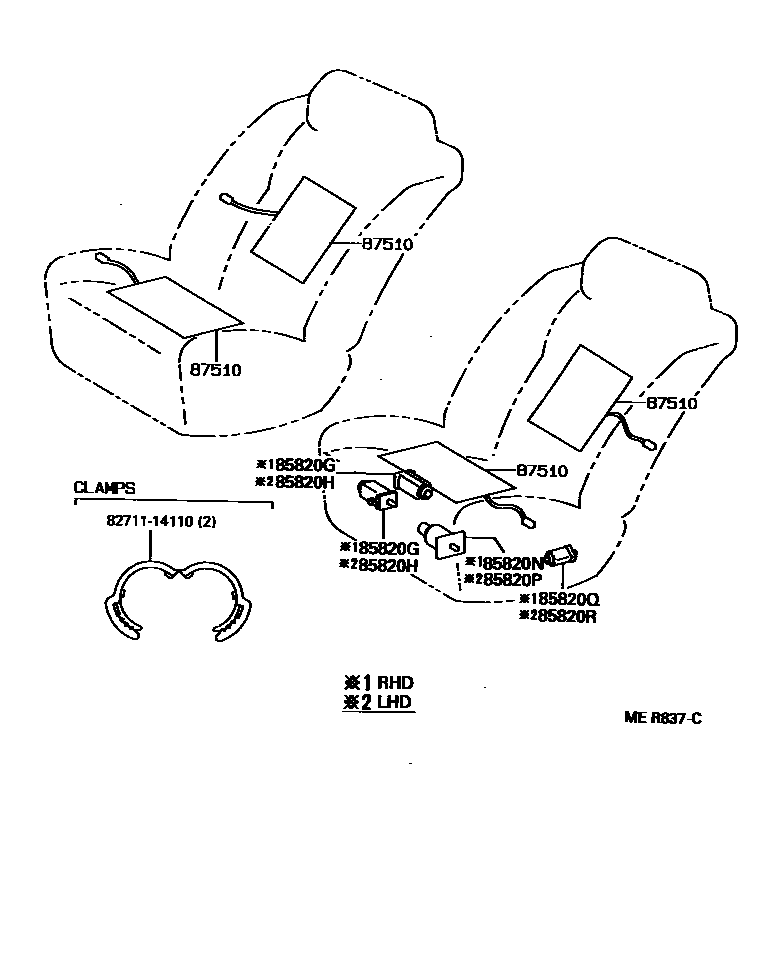

SEAT MOTOR & SEAT HEATER

85820GMOTOR ASSY, POWER SEAT

main85820-22030iVCV10..NAP..RHD199309-199607

sub85820-24080

85820HMOTOR ASSY, POWER SEAT

main85820-14030iVCV10..NAP..LHD199309-199607

85820NMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE RH)

main85820-50090iVCV10..NAP..RHD199309-199607

85820PMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE LH)

main85820-50010iVCV10..NAP..LHD199309-199607

85820QMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING RH)

main85820-32020iVCV10..NAP..RHD199309-199607

85820RMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING LH)

main85820-33010iVCV10..NAP..LHD199309-199607

87510HEATER ASSY, SEAT

main87510-33010iVCV10..NAP..LHD199408-199607

POWER SEAT,CUSION

main87510-33010iSXV10..NAP..LHD..GL199203-199607

CUSION

main87510-33020iVCV10..NAP..LHD199408-199607

POWER SEAT,BACK

main87510-33020iSXV10,VCV10..NAP..LHD..(GL,GX)199203-199607

BACK

main87510-33050iVCV10..NAP..LHD199203-199607

CUSION

main87510-33060iVCV10..NAP..LHD199203-199607

BACK

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8 parts on this diagram · 1 diagram in section
