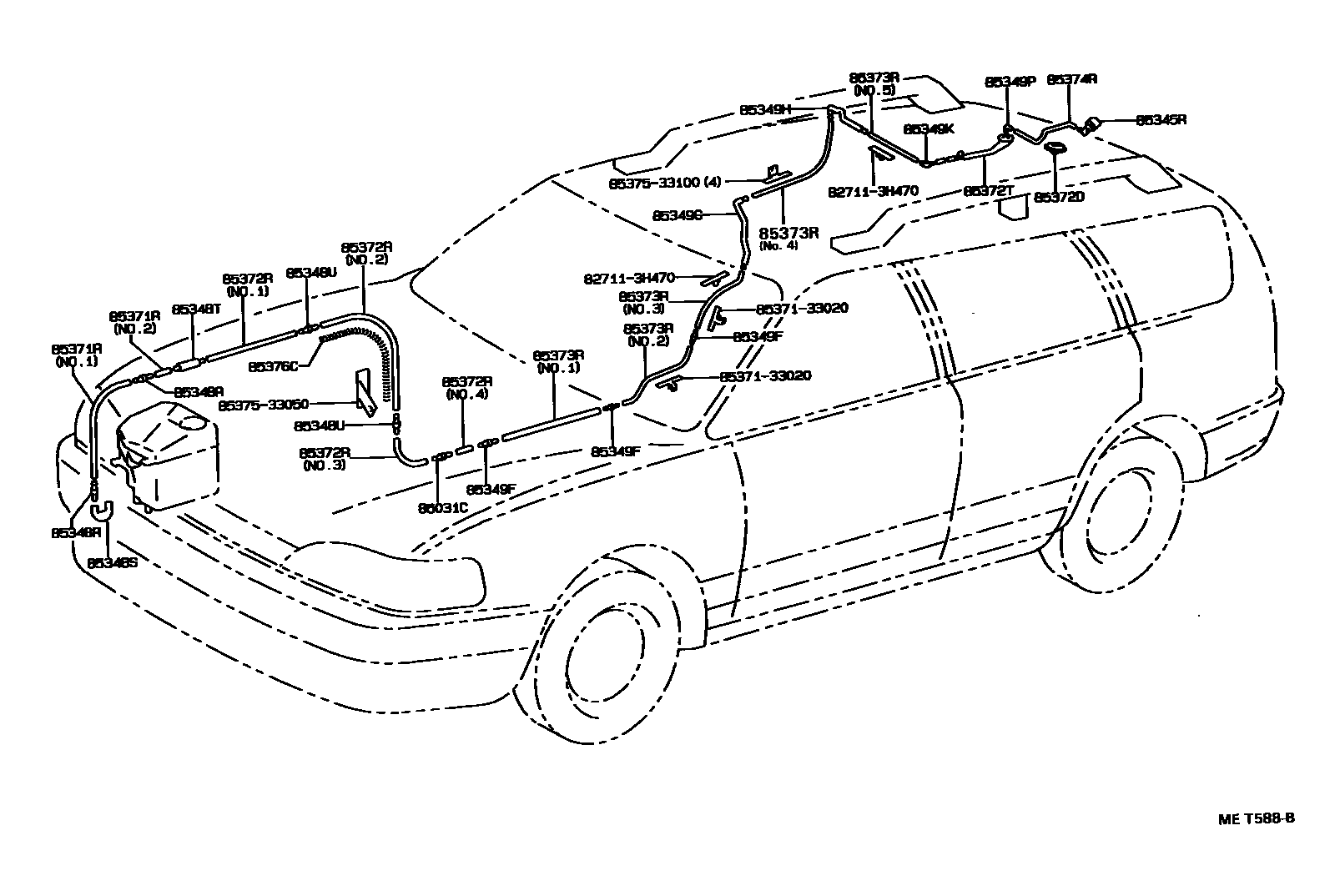

REAR WASHER
85031CVALVE SUB-ASSY, WASHER
sub85375-12520
85345RNOZZLE, REAR WASHER
sub85395-33020
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85349HJOINT, REAR WASHER HOSE, NO.3
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1800,NO.1
85372DGROMMET, REAR WASHER HOSE
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
L=1450,NO.4
L=1800,NO.1,NO.3,NO.2
L=1800,NO.3
L=1800,NO.1
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1785
L=1800,NO.1
L=1800,NO.3,NO.5
85374RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450
85376CSPRING, WASHER HOSE
827113H470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3H470
8537133020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-33020
8537533050HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)
main85375-33050
8537533100HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)
main85375-33100
22 parts on this diagram · 2 diagrams in section
