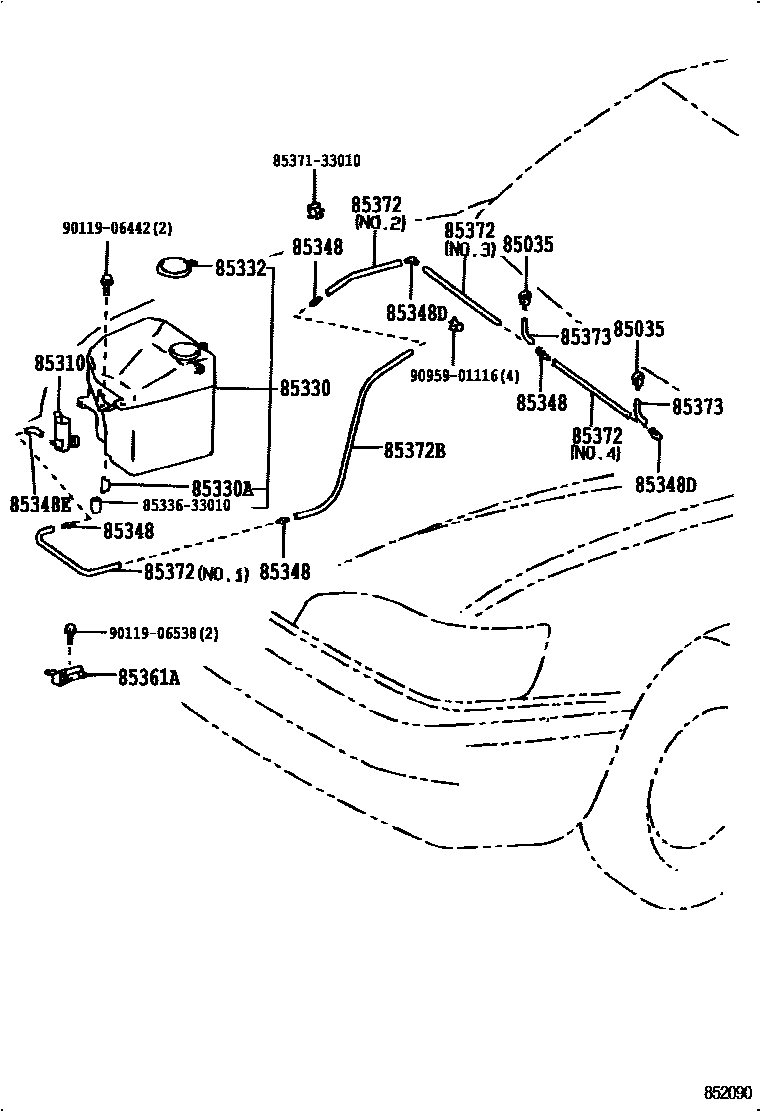

WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-12060×2iSXV10,VCV10..NAP199408-199607

main85385-33030×2iSXV10,VCV10..NAP..RHD199309-199408

main85385-33050×2iSXV10,VCV10..NAP..LHD199203-199408

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20160iSXV10,VCV10..NAP199509-199607

NIPPONDENSO

main85330-06020iSXV10,VCV10..NAP199509-199607

DELCO

85330JAR ASSY, WINDSHIELD WASHER

main85315-06040iSXV10,VCV10..NAP199509-199607

DELCO

main85315-06050iSXV10,VCV10..NAP199509-199607

W(HEADLAMP CLEANER),DELCO

main85315-33070iSXV10,VCV10..NAP199203-199309

main85315-33080iSXV10,VCV10..NAP199203-199309

W(HEADLAMP CLEANER)

main85315-33120iSXV10,VCV10..NAP199309-199509

main85355-33050iSXV10,VCV10..NAP199509-199607

W(HEADLAMP CLEANER),NIPPONDENSO

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iSXV10,VCV10..NAP199203-199607

85332CAP, WINDSHIELD WASHER JAR

main85316-06020iSXV10,VCV10..NAP199509-199607

DELCO

sub85316-06021

main85316-22190iSXV10,VCV10..NAP199209-199309

sub85316-12290

main85316-33010iSXV10,VCV10..NAP199203-199209

main85316-33120iSXV10,VCV10..NAP199309-199509

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85355-20200iSXV10,VCV10..NAP199309-199607

main85375-01010×2iSXV10,VCV10..NAP199203-199309

2-WAY

main85377-03010iSXV10,VCV10..NAP..RHD199203-199309

2-WAY

sub85377-01010

main85378-06010iSXV10,VCV10..NAP199203-199309

3-WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85377-06010iSXV10,VCV10..NAP199408-199607

LH,DELCO

main85377-06020iSXV10,VCV10..NAP..RHD199203-199309

RH,DELCO

sub85375-04080

main85377-33030iSXV10,VCV10..NAP..RHD199309-199408

NIPPONDENSO

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-16192iSXV10,VCV10..NAP199309-199607

main90099-33729iSXV10,VCV10..NAP199203-199309

sub90099-33075

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-33010iSXV10,VCV10..NAP199203-199309

sub85361-33011

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85374-06010iSXV10,VCV10..NAP..RHD199203-199309

L=460,NO.3

main85374-06020iSXV10,VCV10..NAP..RHD199203-199309

L=400,NO.2

main85374-06040iSXV10,VCV10..NAP..RHD199203-199309

L=520,NO.4

main85374-06060iSXV10,VCV10..NAP..RHD199203-199309

L=170,NO.1

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85374-06030iSXV10,VCV10..NAP..RHD199203-199309

L=1500

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85374-06040iSXV10,VCV10..NAP..LHD199309-199408

L=520

main90099-33080×2iSXV10,VCV10..NAP..LHD199203-199309

L=1450

8533633010SWITCH ASSY, RESERVE TANK LEVEL WARNING

main85336-33010

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9011906442

main90119-06442

9011906538

main90119-06538

9095901116

main90959-01116

17 parts on this diagram · 2 diagrams in section
