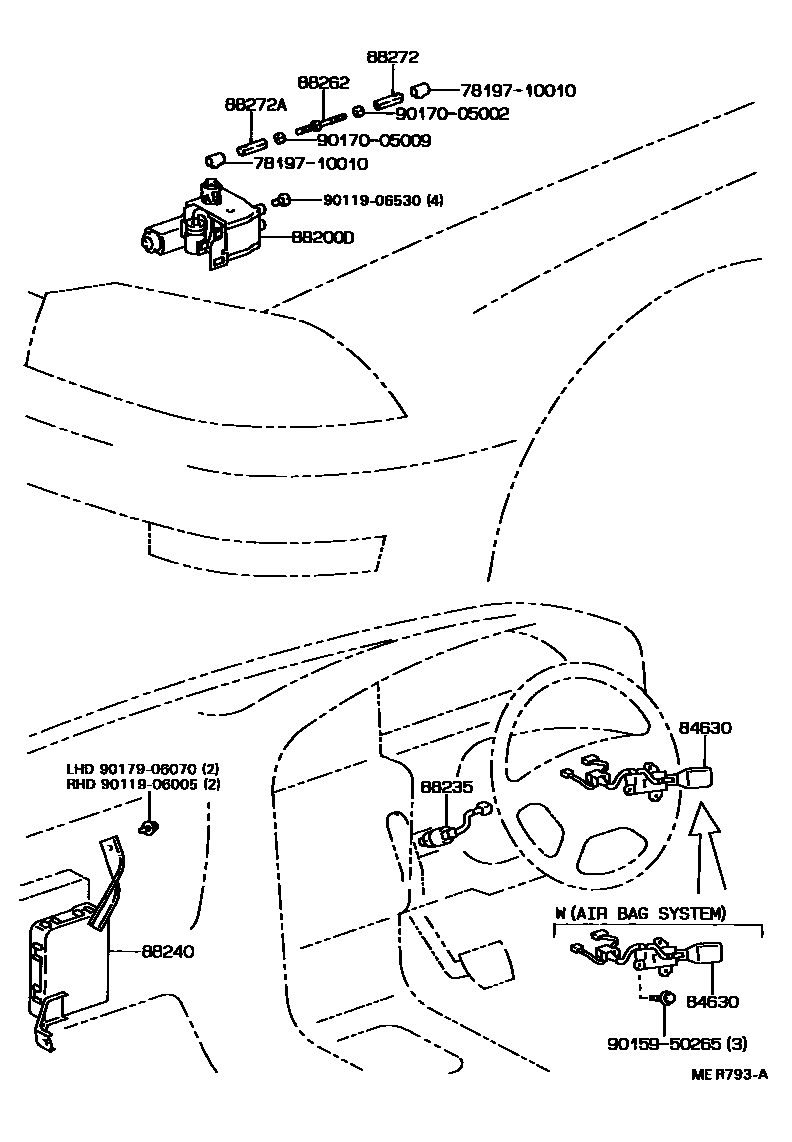

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-33030iSXV10,VCV10..NAP..(GL,GX)199203-199607

sub84630-33051

main84630-33040iSXV10,VCV10..NAP..(GL,GX)199203-199607

W(*80)

sub84630-22170

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-33010iVCV10..NAP199203-199607

AISIN

main88200-33020iSXV10..NAP..GL199203-199607

NIPPONDENSO

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-32010iSXV10..NAP..RHD..MTM199203-199607

main88280-33010iSXV10,VCV10..NAP..LHD..MTM..(GL,GX)199203-199607

88240COMPUTER ASSY, CRUISE CONTROL

main88240-33010iVCV10..NAP199203-199607

main88240-33020iSXV10..NAP..LHD..GL199203-199309

main88240-33030iSXV10..NAP..RHD199203-199607

main88240-33060iSXV10,VCV10..NAP..LHD..(GL,GX)199309-199508

main88240-33070iSXV10,VCV10..NAP..LHD..(GL,GX)199508-199607

88262ROD, SPEED CONTROL

main88206-33010iSXV10,VCV10..NAP..(GL,GX)199203-199607

88272END, SPEED CONTROL ROD

main88272-33010iSXV10,VCV10..NAP..(GL,GX)199203-199607

88272AEND, SPEED CONTROL ROD

main88272-33020iSXV10,VCV10..NAP..(GL,GX)199203-199607

7819710010CLIP, ACCELERATOR JOINT BALL

main78197-10010

9011906005

main90119-06005

9011906530

main90119-06530

9015950265

main90159-50265

9017005002

main90170-05002

9017005009

main90170-05009

9017906070

main90179-06070

14 parts on this diagram · 2 diagrams in section
