SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1INSTRUMENT PANEL SWITCH 0005 1INSTRUMENT PANEL SWITCH 0006 1COWL RH 0007 1COWL RH 0008 1COWL LH 0009 1COWL LH 0010 1COMBINATION SWITCH 0011 1COMBINATION SWITCH 0012 1ROOF,FRONT DOOR & SEAT 0013 1FLOOR,REAR & BACK DOOR

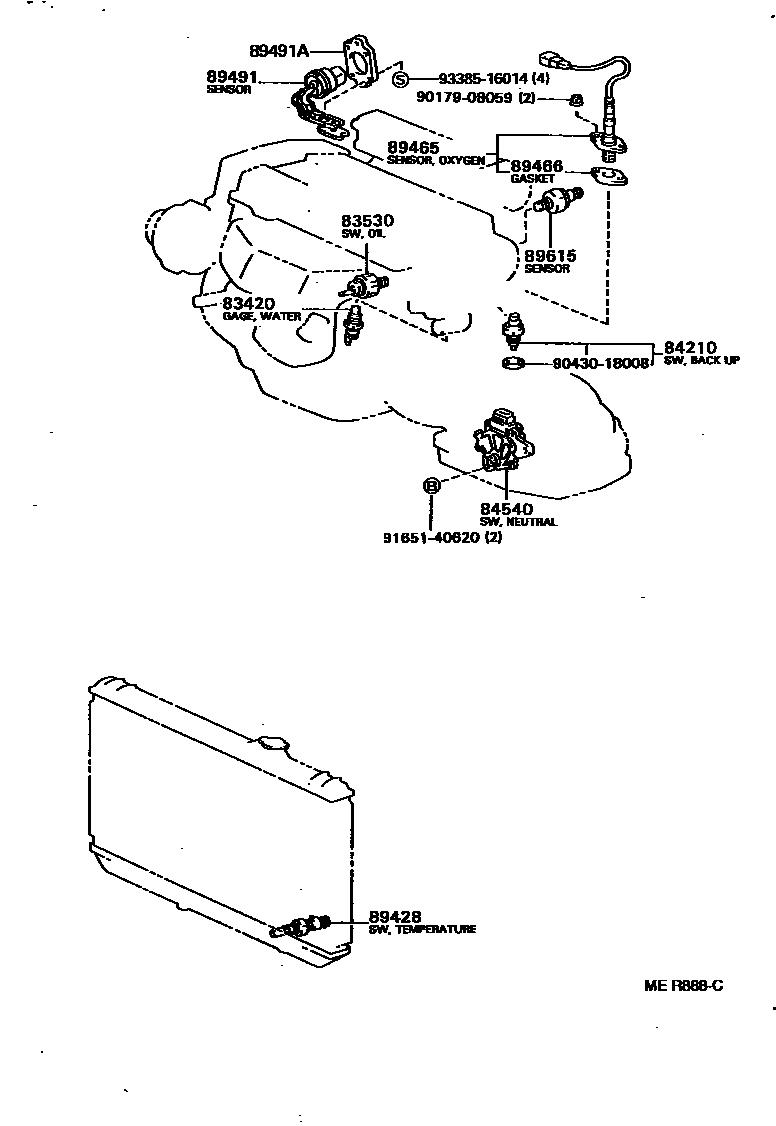

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVCV10..NAP199501-199607

main83420-16030iVCV10..NAP199301-199501

main83420-16040iSXV10..NAP199208-199607

NIPPONDENSO

main83420-20020iSXV10..NAP199203-199208

main83420-20030iSXV10..NAP199208-199408

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iVCV10..NAP199208-199408

NIPPONDENSO

main83530-30080iSXV10,VCV10..NAP199203-199208

sub83530-60040

main83530-30090iSXV10..NAP199208-199408

YAZAKI

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iSXV10,VCV10..NAP..MTM199203-199607

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-20200iVCV10..NAP..ATM199309-199607

main84540-20220iSXV10..NAP..ATM199309-199607

main84540-32070iSXV10..NAP..ATM199203-199309

sub84540-16040

main84540-32090iVCV10..NAP..ATM199203-199309

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-33010iSXV10..NAP199203-199607

89465SENSOR, OXYGEN

main89465-39405×2iVCV10..NAP199408-199607

main89465-39435iSXV10..NAP199203-199607

89466GASKET, OXYGEN SENSOR

main89466-20020×2iVCV10..NAP199203-199607

89491SENSOR, ENGINE OIL LEVEL

main89491-33010iVCV10..NAP199203-199607

main89491-33020iSXV10..NAP199203-199607

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001iSXV10..NAP199203-199607

89615SENSOR, KNOCK CONTROL

main89615-20030iSXV10..NAP199203-199607

MATSUSHITA

sub89615-32040

main89615-33010×2iVCV10..NAP199203-199207

MATSUSHITA

main89615-33020×2iVCV10..NAP199408-199607

NIPPONDENSO

sub89615-32030

9017908059

main90179-08059

9043018008

main90430-18008

9165140620

main91651-40620

9338516014

main93385-16014

14 parts on this diagram · 13 diagrams in section
