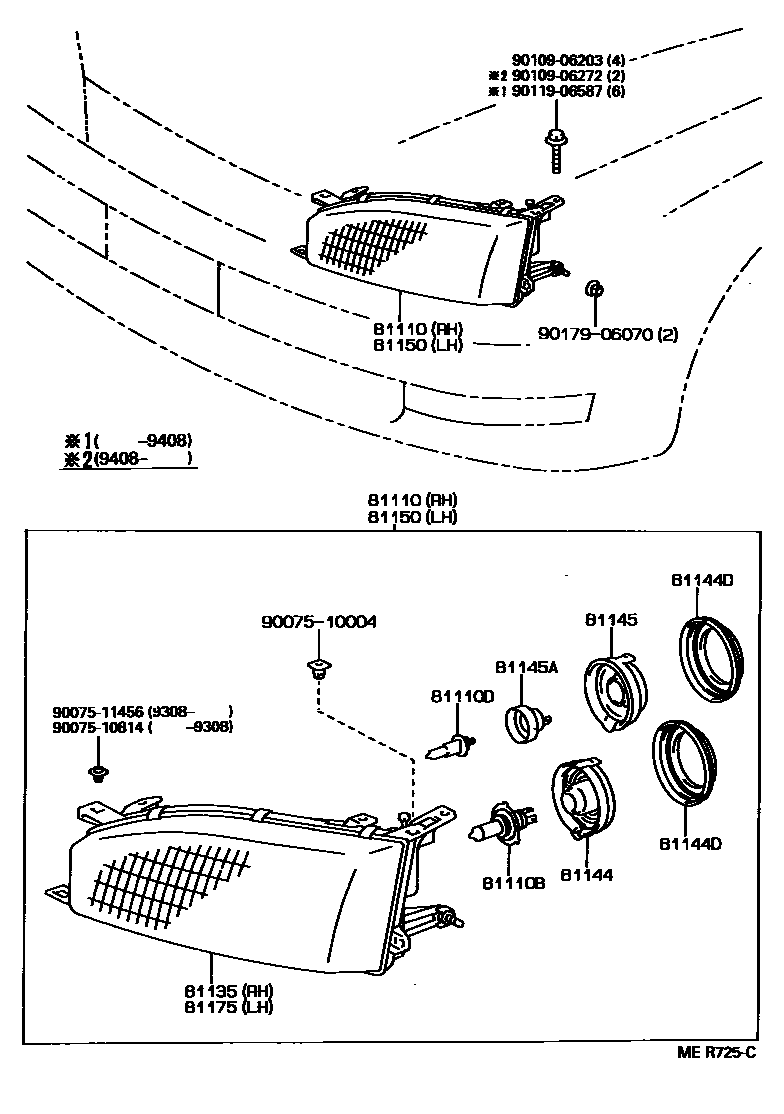

HEADLAMP
81110HEADLAMP ASSY, RH
*FRG OR FINLAND SPEC
81110BBULB(FOR HEADLAMP, NO.1)
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,*HAL *WH
81135UNIT ASSY, HEADLAMP, RH
*FRG OR FINLAND SPEC
81144COVER, HEADLAMP, NO.1
81144DCAP, HEADLAMP LOCKING
81145COVER, HEADLAMP, NO.2
81145AADAPTER ASSY
81150HEADLAMP ASSY, LH
*FRG OR FINLAND SPEC
81175UNIT ASSY, HEADLAMP, LH
*FRG OR FINLAND SPEC
9007510004
main90075-10004
9007510814
main90075-10814
9007511456
main90075-11456
9010906203
main90109-06203
9010906272
main90109-06272
9011906587
main90119-06587
9017906070
main90179-06070
17 parts on this diagram · 1 diagram in section
