MUDGUARD & SPOILER

5302

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-39225iSXV10,VCV10..NAP199203-199607

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-39225iSXV10,VCV10..NAP199203-199607

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-39365iSXV10,VCV10..NAP199203-199607

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-39365iSXV10,VCV10..NAP199203-199607

9015960414

main90159-60414

9016460024

main90164-60024

9016460025

main90164-60025

9018906048

main90189-06048

9018906157

main90189-06157

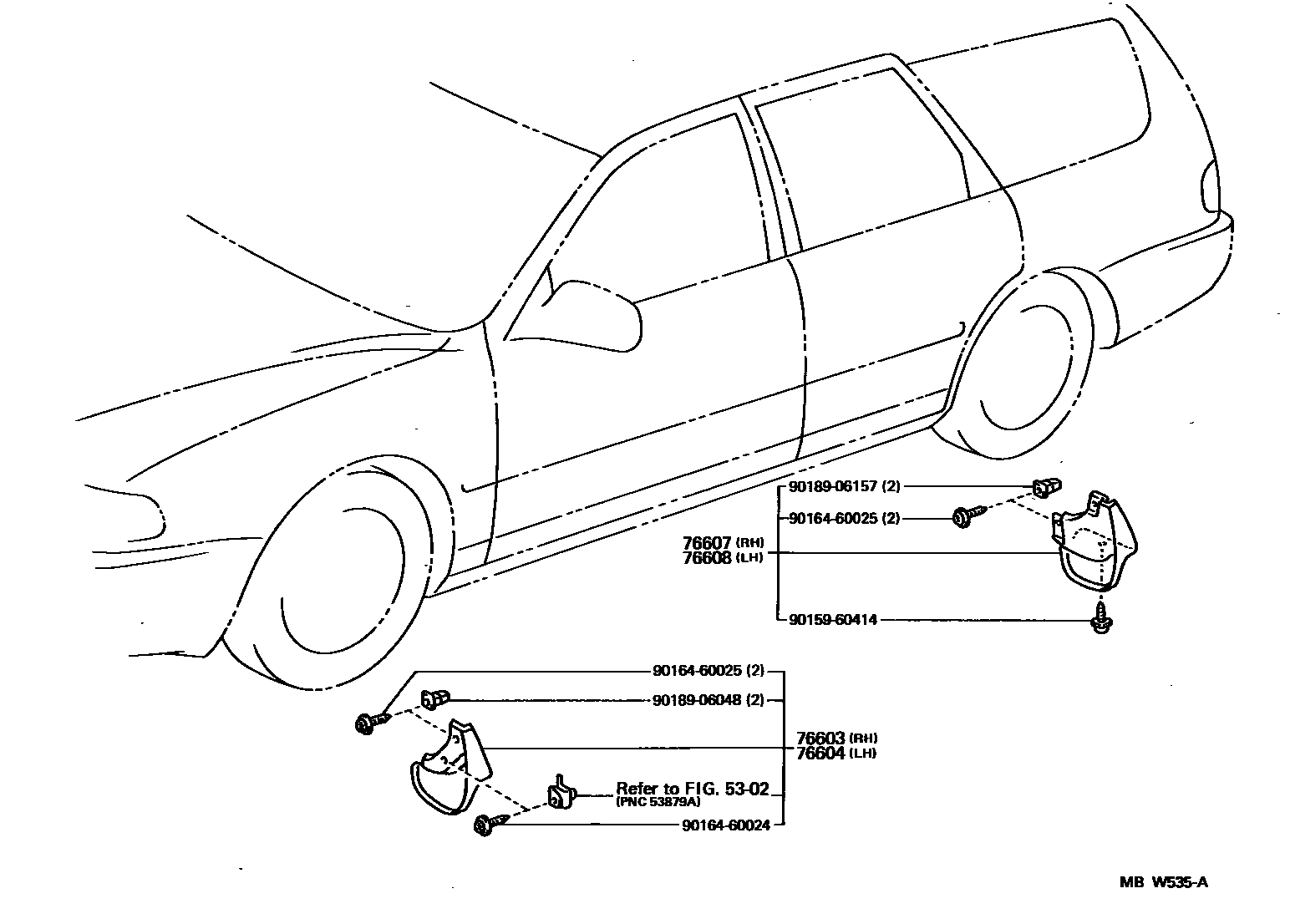

10 parts on this diagram · 1 diagram in section
