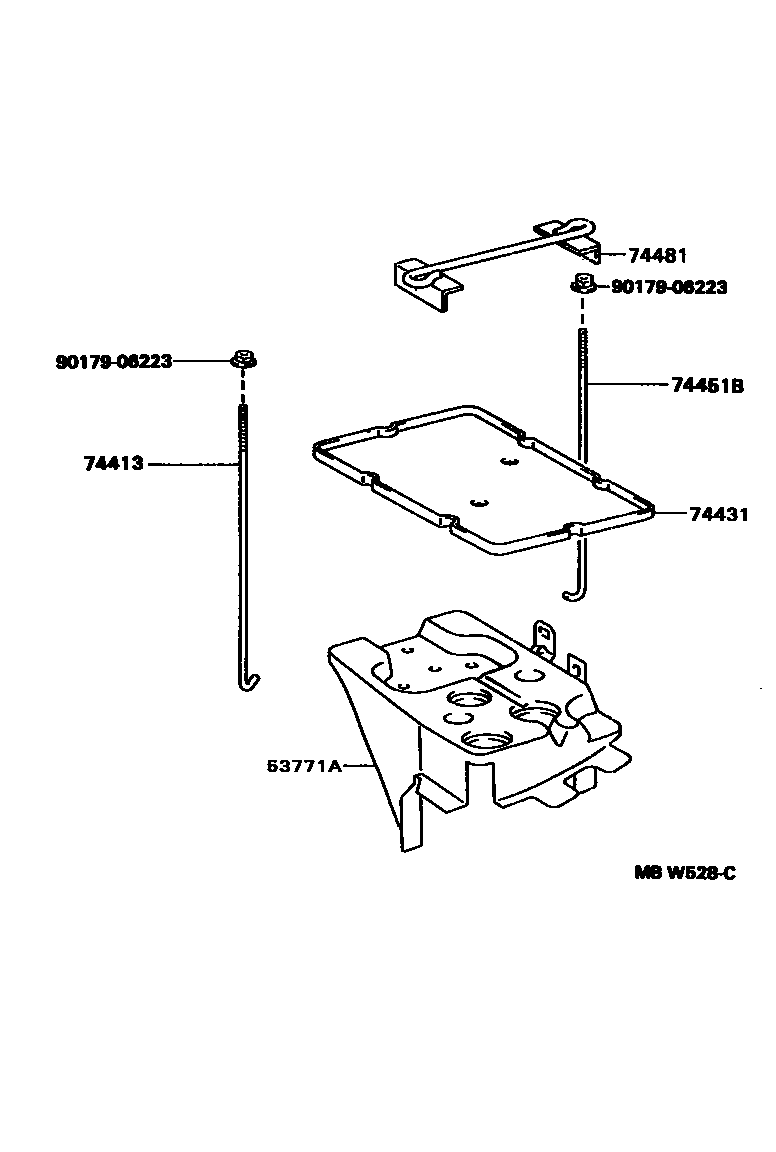

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53704-33010iSXV10,VCV10..NAP199203-199607

sub53704-33011

74413BOLT, BATTERY CLAMP

main74451-06010iSXV10,VCV10..NAP199203-199607

sub74451-06011

74431TRAY, BATTERY

main74431-06010iSXV10,VCV10..NAP199203-199607

sub74431-08010

74451BBOLT, BATTERY CLAMP

main74452-06010iSXV10,VCV10..NAP199203-199607

74481CLAMP, BATTERY HOLD DOWN

main74404-06010iSXV10,VCV10..NAP199203-199309

main74404-AA010iSXV10,VCV10..NAP199309-199607

9017906223

main90179-06223

6 parts on this diagram · 1 diagram in section
