ARMREST & VISOR

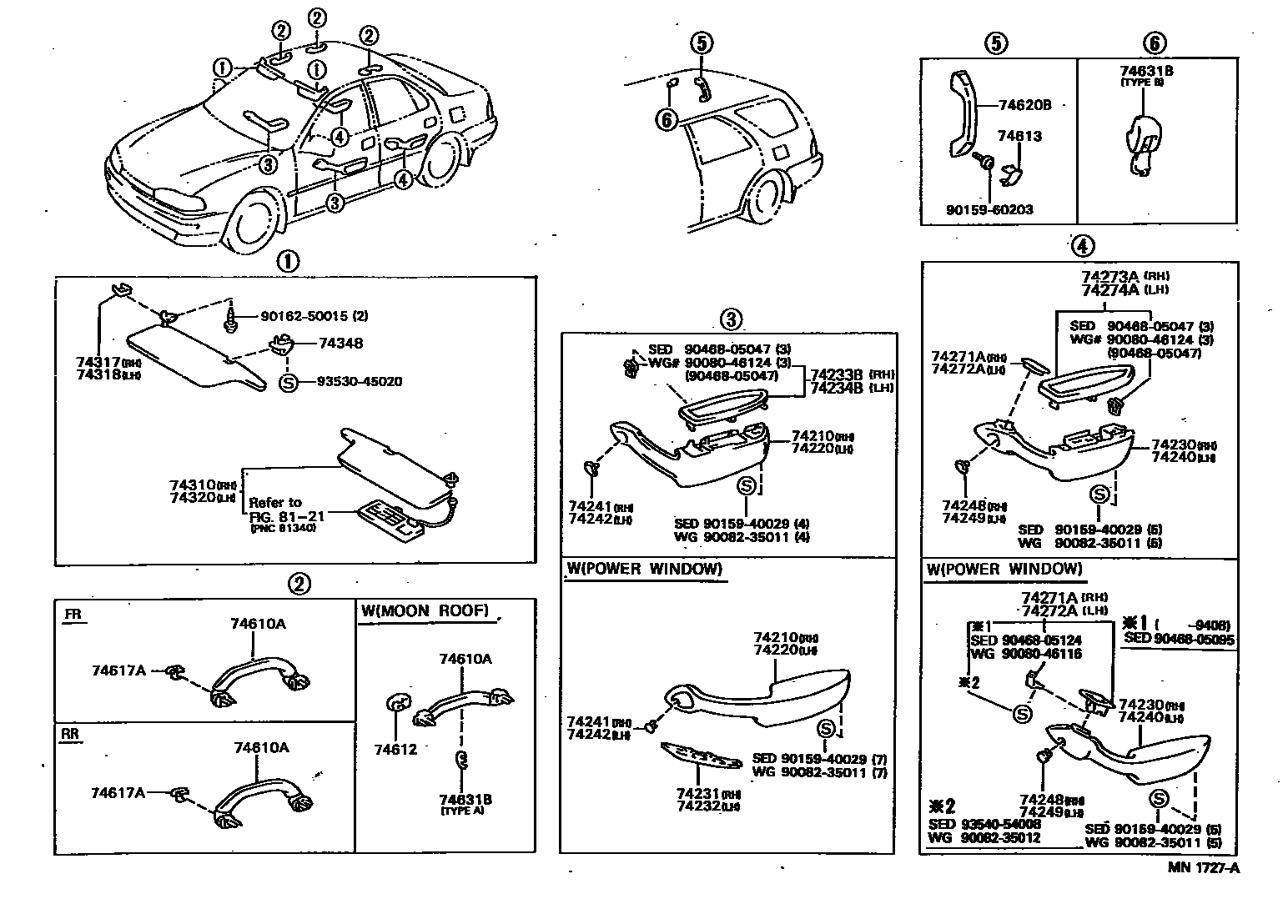

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-06010-B0i199203-199309
W(TWEETER SPEAKER),MEDIUM GRAY,TRIM1#
main74210-06010-J0i199203-199309
W(TWEETER SPEAKER),DARK BLUE,TRIM8#
main74210-06020-B0i199203-199309
MEDIUM GRAY,TRIM1#
main74210-06020-J0i199203-199309
W(POWER WINDOW),DARK BLUE,TRIM8#
main74210-06040-B0i199309-199607
W(TWEETER SPEAKER),MEDIUM GRAY,TRIM1#
main74210-06040-E0i199309-199607
W(TWEETER SPEAKER),OAK,TRIM4#
main74210-06050-B0i199309-199408
W(POWER WINDOW),MEDIUM GRAY,TRIM1#
main74210-06050-E0i199408-199607
W(POWER WINDOW),OAK,TRIM4#
main74210-06060-B0i199309-199607
MEDIUM GRAY,TRIM1#
main74210-06060-E0i199309-199607
OAK,TRIM4#
main74233-06010-B0i199203-199309
MEDIUM GRAY,TRIM1#
main74233-06010-J0i199203-199309
DARK BLUE,TRIM8#
74220ARMREST ASSY, FRONT, LH
main74220-06010-B0i199203-199309
W(TWEETER SPEAKER),MEDIUM GRAY,TRIM1#
main74220-06010-J0i199203-199309
W(TWEETER SPEAKER),DARK BLUE,TRIM8#
main74220-06020-B0i199203-199309
MEDIUM GRAY,TRIM1#
main74220-06020-J0i199203-199309
W(POWER WINDOW),DARK BLUE,TRIM8#
main74220-06040-B0i199309-199607
W(TWEETER SPEAKER),MEDIUM GRAY,TRIM1#
main74220-06040-E0i199309-199607
W(TWEETER SPEAKER),OAK,TRIM4#
main74220-06050-B0i199309-199607
MEDIUM GRAY,TRIM1#
main74220-06050-E0i199408-199607
W(POWER WINDOW),OAK,TRIM4#
main74220-06060-B0i199508-199607
MEDIUM GRAY,TRIM1#
main74220-06060-E0i199309-199607
OAK,TRIM4#
main74234-06010-B0i199203-199309
MEDIUM GRAY,TRIM1#
main74234-06010-J0i199203-199309
DARK BLUE,TRIM8#
74230ARMREST ASSY, REAR, RH
main74250-06020-B0i199203-199309
MEDIUM GRAY,TRIM1#
main74250-06020-J0i199203-199309
W(POWER WINDOW),DARK BLUE,TRIM8#
main74250-06030-B0i199309-199607
MEDIUM GRAY,TRIM1#
main74250-06030-E0i199309-199607
OAK,TRIM4#
main74273-06010-B0i199203-199309
MEDIUM GRAY,TRIM1#
main74273-06010-J0i199203-199309
DARK BLUE,TRIM8#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-32150-B0i199203-199408
MEDIUM GRAY,TRIM1#
main74231-32150-E0i199309-199408
OAK,TRIM4#
main74231-32150-J0i199203-199309
DARK BLUE,TRIM8#
main74231-33050-B0i199408-199607
MD.GRAY,TRIM1#
main74231-33050-E0i199408-199607
OAK,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-06010-B0i199203-199408
MEDIUM GRAY,TRIM1#
main74232-06010-E0i199309-199408
OAK,TRIM4#
main74232-06010-J0i199203-199309
DARK BLUE,TRIM8#
main74232-06011-B0i199408-199607
MD.GRAY,TRIM1#
main74232-06011-E0i199408-199607
OAK,TRIM4#
74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH
main74210-06030-B0i199203-199309
MEDIUM GRAY,TRIM1#
main74210-06030-J0i199203-199309
DARK BLUE,TRIM8#
74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH
main74220-06030-B0i199203-199309
MEDIUM GRAY,TRIM1#
main74220-06030-J0i199203-199309
DARK BLUE,TRIM8#
74240ARMREST ASSY, REAR, LH
main74260-06020-B0i199203-199309
MEDIUM GRAY,TRIM1#
main74260-06020-J0i199203-199309
W(POWER WINDOW),DARK BLUE,TRIM8#
main74260-06030-B0i199309-199607
MEDIUM GRAY,TRIM1#
main74260-06030-E0i199309-199607
OAK,TRIM4#
main74274-06010-B0i199203-199309
MEDIUM GRAY,TRIM1#
main74274-06010-J0i199203-199309
DARK BLUE,TRIM8#
74241PLUG, FRONT DOOR ARMREST, RH
main74241-06010-B0i199309-199408
MEDIUM GRAY,TRIM1#
main74241-06010-E0i199408-199607
OAK,TRIM4#
main74241-06010-J0i199203-199309
DARK BLUE,TRIM8#
main74241-06020-B0i199203-199309
MEDIUM GRAY,TRIM1#
main74241-06020-J0i199203-199309
DARK BLUE,TRIM8#
74242PLUG, FRONT DOOR ARMREST, LH
main74242-06010-B0i199309-199408
MEDIUM GRAY,TRIM1#
main74242-06010-E0i199408-199607
OAK,TRIM4#
main74242-06010-J0i199203-199309
DARK BLUE,TRIM8#
main74242-06020-B0i199203-199309
MEDIUM GRAY,TRIM1#
main74242-06020-J0i199203-199309
DARK BLUE,TRIM8#
74248PLUG, REAR DOOR ARMREST, RH
main74248-06010-B0i199203-199309
MEDIUM GRAY,TRIM1#
main74248-06010-J0i199203-199309
DARK BLUE,TRIM8#
main74248-06020-B0i199209-199309
MEDIUM GRAY,TRIM1#
main74248-06020-E0i199309-199607
OAK,TRIM4#
main74248-06020-J0i199203-199309
DARK BLUE,TRIM8#
74249PLUG, REAR DOOR ARMREST, LH
main74249-06010-B0i199203-199309
MEDIUM GRAY,TRIM1#
main74249-06010-J0i199203-199309
DARK BLUE,TRIM8#
main74249-06020-B0i199408-199607
W(POWER WINDOW),MEDIUM GRAY,TRIM1#
main74249-06020-E0×2i199309-199607
OAK,TRIM4#
main74249-06020-J0i199203-199309
DARK BLUE,TRIM8#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-06010-B0i199203-199212
MEDIUM GRAY,TRIM1#
main74271-06010-E0i199309-199607
OAK,TRIM4#
main74271-06010-J0i199203-199309
W(POWER WINDOW),DARK BLUE,TRIM8#
main74271-06020-B0i199203-199607
MEDIUM GRAY,TRIM1#
main74271-06020-E0i199309-199607
OAK,TRIM4#
main74271-06020-J0i199203-199309
DARK BLUE,TRIM8#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-06010-B0i199309-199607
MEDIUM GRAY,TRIM1#
main74272-06010-E0i199309-199607
OAK,TRIM4#
main74272-06010-J0i199203-199309
W(POWER WINDOW),DARK BLUE,TRIM8#
main74272-06020-B0i199203-199607
MEDIUM GRAY,TRIM1#
main74272-06020-E0i199309-199607
OAK,TRIM4#
main74272-06020-J0i199203-199309
DARK BLUE,TRIM8#
74273APANEL, REAR DOOR ARMREST BASE, LOWER RH
main74250-06010-B0i199203-199309
MEDIUM GRAY,TRIM1#
main74250-06010-J0i199203-199309
DARK BLUE,TRIM8#
74274APANEL, REAR DOOR ARMREST BASE, LOWER LH
main74260-06010-B0i199203-199309
MEDIUM GRAY,TRIM1#
main74260-06010-J0i199203-199309
DARK BLUE,TRIM8#
74310VISOR ASSY, RH
main74310-33010-B0i199203-199607
LIGHT GRAY,TRIM1#
main74310-33010-E0i199309-199607
LIGHT OAK,TRIM4#
main74310-33010-J0i199203-199309
LIGHT BLUE,TRIM8#
main74310-33170-B0i199203-199607
SWEDEN SPEC,LIGHT GRAY,TRIM1#
main74310-33170-E0i199309-199607
SWEDEN SPEC,LIGHT OAK,TRIM4#
main74310-33170-J0i199203-199309
SWEDEN SPEC,LIGHT BLUE,TRIM8#
main74310-33250-B0i199203-199607
SWEDEN SPEC,LIGHT GRAY,TRIM1#
sub74310-33070
main74310-33250-E0i199309-199607
LIGHT OAK,TRIM4#
sub74310-33070
main74310-33250-J0i199203-199309
SWEDEN SPEC,LT.BLUE,TRIM8#
sub74310-33070
main74310-33260-B0i199203-199607
SWEDEN SPEC & ((W(MOON ROOF) OR W(MOON ROOF & *80))),LIGHT GRAY,TRIM1#
sub74310-33080
sub74310-33060
main74310-33260-E0i199309-199607
W(MOON ROOF),LIGHT OAK,TRIM4#
sub74310-33080
sub74310-33060
main74310-33260-J0i199203-199309
W(MOON ROOF),LT.BLUE,TRIM8#
sub74310-33080
sub74310-33060
main74310-33270-B0i199203-199607
LIGHT GRAY,TRIM1#
sub74310-33070
main74310-33270-E0i199309-199607
LIGHT OAK,TRIM4#
sub74310-33070
main74310-33270-J0i199203-199309
LT.BLUE,TRIM8#
sub74310-33070
main74310-33280-B0i199203-199607
W(MOON ROOF),LIGHT GRAY,TRIM1#
sub74310-33080
main74310-33280-E0i199309-199607
W(MOON ROOF),LIGHT OAK,TRIM4#
sub74310-33080
main74310-33280-J0i199203-199309
W(MOON ROOF),LT.BLUE,TRIM8#
sub74310-33080
main74310-33290-B0i199203-199607
W(*80),LIGHT GRAY,TRIM1#
sub74310-33100
main74310-33290-E0i199309-199607
W(*80),LIGHT OAK,TRIM4#
sub74310-33100
main74310-33290-J0i199203-199309
W(*80),LT.BLUE,TRIM8#
sub74310-33100
main74310-33300-B0i199203-199607
W(MOON ROOF & *80),LIGHT GRAY,TRIM1#
sub74310-33110
main74310-33300-E0i199309-199607
W(MOON ROOF & *80),LIGHT OAK,TRIM4#
sub74310-33110
main74310-33300-J0i199203-199309
W(MOON ROOF & *80),LT.BLUE,TRIM8#
sub74310-33110
74317COVER, VISOR BRACKET, RH
main74317-06010-B0i199203-199607
LIGHT GRAY,TRIM1#
main74317-06010-E0i199309-199607
LIGHT OAK,TRIM4#
main74317-06010-J0i199203-199309
LIGHT BLUE,TRIM8#
74318COVER, VISOR BRACKET, LH
main74317-06010-B0i199203-199607
LIGHT GRAY,TRIM1#
main74317-06010-E0i199309-199607
LIGHT OAK,TRIM4#
main74317-06010-J0i199203-199309
LIGHT BLUE,TRIM8#
74320VISOR ASSY, LH
main74320-33050-B0i199203-199607
LIGHT GRAY,TRIM1#
main74320-33050-E0i199309-199607
LIGHT OAK,TRIM4#
main74320-33050-J0i199203-199309
LIGHT BLUE,TRIM8#
main74320-33180-B0i199203-199607
W(*80),LIGHT GRAY,TRIM1#
main74320-33180-E0i199309-199607
W(*80),LIGHT OAK,TRIM4#
main74320-33180-J0i199203-199309
W(*80),LIGHT BLUE,TRIM8#
main74320-33250-B0i199203-199607
LIGHT GRAY,TRIM1#
sub74320-33100
sub74320-33080
main74320-33250-E0i199309-199607
LIGHT OAK,TRIM4#
sub74320-33100
sub74320-33080
main74320-33250-J0i199203-199309
LT.BLUE,TRIM8#
sub74320-33100
sub74320-33080
main74320-33260-B0i199203-199607
W(MOON ROOF),LIGHT GRAY,TRIM1#
sub74320-33110
sub74320-33090
main74320-33260-E0i199309-199607
W(MOON ROOF),LIGHT OAK,TRIM4#
sub74320-33110
sub74320-33090
main74320-33260-J0i199203-199309
W(MOON ROOF),LT.BLUE,TRIM8#
sub74320-33110
sub74320-33090
main74320-33270-B0i199203-199607
LIGHT GRAY,TRIM1#
sub74320-33100
main74320-33270-E0i199309-199607
LIGHT OAK,TRIM4#
sub74320-33100
main74320-33270-J0i199203-199309
LT.BLUE,TRIM8#
sub74320-33100
main74320-33280-B0i199203-199607
W(MOON ROOF),LIGHT GRAY,TRIM1#
sub74320-33110
main74320-33280-E0i199309-199607
W(MOON ROOF),LIGHT OAK,TRIM4#
sub74320-33110
main74320-33280-J0i199203-199309
W(MOON ROOF),LT.BLUE,TRIM8#
sub74320-33110
main74320-33290-B0i199203-199607
W(*80),LIGHT GRAY,TRIM1#
sub74320-33130
main74320-33290-E0i199309-199607
W(*80),LIGHT OAK,TRIM4#
sub74320-33130
main74320-33290-J0i199203-199309
W(*80),LT.BLUE,TRIM8#
sub74320-33130
main74320-33300-B0i199203-199607
((SWEDEN SPEC & W(MOON ROOF & *80))) OR W(MOON ROOF & *80),LIGHT GRAY,TRIM1#
sub74320-33140
main74320-33300-E0i199309-199607
((SWEDEN SPEC & W(MOON ROOF & *80))) OR W(MOON ROOF & *80),LIGHT OAK,TRIM4#
sub74320-33140
main74320-33300-J0i199203-199309
((SWEDEN SPEC & W(MOON ROOF & *80))) OR W(MOON ROOF & *80),LT.BLUE,TRIM8#
sub74320-33140
74348HOLDER, VISOR
main74348-06010-B0×2i199203-199607
LIGHT GRAY,TRIM1#
main74348-06010-E0×2i199309-199607
LIGHT OAK,TRIM4#
main74348-06010-J0×2i199203-199309
LIGHT BLUE,TRIM8#
74610AGRIP SUB-ASSY, ASSIST
main74610-22070-B0×3i199203-199607
W(MOON ROOF),LIGHT GRAY,TRIM1#
sub74610-33060
main74610-22070-E1×3i199309-199607
W(MOON ROOF),LIGHT OAK,TRIM4#
sub74610-33060
main74610-22070-J0×3i199203-199309
W(MOON ROOF),LIGHT BLUE,TRIM8#
sub74610-33060
main74610-32070-B0i199203-199412
LIGHT GRAY,TRIM1#,FR
main74610-32070-E0i199309-199412
LIGHT OAK,TRIM4#,FR
main74610-32070-J0i199203-199309
LIGHT BLUE,TRIM8#,FR
main74610-33010-B0×2i199203-199412
LIGHT GRAY,TRIM1#,RR
main74610-33010-E0×2i199309-199412
LIGHT OAK,TRIM4#,RR
main74610-33010-J0×2i199203-199309
LIGHT BLUE,TRIM8#,RR
main74610-AC010-B1i199412-199607
LT.GRAY,TRIM1#,FR
main74610-AC010-E2i199412-199607
LT.OAK,TRIM4#,FR
main74610-AC020-B1×2i199412-199607
LT.GRAY,TRIM1#,RR
main74610-AC020-E2×2i199412-199607
LT.OAK,TRIM4#,RR
74612COVER, ASSIST GRIP
main74612-22050-B0×6i199203-199607
LIGHT GRAY,TRIM1#
sub74612-20050
main74612-22050-E2×6i199309-199607
LIGHT OAK,TRIM4#
sub74612-20050
main74612-22050-J0×6i199203-199309
LIGHT BLUE,TRIM8#
sub74612-20050
74613PLUG, ASSIST GRIP
main74617-16020-B0×2i199203-199607
MEDIUM GRAY,TRIM1#
main74617-16020-E1×2i199309-199607
OAK,TRIM4#
main74617-16020-J0×2i199203-199309
DARK BLUE,TRIM8#
74617APLUG, ASSIST GRIP
main74617-32010-B0×6i199203-199412
LIGHT GRAY,TRIM1#
main74617-32010-E0×6i199309-199412
LIGHT OAK,TRIM4#
main74617-32010-J0×6i199203-199309
LIGHT BLUE,TRIM8#
main74617-AC010-B1×6i199412-199607
LT.GRAY,TRIM1#
main74617-AC010-E2×6i199412-199607
LT.OAK,TRIM4#
74620BGRIP ASSY, ASSIST, REAR
main74610-16020-B0i199203-199607
MEDIUM GRAY,TRIM1#
sub74610-10020
sub74617-14010
main74610-16020-E1i199309-199607
OAK,TRIM4#
sub74610-10020
sub74617-14010
main74610-16020-J0i199203-199309
DARK BLUE,TRIM8#
sub74610-10020
sub74617-14010
74631BHOOK, COAT
main74631-22030-B0×2i199203-199408
W(MOON ROOF),LIGHT GRAY,TRIM1#,TYPE A
main74631-22030-E0×2i199309-199408
W(MOON ROOF),LIGHT OAK,TRIM4#,TYPE A
main74631-22030-E1×2i199408-199508
W(MOON ROOF),LT.OAK,TRIM4#,RR DOOR
main74631-22030-J0×2i199203-199309
W(MOON ROOF & 3RD SEAT),LIGHT BLUE,TRIM8#
main74631-32010-B0×2i199203-199607
LIGHT GRAY,TRIM1#
sub74631-14010
main74631-32010-E0×2i199309-199607
LIGHT OAK,TRIM4#
sub74631-14010
main74631-32010-J0×2i199203-199309
W(MOON ROOF),LIGHT BLUE,TRIM8#,TYPE B
sub74631-14010
8121
9008046116
main90080-46116
9008046124
main90080-46124
9008235011
main90082-35011
9008235012
main90082-35012
9015940029
main90159-40029
9015960203
main90159-60203
9016250015
main90162-50015
9046805047
main90468-05047
9046805095
main90468-05095
9046805124
main90468-05124
9353045020
main93530-45020
9354054008
main93540-54008

40 parts on this diagram · 1 diagram in section

ARMREST & VISOR — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
