SEAT BELT & CHILD RESTRAINT SEAT
72895ACASE, REAR SEAT BELT, RH
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
DARK BLUE,TRIM8#
72896CASE, RR SEAT BELT, LH
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
DARK BLUE,TRIM8#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
DARK BLUE,TRIM8#
73210BELT ASSY, FRONT SEAT OUTER, RH
MEDIUM GRAY,TRIM1#
SHADOW GRAY,TRIM1#
OAK,TRIM4#
DARK BLUE,TRIM8#
MD.GRAY,TRIM1#
OAK,TRIM4#
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
MEDIUM GRAY,TRIM1#
SHADOW GRAY,TRIM1#
OAK,TRIM4#
DARK BLUE,TRIM8#
MD.GRAY,TRIM1#
OAK,TRIM4#
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
MD.GRAY,TRIM1#
OAK,TRIM4#
MD.GRAY,TRIM1#
OAK,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
MD.GRAY,TRIM1#
OAK,TRIM4#
MD.GRAY,TRIM1#
OAK,TRIM4#
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73371HANGER, REAR SEAT SHOULDER BELT, RH
73372HANGER, REAR SEAT SHOULDER BELT, LH
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73560BELT ASSY, REAR NO.2 SEAT, OUTER RH
73570BELT ASSY, REAR NO.2 SEAT, OUTER LH
73580ABELT SUB ASSY, REAR NO.2 SEAT, INNER
827113H550WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3H550
9008235015
main90082-35015
9011911021
main90119-11021
9161161020
main91611-61020
9165160616
main91651-60616
9165161020
main91651-61020
9354054020
main93540-54020

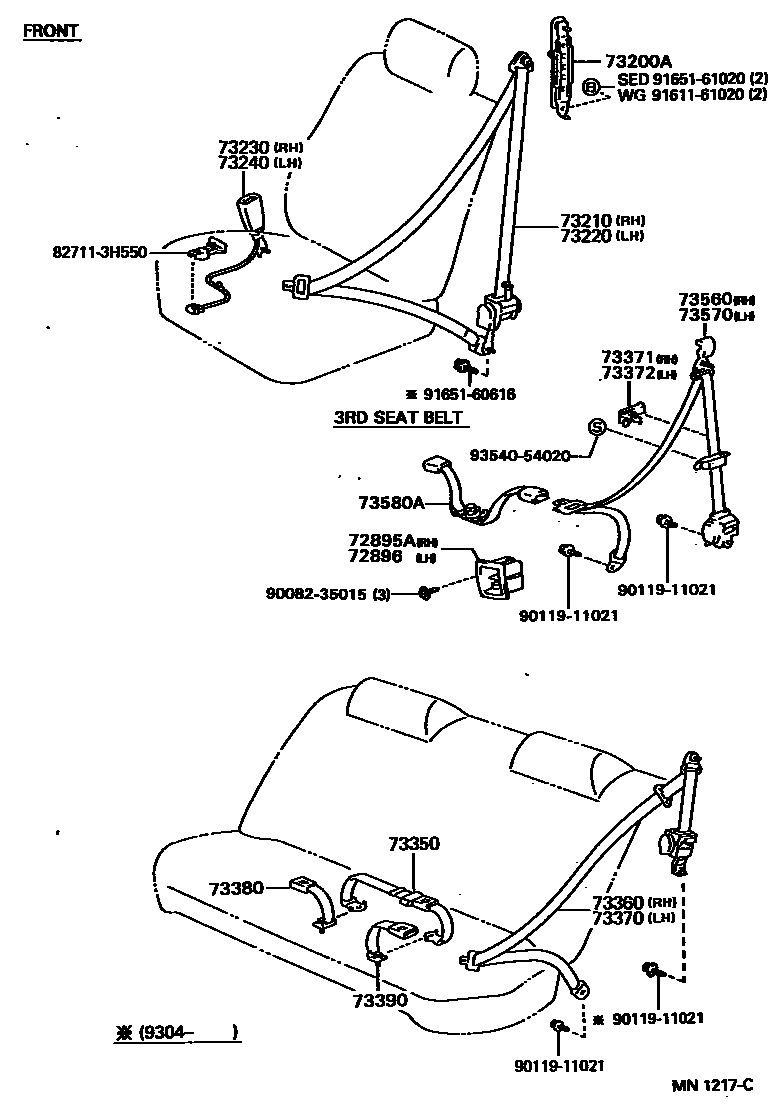

24 parts on this diagram · 1 diagram in section
