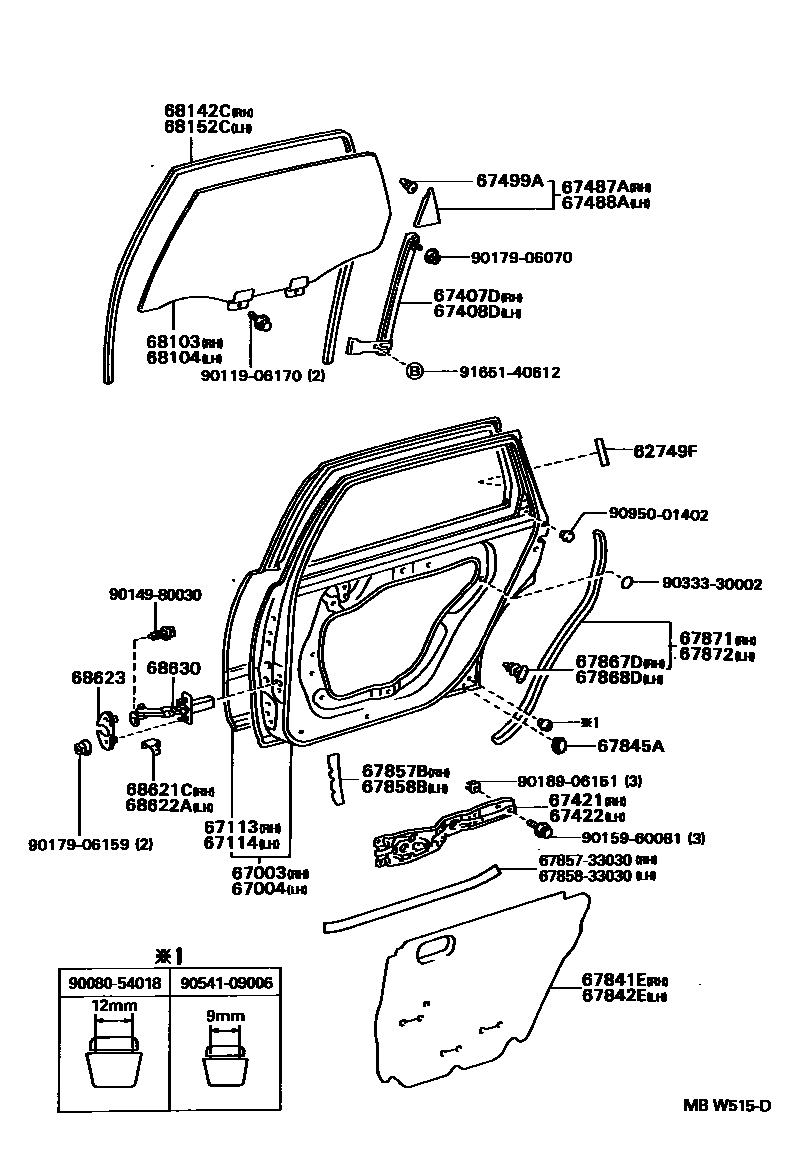

REAR DOOR PANEL & GLASS
62749FSEAL, REAR DOOR FRAME
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67421FRAME, REAR DOOR WINDOW, FRONT UPPER RH
67422FRAME, REAR DOOR WINDOW, FRONT UPPER LH
67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH
67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH
67499ARETAINER, REAR DOOR LOWER FRAME BRACKET GARNISH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
W(SPEAKER)
W(*PW & SPEAKER)
67842ECOVER, REAR DOOR SERVICE HOLE, LH
W(SPEAKER)
W(*PW & SPEAKER)
67845ASUB-SHEET, REAR DOOR SERVICE HOLE
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.5,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.5, GREEN
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68621CCOVER, REAR DOOR CHECK, RH
68622ACOVER, REAR DOOR CHECK, LH
68623COVER, DOOR CHECK, RH
68630CHECK ASSY, REAR DOOR
RH
W(DOOR CHECK COVER),RH
RH
LH
LH
LH
6785733030COVER, FRONT DOOR SERVICE HOLE, NO.1
6785833030COVER, FRONT DOOR HINGE SERVICE HOLE, NO.2
9008054018
9011906170
9014980030
9015960081
9017906070
9017906159
9018906151
9033330002
9054109006
9095001402
9165140612
42 parts on this diagram · 2 diagrams in section
