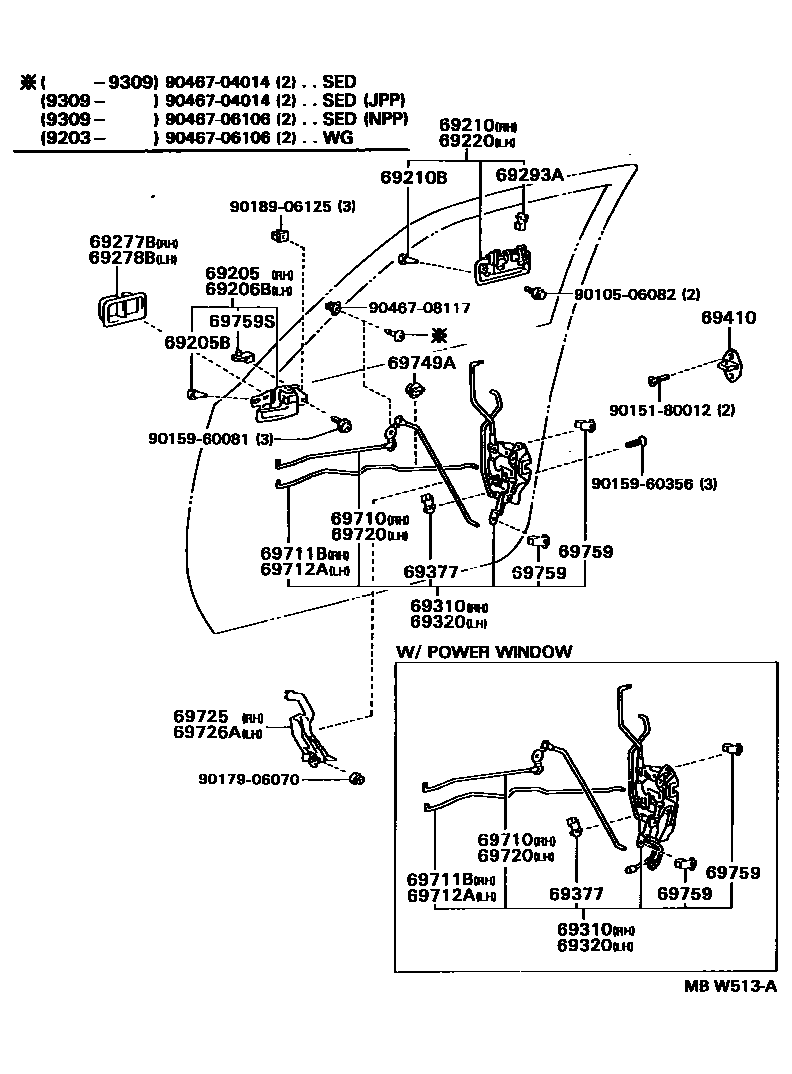

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-06010-B0iSXV10,VCV10..NAP199203-199309

MEDIUM GRAY,TRIM1#

main69205-06010-J0iSXV10,VCV10..NAP199203-199309

DARK BLUE,TRIM8#

main69205-06011-B0iSXV10,VCV10..NAP199309-199607

MEDIUM GRAY,TRIM1#

main69205-06011-E0iSXV10,VCV10..NAP199309-199607

OAK,TRIM4#

main69205-32070-S4iSXV10,VCV10..NAP199203-199212

MEDIUM GRAY,TRIM1#

main69205-32070-W3iSXV10,VCV10..NAP199203-199212

DARK BLUE,TRIM8#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90080-54005×2iSXV10,VCV10..NAP199203-199607

main90541-04014×2iSXV10,VCV10..NAP199203-199212

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-06010-B0iSXV10,VCV10..NAP199203-199309

MEDIUM GRAY,TRIM1#

main69206-06010-J0iSXV10,VCV10..NAP199203-199309

DARK BLUE,TRIM8#

main69206-06011-B0iSXV10,VCV10..NAP199309-199607

MEDIUM GRAY,TRIM1#

main69206-06011-E0iSXV10,VCV10..NAP199309-199607

OAK,TRIM4#

main69206-32070-S4iSXV10,VCV10..NAP199203-199212

MEDIUM GRAY,TRIM1#

sub69206-32071

main69206-32070-W3iSXV10,VCV10..NAP199203-199212

DARK BLUE,TRIM8#

sub69206-32071

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-06010iSXV10..NAP199203-199309

main69210-06020-A1iSXV10,VCV10..NAP..(GL,GX)199502-199607

SUPER WHITE 2,040

main69210-06020-B1iSXV10,VCV10..NAP..(GL,GX)199502-199607

BLUISH SILVER ME.,1A0

main69210-06020-D3iSXV10,VCV10..NAP..(GL,GX)199502-199607

SU.RED 3,3J6

main69210-06020-D4iSXV10,VCV10..NAP..(GL,GX)199502-199508

RED MM,3K4

main69210-06020-D5iSXV10,VCV10..NAP..(GL,GX)199508-199607

MAGENTA MC.,3L3

main69210-06020-E1iSXV10,VCV10..NAP..(GL,GX)199502-199607

BEIGE ME.,4M9

main69210-06020-G2iSXV10,VCV10..NAP..(GL,GX)199502-199607

GREENISH SILVER M.M,6L3

main69210-06020-G3iSXV10,VCV10..NAP..(GL,GX)199502-199508

DK GREEN MICA,6M1

main69210-06020-G4iSXV10,VCV10..NAP..(GL,GX)199508-199607

DK.GREEN M.M.,6P2

main69210-06020-J2iSXV10,VCV10..NAP..(GL,GX)199502-199607

DK.BLUE M.M.,8K0

main69210-06020-K1iSXV10,VCV10..NAP..(GL,GX)199502-199607

GRAYISH PURPLE M,923

main69210-32090-A0iVCV10..NAP199203-199209

SUPER WHITE 2,040

main69210-32090-B0iVCV10..NAP199203-199209

SUPER SILVER 3 M,176

main69210-32090-D0iVCV10..NAP199203-199209

RED MICA M,3J9

main69210-32090-D2iVCV10..NAP199203-199209

SUPER RED 3,3J6

main69210-32090-E0iVCV10..NAP199203-199209

BEIGE MICA M,4J1

main69210-32090-G0iVCV10..NAP199203-199209

DARK GREEN MICA,6M1

main69210-32090-J0iVCV10..NAP199203-199209

LIGHT BLUE MICA M,8G2

main69210-32090-J1iVCV10..NAP199203-199209

DARK BLUE MICA,8J4

main69210-32090-K0iVCV10..NAP199203-199209

GRAYISH PURPLE M,923

main69210-32091-A0iVCV10..NAP199209-199309

SUPER WHITE 2,040

main69210-32091-A1iSXV10,VCV10..NAP..(GL,GX)199408-199607

SUPER WHITE 2,040

main69210-32091-B0iVCV10..NAP199209-199309

SUPER SILVER 3M,176

main69210-32091-B3iSXV10,VCV10..NAP..(GL,GX)199309-199409

BLUISH SILVER ME,1A0

main69210-32091-B6iSXV10,VCV10..NAP..(GL,GX)199408-199607

BLUISH SILVER ME.,1A0

main69210-32091-D2iVCV10..NAP199209-199309

SUPER RED 3,3J6

main69210-32091-D3iVCV10..NAP199209-199309

RED MICA ME,3K4

main69210-32091-D4iSXV10,VCV10..NAP..(GL,GX)199408-199607

SU.RED 3,3J6

main69210-32091-D5iSXV10,VCV10..NAP..(GL,GX)199408-199508

RED MM,3K4

main69210-32091-D8iSXV10,VCV10..NAP..(GL,GX)199508-199607

MAGENTA MC.,3L3

main69210-32091-E0iVCV10..NAP199209-199309

BEIGE MICA ME,4J1

main69210-32091-E4iSXV10,VCV10..NAP..(GL,GX)199309-199409

BEIGE ME,4M9

main69210-32091-E5iSXV10,VCV10..NAP..(GL,GX)199408-199607

BEIGE ME.,4M9

main69210-32091-G0iSXV10,VCV10..NAP..(GL,GX)199309-199409

DARK GREEN ME,6M1

main69210-32091-G2iSXV10,VCV10..NAP..(GL,GX)199408-199508

DK GREEN MICA,6M1

main69210-32091-G3iSXV10,VCV10..NAP..(GL,GX)199309-199409

GREENISH SILVER ME,6L3

main69210-32091-G4iSXV10,VCV10..NAP..(GL,GX)199408-199607

GREENISH SILVER M.M,6L3

main69210-32091-G5iSXV10,VCV10..NAP..(GL,GX)199508-199607

DK.GREEN M.M.,6P2

main69210-32091-J1iVCV10..NAP199209-199309

DARK BLUE MICA,8J4

main69210-32091-J2iSXV10,VCV10..NAP..(GL,GX)199309-199409

LT.BLUE MICA ME,8J6

main69210-32091-J5iSXV10,VCV10..NAP..(GL,GX)199309-199409

DK BLUE M.M,8K0

main69210-32091-J7iSXV10,VCV10..NAP..(GL,GX)199408-199607

DK.BLUE M.M.,8K0

main69210-32091-K0iSXV10,VCV10..NAP..(GL,GX)199309-199409

GRAYISH PUPLE ME,923

main69210-32091-K1iSXV10,VCV10..NAP..(GL,GX)199408-199607

GRAYISH PURPLE M,923

main69210-33010iSXV10..NAP199203-199212

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90080-54005×4iSXV10..NAP..XL199309-199607

main90541-04014×4iVCV10..NAP199212-199309

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-06010iSXV10..NAP199203-199309

main69220-06020-A1iSXV10..NAP..GL;VCV10..NAP..RHD199502-199607

SUPER WHITE 2,040

main69220-06020-B1iSXV10..NAP..GL;VCV10..NAP..RHD199502-199607

BLUISH SILVER ME.,1A0

main69220-06020-D3iSXV10..NAP..GL;VCV10..NAP..RHD199502-199607

SU.RED 3,3J6

main69220-06020-D4iSXV10..NAP..GL;VCV10..NAP..RHD199502-199508

RED MM,3K4

main69220-06020-D5iSXV10..NAP..GL;VCV10..NAP..RHD199508-199607

MAGENTA MC.,3L3

main69220-06020-E1iSXV10..NAP..GL;VCV10..NAP..RHD199502-199607

BEIGE ME.,4M9

main69220-06020-G2iSXV10..NAP..GL;VCV10..NAP..RHD199502-199607

GREENISH SILVER M.M,6L3

main69220-06020-G3iSXV10..NAP..GL;VCV10..NAP..RHD199502-199508

DK GREEN MICA,6M1

main69220-06020-G4iSXV10..NAP..GL;VCV10..NAP..RHD199508-199607

DK.GREEN M.M.,6P2

main69220-06020-J2iSXV10..NAP..GL;VCV10..NAP..RHD199502-199607

DK.BLUE M.M.,8K0

main69220-06020-K1iSXV10..NAP..GL;VCV10..NAP..RHD199502-199607

GRAYISH PURPLE M,923

main69220-06030-A1iVCV10..NAP..LHD199502-199607

SUPER WHITE 2,040

main69220-06030-B1iVCV10..NAP..LHD199502-199607

BLUISH SILVER ME.,1A0

main69220-06030-D2iVCV10..NAP..LHD199502-199607

SU.RED 3,3J6

main69220-06030-D3iVCV10..NAP..LHD199502-199508

RED MM,3K4

main69220-06030-D4iVCV10..NAP..LHD199508-199607

MAGENTA MC.,3L3

main69220-06030-E1iVCV10..NAP..LHD199502-199607

BEIGE ME.,4M9

main69220-06030-G2iVCV10..NAP..LHD199502-199607

GREENISH SILVER M.M,6L3

main69220-06030-G3iVCV10..NAP..LHD199502-199508

DK GREEN MICA,6M1

main69220-06030-G4iVCV10..NAP..LHD199508-199607

DK. GREEN M.M,6P2

main69220-06030-J2iVCV10..NAP..LHD199502-199607

DK.BLUE M.M.,8K0

main69220-06030-K1iVCV10..NAP..LHD199502-199607

GRAYISH PURPLE M,923

main69220-32090-A0iVCV10..NAP199203-199209

SUPER WHITE 2,040

main69220-32090-B0iVCV10..NAP199203-199209

SUPER SILVER 3 M,176

main69220-32090-D0iVCV10..NAP199203-199209

RED MICA M,3J9

main69220-32090-D2iVCV10..NAP199203-199209

SUPER RED 3,3J6

main69220-32090-E0iVCV10..NAP199203-199209

BEIGE MICA M,4J1

main69220-32090-G0iVCV10..NAP199203-199209

DARK GREEN MICA,6M1

main69220-32090-J0iVCV10..NAP199203-199209

LIGHT BLUE MICA M,8G2

main69220-32090-J1iVCV10..NAP199203-199209

DARK BLUE MICA,8J4

main69220-32090-K0iVCV10..NAP199203-199209

GRAYISH PURPLE M,923

main69220-32091-A0iSXV10..NAP..GL;VCV10..NAP..RHD199309-199409

SUPER WHITE 2,040

main69220-32091-A1iSXV10..NAP..GL;VCV10..NAP..RHD199408-199607

SUPER WHITE 2,040

main69220-32091-B0iVCV10..NAP199209-199309

SUPER SILVER 3M,176

main69220-32091-B3iSXV10..NAP..GL;VCV10..NAP..RHD199309-199409

BLUISH SILVER ME,1A0

main69220-32091-B6iSXV10..NAP..GL;VCV10..NAP..RHD199408-199607

BLUISH SILVER ME.,1A0

main69220-32091-D2iVCV10..NAP199209-199309

SUPER RED 3,3J6

main69220-32091-D3iSXV10..NAP..GL;VCV10..NAP..RHD199309-199409

RED MICA ME,3K4

main69220-32091-D4iSXV10..NAP..GL;VCV10..NAP..RHD199408-199607

SU.RED 3,3J6

main69220-32091-D5iSXV10..NAP..GL;VCV10..NAP..RHD199408-199508

RED MM,3K4

main69220-32091-D8iSXV10..NAP..GL;VCV10..NAP..RHD199508-199607

MAGENTA MC.,3L3

main69220-32091-E0iVCV10..NAP199209-199309

BEIGE MICA ME,4J1

main69220-32091-E4iSXV10..NAP..GL;VCV10..NAP..RHD199309-199409

BEIGE ME,4M9

main69220-32091-E5iSXV10..NAP..GL;VCV10..NAP..RHD199408-199607

BEIGE ME.,4M9

main69220-32091-G0iSXV10..NAP..GL;VCV10..NAP..RHD199309-199409

DARK GREEN ME,6M1

main69220-32091-G2iSXV10..NAP..GL;VCV10..NAP..RHD199408-199508

DK GREEN MICA,6M1

main69220-32091-G3iSXV10..NAP..GL;VCV10..NAP..RHD199309-199409

GREENISH SILVER ME,6L3

main69220-32091-G4iSXV10..NAP..GL;VCV10..NAP..RHD199408-199607

GREENISH SILVER M.M,6L3

main69220-32091-G5iSXV10..NAP..GL;VCV10..NAP..RHD199508-199607

DK.GREEN M.M.,6P2

main69220-32091-J1iVCV10..NAP199209-199309

DARK BLUE MICA,8J4

main69220-32091-J2iVCV10..NAP199209-199309

LT.BLUE MICA ME,8J6

main69220-32091-J5iSXV10..NAP..GL;VCV10..NAP..RHD199309-199409

DK BLUE M.M,8K0

main69220-32091-J7iSXV10..NAP..GL;VCV10..NAP..RHD199408-199607

DK.BLUE M.M.,8K0

main69220-32091-K0iSXV10..NAP..GL;VCV10..NAP..RHD199309-199409

GRAYISH PUPLE ME,923

main69220-32091-K1iSXV10..NAP..GL;VCV10..NAP..RHD199408-199607

GRAYISH PURPLE M,923

main69220-33011-A0iVCV10..NAP..LHD199309-199409

SUPER WHITE 2,040

main69220-33011-A2iVCV10..NAP..LHD199408-199607

SUPER WHITE 2,040

main69220-33011-B4iVCV10..NAP..LHD199309-199409

BLUISH SILVER ME,1A0

main69220-33011-B5iVCV10..NAP..LHD199408-199607

BLUISH SILVER ME.,1A0

main69220-33011-D2iVCV10..NAP..LHD199309-199409

SUPER RED 3,3J6

main69220-33011-D3iVCV10..NAP..LHD199309-199409

RED MICA ME,3K4

main69220-33011-D4iVCV10..NAP..LHD199408-199607

SU.RED 3,3J6

main69220-33011-D5iVCV10..NAP..LHD199408-199508

RED MM,3K4

main69220-33011-D7iVCV10..NAP..LHD199508-199607

MAGENTA MC.,3L3

main69220-33011-E5iVCV10..NAP..LHD199309-199409

BEIGE ME,4M9

main69220-33011-E6iVCV10..NAP..LHD199408-199607

BEIGE ME.,4M9

main69220-33011-G0iVCV10..NAP..LHD199309-199409

DARK GREEN MICA,6M1

main69220-33011-G1iVCV10..NAP..LHD199408-199508

DK GREEN MICA,6M1

main69220-33011-G3iVCV10..NAP..LHD199309-199409

GREENISH SILVER ME,6L3

main69220-33011-G4iVCV10..NAP..LHD199408-199607

GREENISH SILVER M.M,6L3

main69220-33011-G5iVCV10..NAP..LHD199508-199607

DK. GREEN M.M,6P2

main69220-33011-J2iVCV10..NAP..LHD199309-199409

LT.BLUE MICA M,8J6

main69220-33011-J5iVCV10..NAP..LHD199309-199409

DK BLUE M.M,8K0

main69220-33011-J6iVCV10..NAP..LHD199408-199607

DK.BLUE M.M.,8K0

main69220-33011-K0iVCV10..NAP..LHD199309-199409

GRAYISH PURPLE M,923

main69220-33011-K1iVCV10..NAP..LHD199408-199607

GRAYISH PURPLE M,923

main69220-33020iSXV10..NAP199203-199212

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-06010-B0iSXV10,VCV10..NAP199203-199607

MEDIUM GRAY,TRIM1#

main69277-06010-E0iSXV10,VCV10..NAP199309-199607

OAK,TRIM4#

main69277-06010-J0iSXV10,VCV10..NAP199203-199309

DARK BLUE,TRIM8#

main69277-32060-S4iSXV10,VCV10..NAP199203-199212

MEDIUM GRAY,TRIM1#

main69277-32060-W3iSXV10,VCV10..NAP199203-199212

DARK BLUE,TRIM8#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-06010-B0iSXV10,VCV10..NAP199203-199607

MEDIUM GRAY,TRIM1#

main69278-06010-E0iSXV10,VCV10..NAP199309-199607

OAK,TRIM4#

main69278-06010-J0iSXV10,VCV10..NAP199203-199309

DARK BLUE,TRIM8#

main69278-32050-S4iSXV10,VCV10..NAP199203-199212

MEDIUM GRAY,TRIM1#

main69278-32050-W3iSXV10,VCV10..NAP199203-199212

DARK BLUE,TRIM8#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-06010iSXV10,VCV10..NAP199408-199607

RH

main69293-06020iSXV10..NAP199203-199309

LH

main69293-12050iVCV10..NAP199212-199309

RH

main69293-12060iSXV10,VCV10..NAP199203-199212

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-33010iSXV10,VCV10..NAP..LHD..(GL,GX)199203-199309

W(*PW)

main69030-33030iSXV10,VCV10..NAP..RHD199203-199211

main69030-33080iSXV10,VCV10..NAP..LHD..(GL,GX)199309-199607

main69030-33090iSXV10,VCV10..NAP..RHD199211-199607

main69310-33010iSXV10..NAP..XL199203-199607

69320LOCK ASSY, FRONT DOOR, LH

main69040-33010iSXV10,VCV10..NAP..LHD..(GL,GX)199203-199309

W(*PW)

main69040-33030iSXV10,VCV10..NAP..RHD199203-199211

main69040-33070iSXV10,VCV10..NAP..LHD..(GL,GX)199309-199607

main69040-33080iSXV10,VCV10..NAP..RHD199211-199607

main69320-33010iSXV10..NAP..XL199203-199607

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-24010iSXV10,VCV10..NAP199203-199211

RH

main69759-24020iSXV10,VCV10..NAP..LHD199211-199408

LH

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001×2iSXV10,VCV10..NAP199203-199607

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69710-33020iSXV10,VCV10..NAP199203-199211

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-32060iSXV10,VCV10..NAP..LHD199211-199408

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-32050iSXV10,VCV10..NAP199203-199607

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69720-33020iSXV10,VCV10..NAP199203-199607

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-33020iSXV10,VCV10..NAP199203-199607

69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH

main69726-33020iSXV10,VCV10..NAP199203-199607

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-50010×2iSXV10,VCV10..NAP199203-199607

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24050×2iSXV10..NAP..XL;SXV10,VCV10..NAP..RHD199203-199309

LH

main69759-24060×2iSXV10..NAP..XL;SXV10,VCV10..NAP..RHD199203-199309

LH

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-03020×2iSXV10,VCV10..NAP199203-199607

LH

main69759-06030×2iSXV10,VCV10..NAP199203-199607

RH

main69759-14050×2iSXV10,VCV10..NAP199203-199212

LH

main69759-24070×2iSXV10,VCV10..NAP199203-199212

RH

9010506082

main90105-06082

9015180012

main90151-80012

9015960081

main90159-60081

9015960356

main90159-60356

9017906070

main90179-06070

9018906125

main90189-06125

9046704014

main90467-04014

9046706106

main90467-06106

9046708117

main90467-08117

31 parts on this diagram · 1 diagram in section
