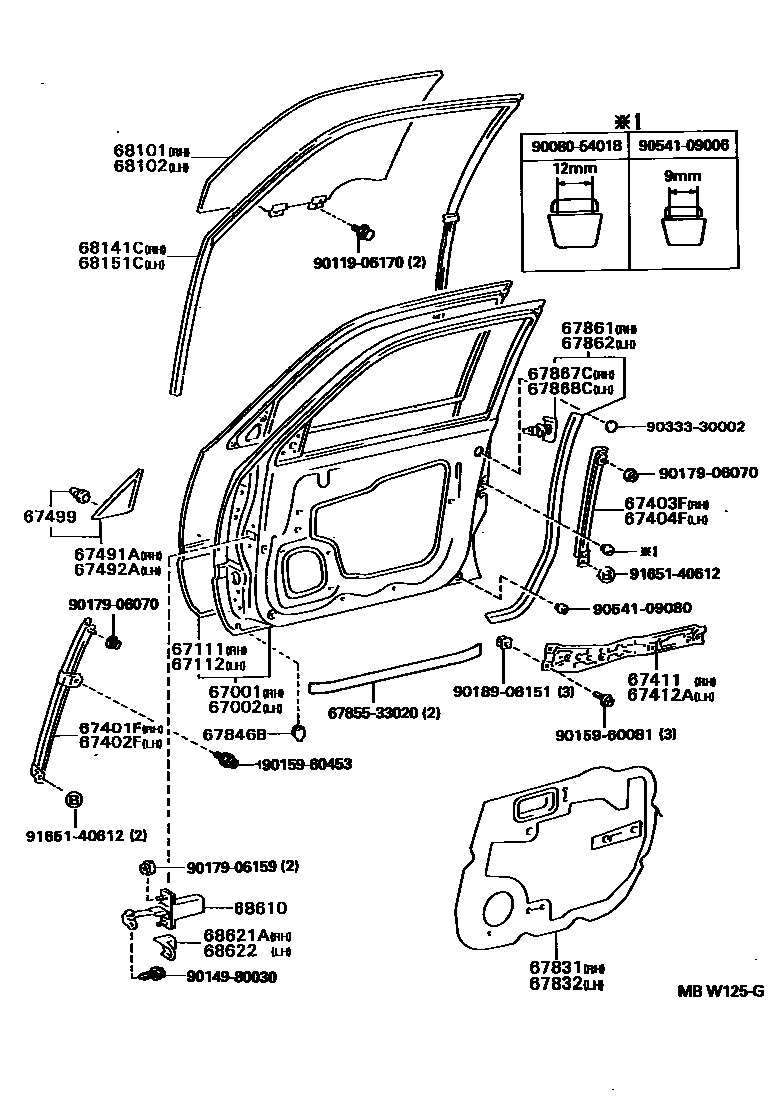

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67411FRAME, FRONT DOOR WINDOW, FRONT UPPER RH
67412AFRAME, FRONT DOOR WINDOW, FRONT UPPER LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67831COVER, FRONT DOOR SERVICE HOLE, RH
W(*PW & DOOR SPEAKER)
W(*PW)
W(DOOR SPEAKER)
67832COVER, FRONT DOOR SERVICE HOLE, LH
W(*PW & DOOR SPEAKER)
W(*PW)
W(DOOR SPEAKER)
67846BSUB-SHEET, FRONT DOOR SERVICE HOLE
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=4.0, GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=4.0, GREEN
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68610CHECK ASSY, FRONT DOOR
RH
W(DOOR CHECK COVER),RH
RH
LH
LH
LH
68621ACOVER, FRONT DOOR CHECK, RH
68622COVER, FRONT DOOR CHECK, LH
6785533020COVER, DOOR OUTSIDE HANDLE SERVICE HOLE
9008054018
9011906170
9014980030
9015960081
9015960453
9017906070
9017906159
9018906151
9033330002
9054109006
9054109080
9165140612
40 parts on this diagram · 3 diagrams in section
