INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

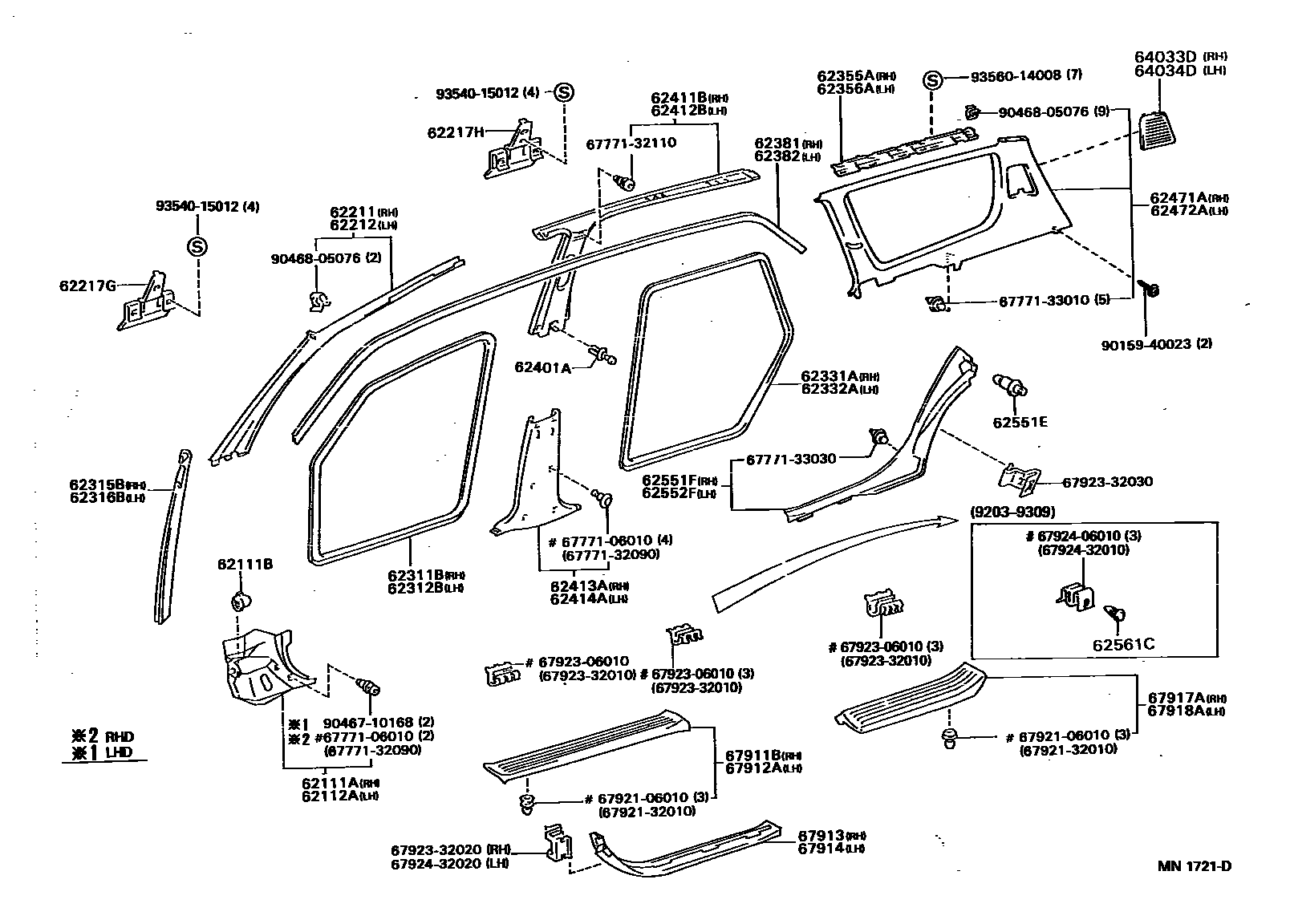

Parts diagram
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-06010-B0i199203-199607
MEDIUM GRAY,TRIM1#
main62101-06010-E0i199309-199607
OAK,TRIM4#
main62101-06010-J0i199203-199309
DARK BLUE,TRIM8#
main62101-33010-B0i199203-199607
MEDIUM GRAY,TRIM1#
sub62101-33010¥2,640
main62101-33010-E0i199309-199607
OAK,TRIM4#
sub62101-33010¥2,640
main62101-33010-J0i199203-199309
DARK BLUE,TRIM8#
sub62101-33010¥2,640
62111BCLIP(FOR COWL SIDE TRIM)
main90467-06158-C0i199309-199607
BLACK,TRIM1#,4#
main90467-08161i¥210199203-199309
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-06010-B0i199203-199607
MEDIUM GRAY,TRIM1#
main62102-06010-E0i199309-199607
OAK,TRIM4#
main62102-06010-J0i199203-199309
DARK BLUE,TRIM8#
main62102-33010-B0i199203-199607
MEDIUM GRAY,TRIM1#
sub62102-33010¥2,460
main62102-33010-E0i199309-199607
OAK,TRIM4#
sub62102-33010¥2,460
main62102-33010-J0i199203-199309
DARK BLUE,TRIM8#
sub62102-33010¥2,460
62211GARNISH, FRONT PILLAR, RH
main62210-06010-B0i199203-199607
MEDIUM GRAY,TRIM1#
main62210-06010-E0i199309-199607
OAK,TRIM4#
main62210-06010-J0i199203-199309
DARK BLUE,TRIM8#
62212GARNISH, FRONT PILLAR, LH
main62220-06010-B0i199203-199607
MEDIUM GRAY,TRIM1#
main62220-06010-E0i199309-199607
OAK,TRIM4#
main62220-06010-J0i199203-199309
DARK BLUE,TRIM8#
62217GCLIP, FRONT PILLAR GARNISH
main62217-32030i¥260199203-199607
62217HCLIP, CENTER PILLER GARNISH
main62217-32030i¥260199203-199607
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-06010i¥6,500199203-199602
main62311-33020i¥9,200199602-199607
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-06010i¥6,500199203-199602
main62312-33020i¥9,200199602-199607
62315BCOVER, FRONT DOOR OPENING TRIM, RH
main62315-06010-B0i199203-199607
MEDIUM GRAY,TRIM1#
main62315-06010-E0i199309-199607
OAK,TRIM4#
main62315-06010-J0i199203-199309
DARK BLUE,TRIM8#
62316BCOVER, FRONT DOOR OPENING TRIM, LH
main62316-06010-B0i199203-199607
MEDIUM GRAY,TRIM1#
main62316-06010-E0i199309-199607
OAK,TRIM4#
main62316-06010-J0i199203-199309
DARK BLUE,TRIM8#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-06020i¥10,500199203-199607
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-06020i¥10,500199203-199607
62355ARETAINER, QUARTER WINDOW INSIDE TRIM, RH
main62355-06020i¥3,450199203-199607
62356ARETAINER, QUARTER WINDOW INSIDE TRIM, LH
main62356-06020i¥3,450199203-199607
62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH
main62381-06020i¥9,300199203-199607
62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH
main62382-06020i¥9,300199203-199607
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
main90467-07041-01i199203-199309
BLACK,TRIM1#,8#
sub90467-07041¥140
main90467-07041-01i199309-199408
BLACK,TRIM1#,4#
sub90467-07041¥140
main90467-07041-C0i199408-199607
BLACK,TRIM1#,4#
sub90467-07041¥140
62411BGARNISH, CENTER PILLAR, UPPER RH
main62410-06020-B0i199203-199607
MEDIUM GRAY,TRIM1#
main62410-06020-E0i199309-199607
OAK,TRIM4#
main62410-06020-J0i199203-199309
DARK BLUE,TRIM8#
62412BGARNISH, CENTER PILLAR, UPPER LH
main62420-06020-B0i199203-199607
MEDIUM GRAY,TRIM1#
main62420-06020-E0i199309-199607
OAK,TRIM4#
main62420-06020-J0i199203-199309
DARK BLUE,TRIM8#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-06020-B0i199203-199607
MEDIUM GRAY,TRIM1#
main62413-06020-E0i199309-199607
OAK,TRIM4#
main62413-06020-J0i199203-199309
DARK BLUE,TRIM8#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-06020-B0i199203-199607
MEDIUM GRAY,TRIM1#
main62414-06020-E0i199309-199607
OAK,TRIM4#
main62414-06020-J0i199203-199309
DARK BLUE,TRIM8#
62471AGARNISH, ROOF SIDE, INNER RH
main62470-06040-B0i199203-199607
MEDIUM GRAY,TRIM1#
main62470-06040-E0i199309-199607
OAK,TRIM4#
main62470-06040-J0i199203-199309
DARK BLUE,TRIM8#
main62470-06050-B0i199203-199607
W(3RD SEAT),MEDIUM GRAY,TRIM1#
main62470-06050-E0i199309-199607
W(3RD SEAT),OAK,TRIM4#
main62470-06050-J0i199203-199309
W(3RD SEAT),DARK BLUE,TRIM8#
62472AGARNISH, ROOF SIDE, INNER LH
main62480-06040-B0i199203-199607
MEDIUM GRAY,TRIM1#
sub62480-06040¥29,100
main62480-06040-E0i199309-199607
OAK,TRIM4#
sub62480-06040¥29,100
main62480-06040-J0i199203-199309
DARK BLUE,TRIM8#
sub62480-06040¥29,100
main62480-06060-B0i199203-199607
W(3RD SEAT),MEDIUM GRAY,TRIM1#
main62480-06060-E0i199309-199607
W(3RD SEAT),OAK,TRIM4#
main62480-06060-J0i199203-199309
W(3RD SEAT),DARK BLUE,TRIM8#
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
main90467-07108i¥200199203-199607
62551FGARNISH, REAR SEAT SIDE, RH
main62551-06030-B0i199203-199607
MEDIUM GRAY,TRIM1#
main62551-06030-E0i199309-199607
OAK,TRIM4#
main62551-06030-J0i199203-199309
DARK BLUE,TRIM8#
62552FGARNISH, REAR SEAT SIDE, LH
main62552-06030-B0i199203-199607
MEDIUM GRAY,TRIM1#
sub62552-06030¥6,000
main62552-06030-E0i199309-199607
OAK,TRIM4#
sub62552-06030¥6,000
main62552-06030-J0i199203-199309
DARK BLUE,TRIM8#
sub62552-06030¥6,000
62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)
main90467-05077-C0i199410-199607
BLACK,TRIM1#,4#
sub90467-05077¥350
main90467-09066-22i199408-199410
BLACK,TRIM1#,4#
sub90467-09066¥300
main90467-09066-B0i199203-199309
GRAY,TRIM1#,8#
sub90467-09066¥300
main90467-09066-B0i199309-199408
GRAY,TRIM1#,4#
sub90467-09066¥300
main90467-11021-01i199203-199309
BLACK,TRIM1#,8#
sub90467-11068¥140
64033DGRILLE SUB-ASSY, REAR SPEAKER, RH
main64370-06010-B0i199203-199607
MEDIUM GRAY,TRIM1#
main64370-06010-E0i199309-199607
OAK,TRIM4#
main64370-06010-J0i199203-199309
DARK BLUE,TRIM8#
64034DGRILLE SUB-ASSY, REAR SPEAKER, LH
main64380-06010-B0i199203-199607
MEDIUM GRAY,TRIM1#
main64380-06010-E0i199309-199607
OAK,TRIM4#
main64380-06010-J0i199203-199309
DARK BLUE,TRIM8#
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67911-06010i199203-199607
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67912-06010i199203-199607
67913PLATE, FRONT DOOR SCUFF, RH
main67913-06010-B0i199203-199607
MEDIUM GRAY,TRIM1#
main67913-06010-E0i199309-199607
OAK,TRIM4#
main67913-06010-J0i199203-199309
DARK BLUE,TRIM8#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-06010-B0i199203-199607
MEDIUM GRAY,TRIM1#
main67914-06010-E0i199309-199607
OAK,TRIM4#
main67914-06010-J0i199203-199309
DARK BLUE,TRIM8#
67917APLATE, REAR DOOR SCUFF, RH
main67915-06010i199203-199607
67918APLATE, REAR DOOR SCUFF, LH
main67916-06010i199203-199607
6777106010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-06010
6777132090WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32090¥170
6777132110WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32110¥160
6777133010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-33010¥160
6777133030WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-33030¥140
6792106010RETAINER, FRONT DOOR SCUFF PLATE
main67921-06010
6792132010RETAINER, FRONT DOOR SCUFF PLATE
main67921-32010¥160
6792306010CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-06010
6792332010CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-32010¥130
6792332020CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-32020¥130
6792332030CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-32030¥130
6792406010CUSHION, FRONT DOOR STIFFENER, NO.2
main67924-06010
6792432010CUSHION, FRONT DOOR STIFFENER, NO.2
main67924-32010¥210
6792432020CUSHION, FRONT DOOR STIFFENER, NO.2
main67924-32020¥130
9015940023
main90159-40023¥180
9046710168
main90467-10168¥160
9046805076
main90468-05076¥170
9354015012
main93540-15012¥70
9356014008
main93560-14008¥80

55 parts on this diagram · 1 diagram in section
