ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-06010iSXV10..NAP..XL199203-199607

W(*MR)

main63102-06020iSXV10,VCV10..NAP..(GL,GX)199203-199607

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-06010iSXV10..NAP..GL199203-199408

W(*MR)

sub63105-06900

main63105-06020iSXV10,VCV10..NAP199203-199608

W(ROOF RAIL)

sub63105-06900

main63105-06030iVCV10..NAP..RHD199203-199408

W(*MR & ANTENNA)

sub63105-06900

63111PANEL, ROOF

main63111-06040iSXV10..NAP..GL199203-199408

W/O(ANTENNA)

main63111-06050iSXV10..NAP..GL199203-199408

W(*MR)

main63111-06070iSXV10..NAP..GL199203-199408

W(ANTENNA & ROOF RAIL)

main63111-06080iSXV10..NAP..GL199203-199408

W(*MR & ROOF RAIL)

main63111-06180iSXV10,VCV10..NAP..(GL,GX)199410-199607

main63111-06190iSXV10,VCV10..NAP..(GL,GX)199410-199607

W(*MR)

main63111-06210iSXV10,VCV10..NAP..(GL,GX)199410-199607

W(ANTENNA & ROOF RAIL)

main63111-06220iSXV10,VCV10..NAP..(GL,GX)199410-199607

W(*MR & ANTENNA & ROOF RAIL)

main63111-06901iSXV10..NAP..LHD199203-199408

W(ANTENNA)

main63111-06902iSXV10..NAP..LHD199203-199408

W(ANTENNA & ROOF RAIL)

main63111-06903iSXV10..NAP..LHD..GL199203-199408

W(*MR & ANTENNA & ROOF RAIL)

main63111-06904iVCV10..NAP..RHD199203-199408

W(ANTENNA & ROOF RAIL)

main63111-06905iVCV10..NAP..RHD199203-199408

W(*MR & ANTENNA & ROOF RAIL)

main63111-06906iSXV10..NAP..LHD..GL199203-199408

W(*MR & ANTENNA)

main63111-06907iVCV10..NAP..RHD199203-199408

W(ANTENNA)

main63111-06908iVCV10..NAP..RHD199203-199408

W(*MR & ANTENNA)

main63111-06909iSXV10..NAP..XL199408-199607

main63111-06910iSXV10..NAP..XL199408-199607

W(ANTENNA & ROOF RAIL)

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-32010×2iSXV10,VCV10..NAP199203-199204

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-06010iSXV10,VCV10..NAP199203-199607

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-06010iSXV10,VCV10..NAP..(GL,GX)199203-199607

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63106-06010iSXV10,VCV10..NAP199203-199607

W(ROOF RAIL)

main63144-06010iSXV10,VCV10..NAP199203-199607

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-06010×2iSXV10,VCV10..NAP199203-199607

63243CBRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH

main63243-33030iSXV10,VCV10..NAP..(GL,GX)199203-199607

63244CBRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH

main63244-33030iSXV10,VCV10..NAP..(GL,GX)199203-199607

9010506163

main90105-06163

9011906649

main90119-06649

9017904018

main90179-04018

9017906026

main90179-06026

9017906070

main90179-06070

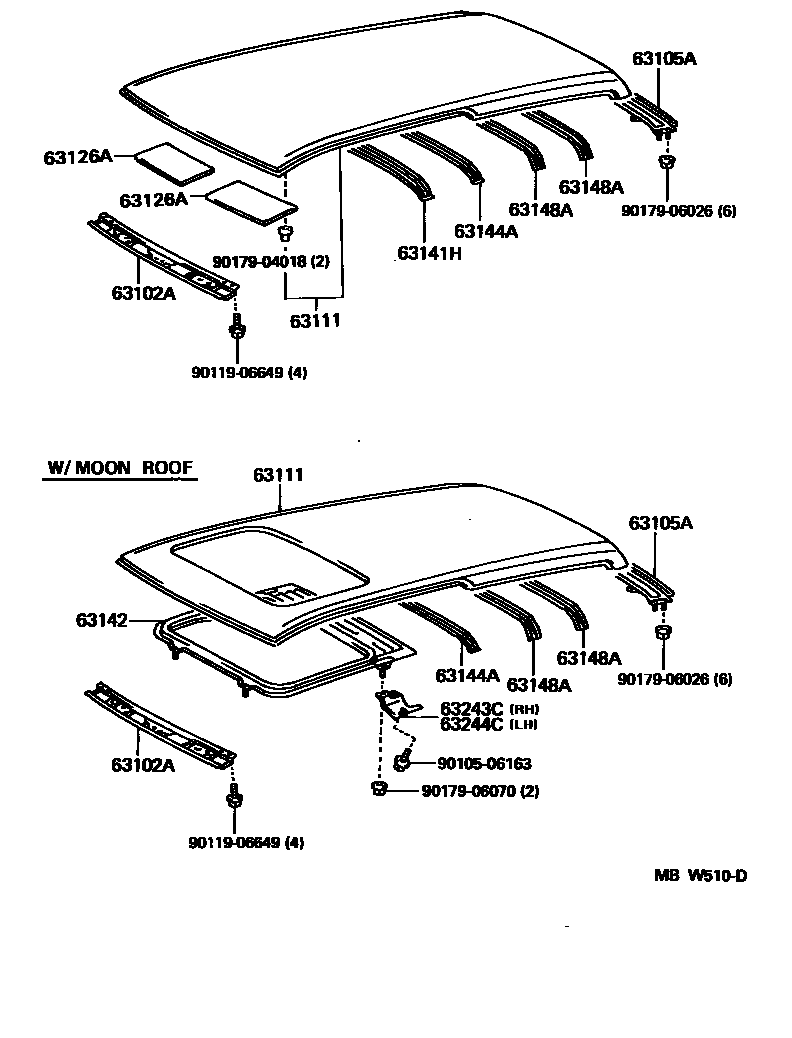

15 parts on this diagram · 3 diagrams in section
