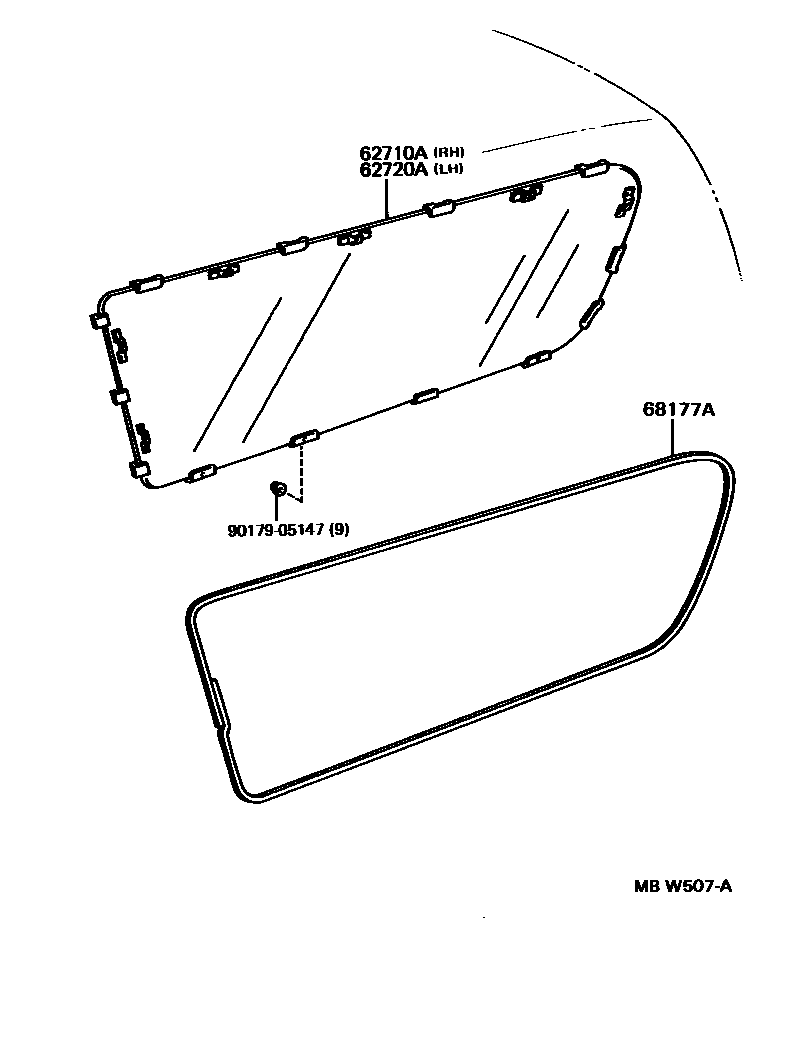

QUARTER WINDOW

0001 1 0002 1

62710AWINDOW ASSY, QUARTER, RH

main62710-06010iSXV10,VCV10..NAP199203-199401

*TT,T=3.5, GREEN

main62710-06011iSXV10,VCV10..NAP199401-199410

*TT,T=3.5,GREEN

main62710-06070iSXV10,VCV10..NAP199410-199607

*TT,T=3.5,GREEN

62720AWINDOW ASSY, QUARTER, LH

main62720-06010iSXV10,VCV10..NAP199203-199401

*TT,T=3.5, GREEN

main62720-06011iSXV10,VCV10..NAP199401-199410

*TT,T=3.5, GREEN

main62720-06030iSXV10,VCV10..NAP199410-199607

*TT,T=3.5,GREEN

68177ASEAL, QUARTER WINDOW NO.2 GLASS, NO.1

main68177-33010iSXV10,VCV10..NAP199203-199410

9017905147

main90179-05147

4 parts on this diagram · 2 diagrams in section
