MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-06030-B0iSXV10,VCV10..NAP..LHD..MTM199203-199309

MEDIUM GRAY,TRIM1#

main58510-06030-J0iSXV10,VCV10..NAP..LHD..MTM199203-199309

DARK BLUE,TRIM8#

main58510-06040-B0iSXV10,VCV10..NAP..RHD199203-199309

MEDIUM GRAY,TRIM1#

main58510-06040-J0iSXV10,VCV10..NAP..RHD199203-199309

DARK BLUE,TRIM8#

main58510-06050-B0iSXV10,VCV10..NAP..LHD..ATM199203-199309

MEDIUM GRAY,TRIM1#

main58510-06050-J0iSXV10,VCV10..NAP..LHD..ATM199203-199309

DARK BLUE,TRIM8#

main58510-06110-B0iSXV10,VCV10..NAP..RHD199309-199607

MEDIUM GRAY,TRIM1#

main58510-06110-E0iSXV10,VCV10..NAP..RHD199309-199607

MEDIUM OAK,TRIM4#

main58510-06120-B0iSXV10,VCV10..NAP..LHD..MTM199309-199607

MEDIUM GRAY,TRIM1#

main58510-06120-E0iSXV10,VCV10..NAP..LHD..MTM199309-199607

MEDIUM OAK,TRIM4#

main58510-06140-B0iSXV10,VCV10..NAP..LHD..ATM199309-199607

MEDIUM GRAY,TRIM1#

main58510-06140-E0iSXV10,VCV10..NAP..LHD..ATM199309-199607

MEDIUM OAK,TRIM4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-01×3iSXV10,VCV10..NAP199203-199309

BLACK,TRIM1#,8#

sub90467-07049

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06089-B0iSXV10,VCV10..NAP199203-199607

MEDIUM GRAY,TRIM1#

main90467-06089-E0iSXV10,VCV10..NAP199309-199408

OAK,TRIM4#

main90467-06089-E1iSXV10,VCV10..NAP199408-199607

MD.OAK,TRIM4#

main90467-06089-J0iSXV10,VCV10..NAP199203-199309

DARK BLUE,TRIM8#

58543BBRACKET, FLOOR CARPET, RH

main58543-06010iSXV10,VCV10..NAP199203-199607

58544BBRACKET, FLOOR CARPET, LH

main58544-06010iSXV10,VCV10..NAP199203-199607

58570BMAT ASSY, REAR FLOOR

main58517-06010-B0iSXV10,VCV10..NAP199203-199607

MEDIUM GRAY,TRIM1#

main58517-06010-E0iSXV10,VCV10..NAP199309-199607

OAK,TRIM4#

main58517-06010-J0iSXV10,VCV10..NAP199203-199309

DARK BLUE,TRIM8#

58572CCLIP, REAR FLOOR MAT SET

main90467-06049-B4×5iSXV10,VCV10..NAP199407-199607

MEDIUM GRAY,TRIM1#

main90467-06049-E5×5iSXV10,VCV10..NAP199407-199607

OAK,TRIM4#

main90467-06049-J3×7iSXV10,VCV10..NAP199203-199309

DARK BLUE,TRIM8#

9015950138

main90159-50138

9166540616

main91665-40616

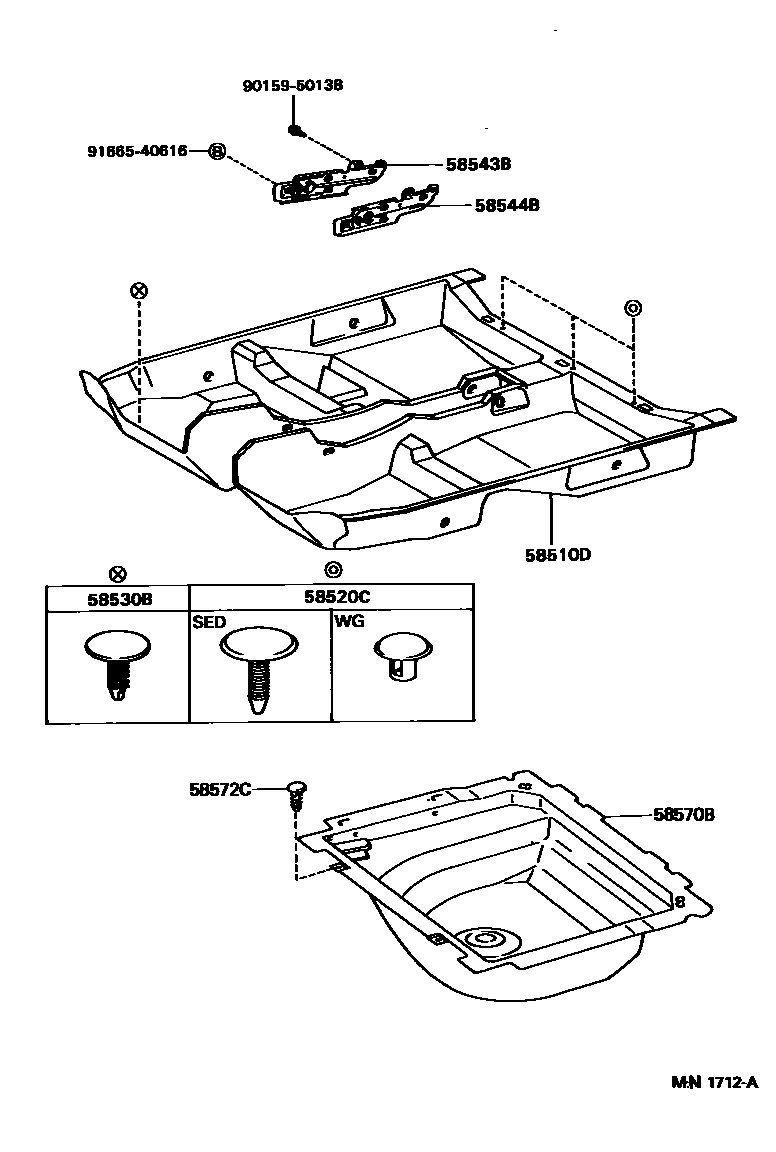

9 parts on this diagram · 1 diagram in section
