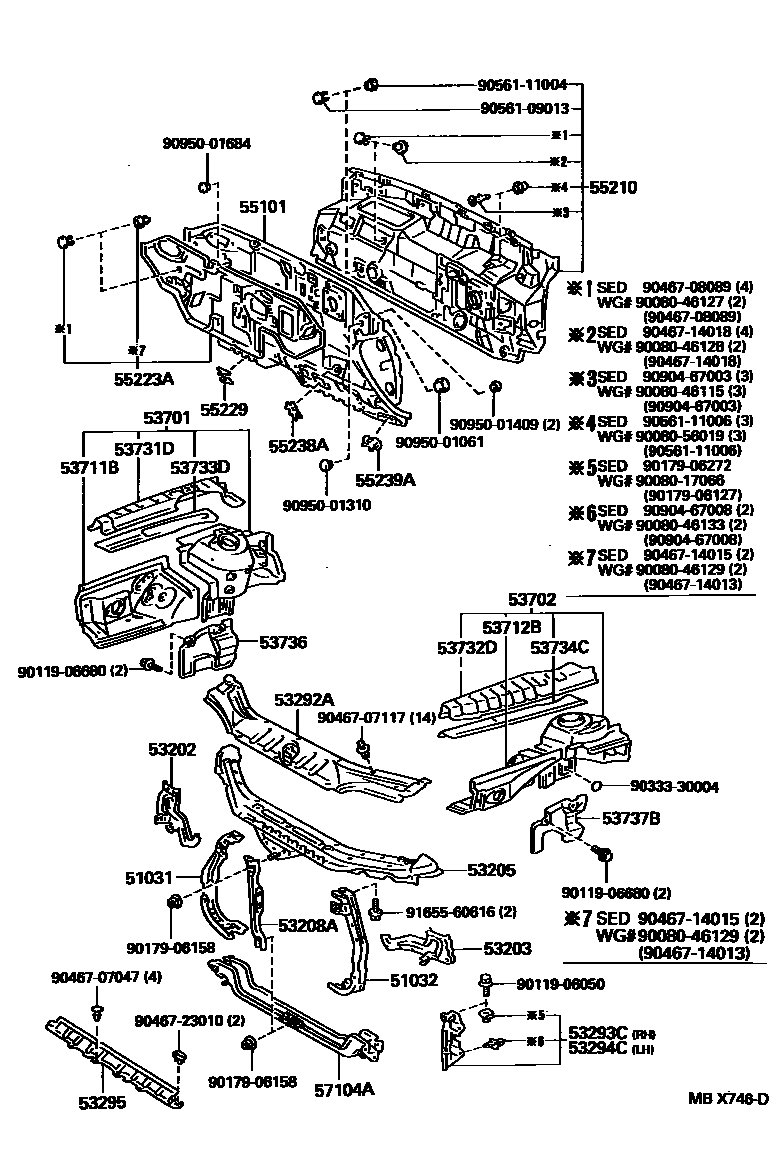

FRONT FENDER APRON & DASH PANEL
51031GUSSET SUB-ASSY, FRONT CROSSMEMBER, RH
51032GUSSET SUB-ASSY, FRONT CROSSMEMBER, LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53208ASUPPORT SUB-ASSY, HOOD LOCK
53292ASEAL, RADIATOR SUPPORT, UPPER
53293CDEFLECTOR, RADIATOR SIDE, RH
sub53293-AA010
53294CDEFLECTOR, RADIATOR SIDE, LH
sub53294-AA010
53295DEFLECTOR, RADIATOR LOWER AIR
53702APRON SUB-ASSY, FRONT FENDER, LH
53712BAPRON, FRONT FENDER, FRONT LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53737BSEAL, FRONT FENDER APRON, LH
sub53737-08010
55223AINSULATOR, DASH PANEL, OUTER
55229PLATE, DASH PANEL INSULATOR, NO.4
55238APLATE, DASH PANEL INSULATOR, NO.2
55239APLATE, DASH PANEL INSULATOR, NO.3
sub55239-33020
57104AMEMBER SUB-ASSY, FRONT CROSS
9008017066
main90080-17066
9008046115
main90080-46115
9008046127
main90080-46127
9008046128
main90080-46128
9008046129
main90080-46129
9008046133
main90080-46133
9008056019
main90080-56019
9011906050
main90119-06050
9011906680
main90119-06680
9017906127
main90179-06127
9017906158
main90179-06158
9017906272
main90179-06272
9033330004
main90333-30004
9046707047
main90467-07047
9046707117
main90467-07117
9046708089
main90467-08089
9046714013
main90467-14013
9046714015
main90467-14015
9046714018
main90467-14018
9046723010
main90467-23010
9056109013
main90561-09013
9056111004
main90561-11004
9056111006
main90561-11006
9090467003
main90904-67003
9090467008
main90904-67008
9095001061
main90950-01061
9095001310
main90950-01310
9095001409
main90950-01409
9095001684
main90950-01684
9165560616
main91655-60616
57 parts on this diagram · 2 diagrams in section
