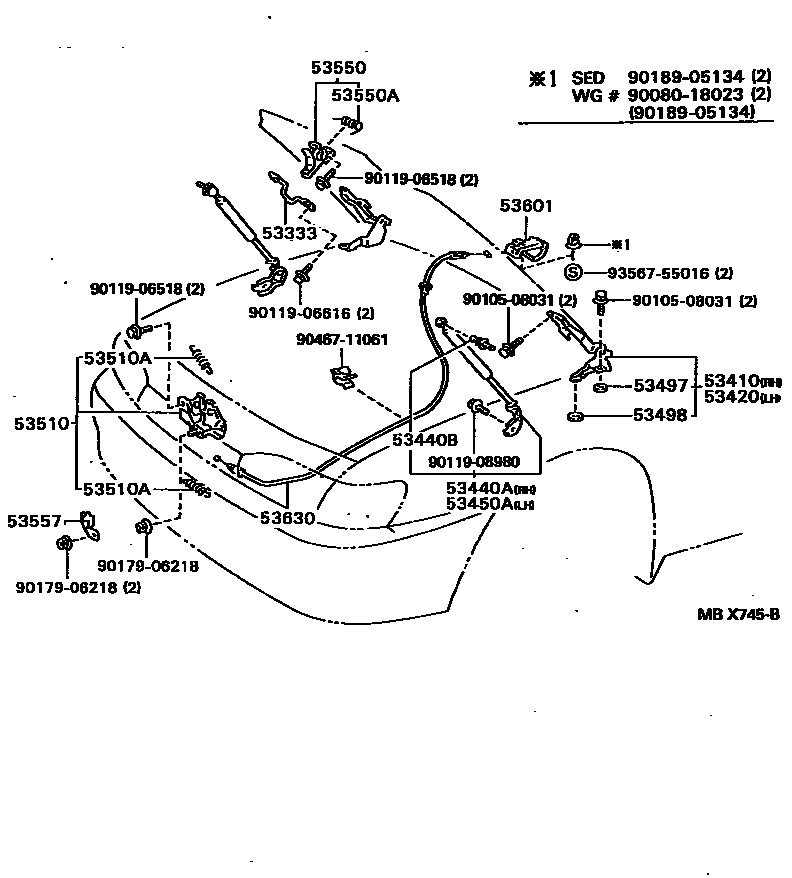

HOOD LOCK & HINGE

0001 1 0002 1

53333STRIKER, HOOD LOCK

main53333-33010iSXV10,VCV10..NAP199203-199607

53410HINGE ASSY, HOOD, RH

main53410-06020iSXV10,VCV10..NAP199309-199310

main53410-33010iSXV10,VCV10..NAP199203-199607

53420HINGE ASSY, HOOD, LH

main53420-06020iSXV10,VCV10..NAP199503-199607

main53420-33010iSXV10,VCV10..NAP199203-199607

53440ASUPPORT ASSY, HOOD, RH

main53440-09010iSXV10,VCV10..NAP199209-199407

main53440-09011iSXV10,VCV10..NAP199407-199607

main53440-39055iSXV10,VCV10..NAP199203-199212

53440BBOLT, HOOD SUPPORT, NO.1

main68961-23010×2iSXV10,VCV10..NAP199203-199607

53450ASUPPORT ASSY, HOOD, LH

main53450-09010iSXV10,VCV10..NAP199209-199407

main53450-09011iSXV10,VCV10..NAP199407-199607

main53450-39055iSXV10,VCV10..NAP199203-199212

53497PAD, HOOD HINGE, NO.1

main53497-06020×2iSXV10,VCV10..NAP199406-199607

T=2.0,T=2.0

main53497-17030×2iSXV10,VCV10..NAP199203-199607

T=2.0,T=2.0

main53497-50010×2iSXV10,VCV10..NAP199203-199607

T=1.0

main53497-AC010×2iSXV10,VCV10..NAP199406-199607

T=1.0

53498PAD, HOOD HINGE, NO.2

main53498-06020×2iSXV10,VCV10..NAP199406-199607

T=2.0

main53498-17010×2iSXV10,VCV10..NAP199203-199607

T=2.0

main53498-50010×2iSXV10,VCV10..NAP199203-199607

T=1.0

main53498-AC010×2iSXV10,VCV10..NAP199406-199607

T=1.0

53510LOCK ASSY, HOOD

main53510-33050iSXV10,VCV10..NAP..RHD199211-199607

main53510-50020iSXV10,VCV10..NAP..LHD199203-199607

sub53510-50010

main53510-50040iSXV10,VCV10..NAP..RHD199203-199211

main53510-AC010iSXV10,VCV10..NAP..LHD199408-199607

53510ASPRING, TENSION(FOR HOOD LOCK)

main90084-50002iSXV10,VCV10..NAP..LHD199408-199607

WD=1.8,CW=5,WD=0.9,CW=20.5

main90084-50003iSXV10,VCV10..NAP..LHD199408-199607

WD=2.3,CW=10,WD=1.8,CW=18

main90506-09050iSXV10,VCV10..NAP199408-199607

WD=0.9,CW=20.5,WD=0.9,CW=20.5

main90506-18068iSXV10,VCV10..NAP199203-199408

WD=1.8,CW=18,WD=1.8, CW=18

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-33010iSXV10,VCV10..NAP199203-199408

main53550-33011iSXV10,VCV10..NAP199408-199607

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90508-18096iSXV10,VCV10..NAP199203-199607

53557CATCH, HOOD AUXILIARY HOOK

main53557-33010iSXV10,VCV10..NAP199203-199607

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-06010-B0iSXV10,VCV10..NAP..RHD199403-199408

MEDIUM GRAY,TRIM1#

main53601-06010-C0iSXV10,VCV10..NAP..RHD199408-199607

BLACK,TRIM1#,4#

main53601-06010-E0iSXV10,VCV10..NAP..RHD199403-199408

OAK,TRIM4#

main53601-06020-B0iSXV10,VCV10..NAP..LHD199403-199408

MEDIUM GRAY,TRIM1#

main53601-06020-C0iSXV10,VCV10..NAP..LHD199408-199607

BLACK,TRIM1#,4#

main53601-06020-E0iSXV10,VCV10..NAP..LHD199403-199408

OAK,TRIM4#

main53601-20081-B0iSXV10,VCV10..NAP..RHD199203-199408

MEDIUM GRAY,TRIM1#

sub53601-24030

main53601-20081-C0iSXV10,VCV10..NAP..RHD199408-199607

BLACK,TRIM1#,4#

sub53601-24030

main53601-20081-E0iSXV10,VCV10..NAP..RHD199309-199408

OAK,TRIM4#

sub53601-24030

main53601-20081-J0iSXV10,VCV10..NAP..RHD199203-199309

DARK BLUE,TRIM8#

sub53601-24030

main53601-33010-B0iSXV10,VCV10..NAP..LHD199203-199408

MEDIUM GRAY,TRIM1#

main53601-33010-C0iSXV10,VCV10..NAP..LHD199408-199607

BLACK,TRIM1#,4#

main53601-33010-E0iSXV10,VCV10..NAP..LHD199309-199408

OAK,TRIM4#

main53601-33010-J0iSXV10,VCV10..NAP..LHD199203-199309

DARK BLUE,TRIM8#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-06010iSXV10,VCV10..NAP..LHD199203-199607

main53630-06020iSXV10,VCV10..NAP..RHD199203-199607

main53630-33010iSXV10,VCV10..NAP..LHD199203-199212

9008018023

main90080-18023

9010508031

main90105-08031

9011906518

main90119-06518

9011906616

main90119-06616

9011908980

main90119-08980

9017906218

main90179-06218

9018905134

main90189-05134

9046711061

main90467-11061

9356755016

main93567-55016

24 parts on this diagram · 2 diagrams in section
