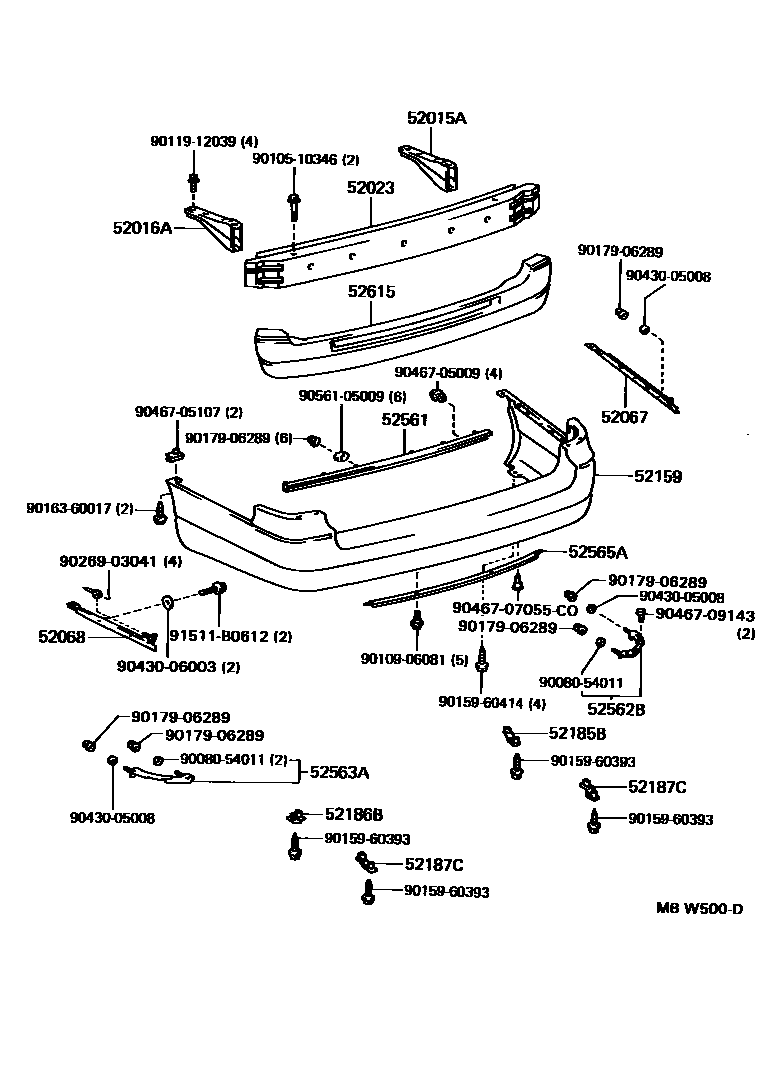

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-06020iSXV10,VCV10..NAP¥5,000199203-199607

52016AARM SUB-ASSY, REAR BUMPER, LH

main52015-06020iSXV10,VCV10..NAP¥5,000199203-199607

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-06020iSXV10,VCV10..NAP¥38,100199203-199607

52067SUPPORT SUB-ASSY, REAR BUMPER SIDE, RH

main52067-06020iSXV10,VCV10..NAP¥4,460199203-199607

52068SUPPORT SUB-ASSY, REAR BUMPER SIDE, LH

main52068-06020iSXV10,VCV10..NAP¥4,460199203-199607

52159COVER, REAR BUMPER

main52159-06901iSXV10,VCV10..NAP¥56,200199203-199607

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-06020iSXV10,VCV10..NAP¥1,010199203-199607

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52186-06020iSXV10,VCV10..NAP¥1,010199203-199607

52187CBRACKET, REAR BUMPER SIDE, NO.2

main52187-06021iSXV10,VCV10..NAP¥800199203-199607

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-06020iSXV10,VCV10..NAP¥3,480199203-199607

52562BRETAINER, REAR BUMPER, UPPER RH

main52075-06010iSXV10,VCV10..NAP¥2,590199203-199607

52563ARETAINER, REAR BUMPER, UPPER LH

main52076-06010iSXV10,VCV10..NAP¥2,590199203-199607

52565ARETAINER, REAR BUMPER, LOWER

main52565-06020iSXV10,VCV10..NAP¥4,020199203-199607

52615ABSORBER, REAR BUMPER ENERGY

main52615-06020iSXV10,VCV10..NAP¥22,000199203-199607

9008054011

main90080-54011¥230

9010510346

main90105-10346¥400

9010906081

main90109-06081¥230

9011912039

main90119-12039¥310

9015960393

main90159-60393¥80

9015960414

main90159-60414¥120

9016360017

main90163-60017¥120

9017906289

main90179-06289¥90

9026903041

main90269-03041¥120

9043005008

main90430-05008¥130

9043006003

main90430-06003¥90

9046705009

main90467-05009¥140

9046705107

main90467-05107¥200

9046707055C0

main90467-07055C0

9046709143

main90467-09143¥260

9056105009

main90561-05009¥140

91511B0612

main91511-B0612¥70

31 parts on this diagram · 1 diagram in section
