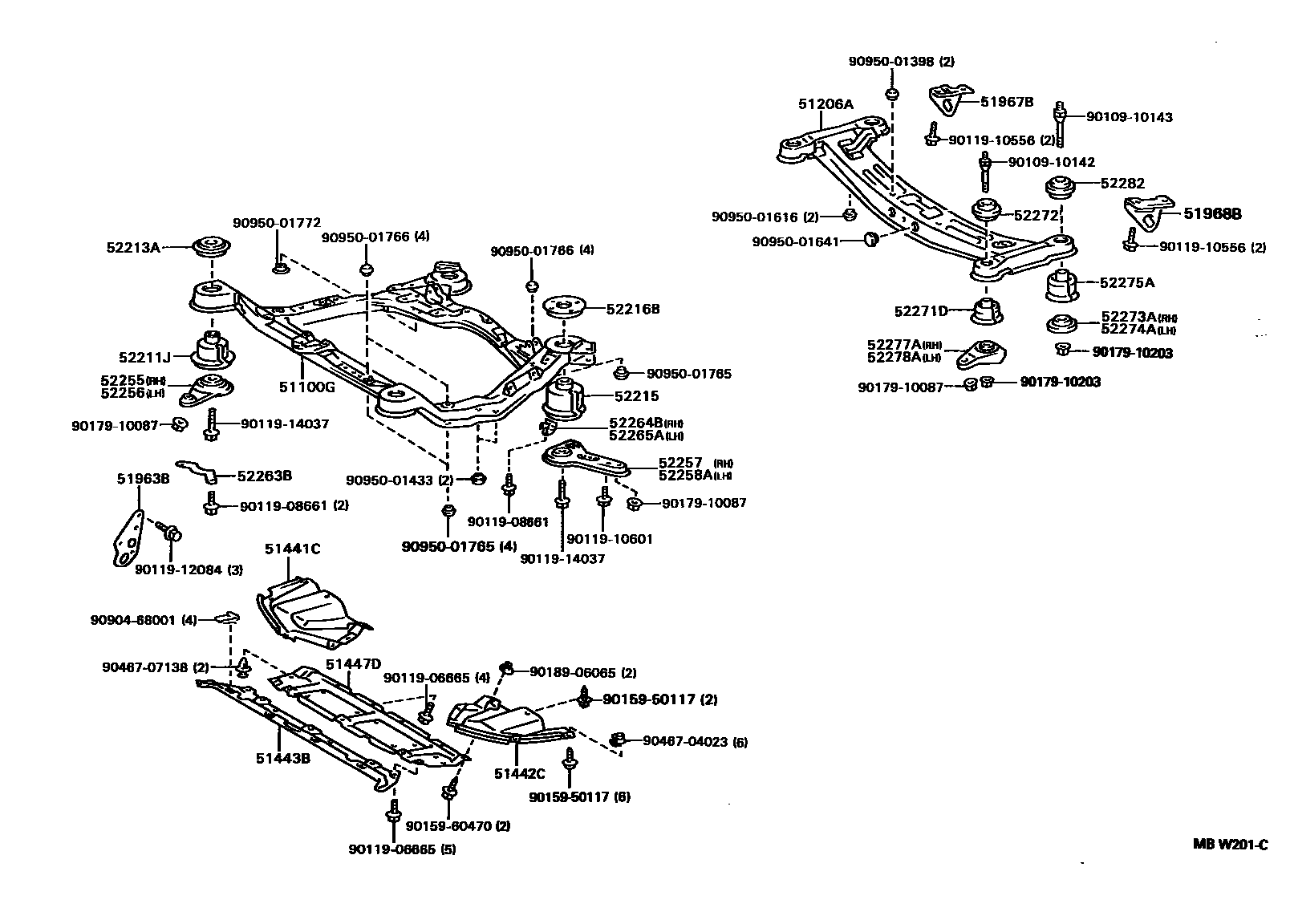

SUSPENSION CROSSMEMBER & UNDER COVER
51100GFRAME ASSY, FRONT
sub51100-06020
51441CCOVER, ENGINE UNDER, RH
51442CCOVER, ENGINE UNDER, LH
51443BCOVER, ENGINE UNDER, NO.3
51447DCOVER, ENGINE UNDER, NO.4 CENTER
51963BHOOK, TRANSPORT, FRONT RH
51967BHOOK, TRANSPORT, REAR RH
51968BHOOK, TRANSPORT, REAR LH
52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH
52263BRETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.1
52264BRETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.2
52265ARETAINER, FRONT SUSPENSION MEMBER CUSHION, NO.3
52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52272STOPPER, REAR SUSPENSION MEMBER, UPPER
52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH
52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH
52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH
52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH
52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER
9010910142
main90109-10142
9010910143
main90109-10143
9011906665
main90119-06665
9011908661
main90119-08661
9011910556
main90119-10556
9011910601
main90119-10601
9011912084
main90119-12084
9011914037
main90119-14037
9015950117
main90159-50117
9015960470
main90159-60470
9017910087
main90179-10087
9017910203
main90179-10203
9018906065
main90189-06065
9046704023
main90467-04023
9046707138
main90467-07138
9090468001
main90904-68001
9095001398
main90950-01398
9095001433
main90950-01433
9095001616
main90950-01616
9095001641
main90950-01641
9095001765
main90950-01765
9095001766
main90950-01766
9095001772
main90950-01772
51 parts on this diagram · 1 diagram in section
