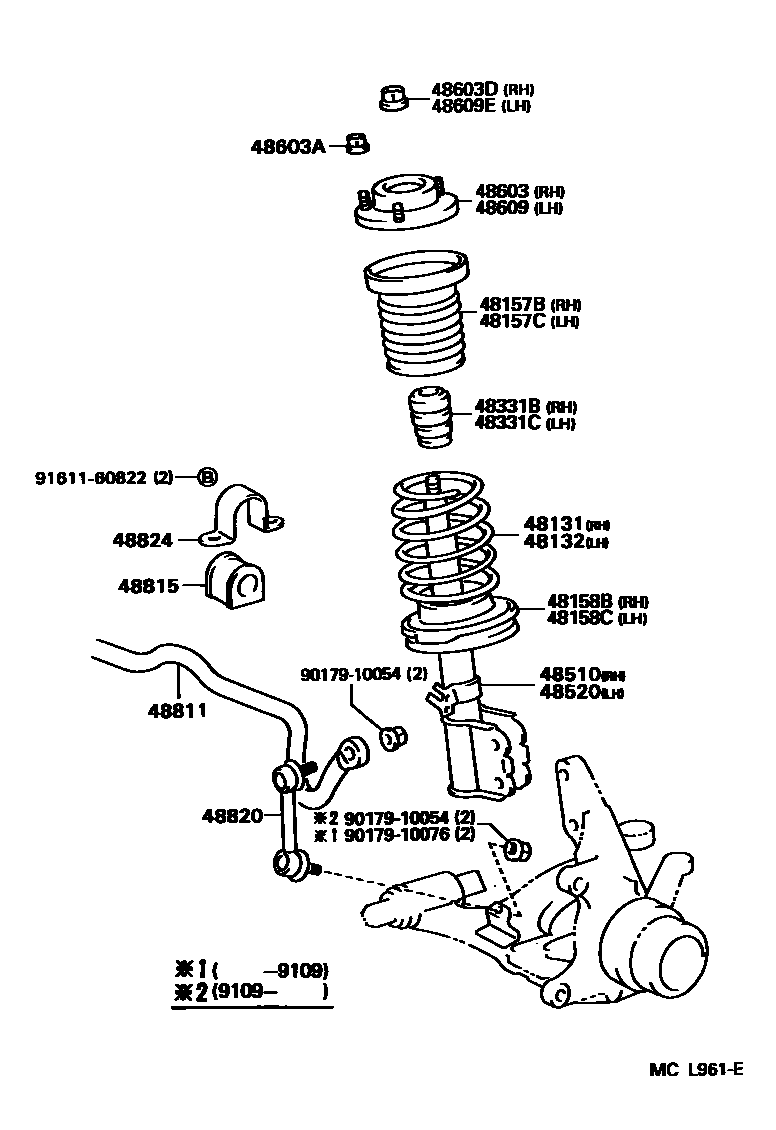

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
sub48331-06011
48331CBUMPER, FRONT SPRING, LH
sub48331-06011
48510ABSORBER ASSY, SHOCK, FRONT RH
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48811BAR, STABILIZER, FRONT
PINK PAINTED
BROWN PAINTED
48815BUSH, FRONT STABILIZER BAR, NO.1
48820LINK ASSY, FRONT STABILIZER
9017910054
main90179-10054
9017910076
main90179-10076
9161160822
main91611-60822
22 parts on this diagram · 2 diagrams in section
