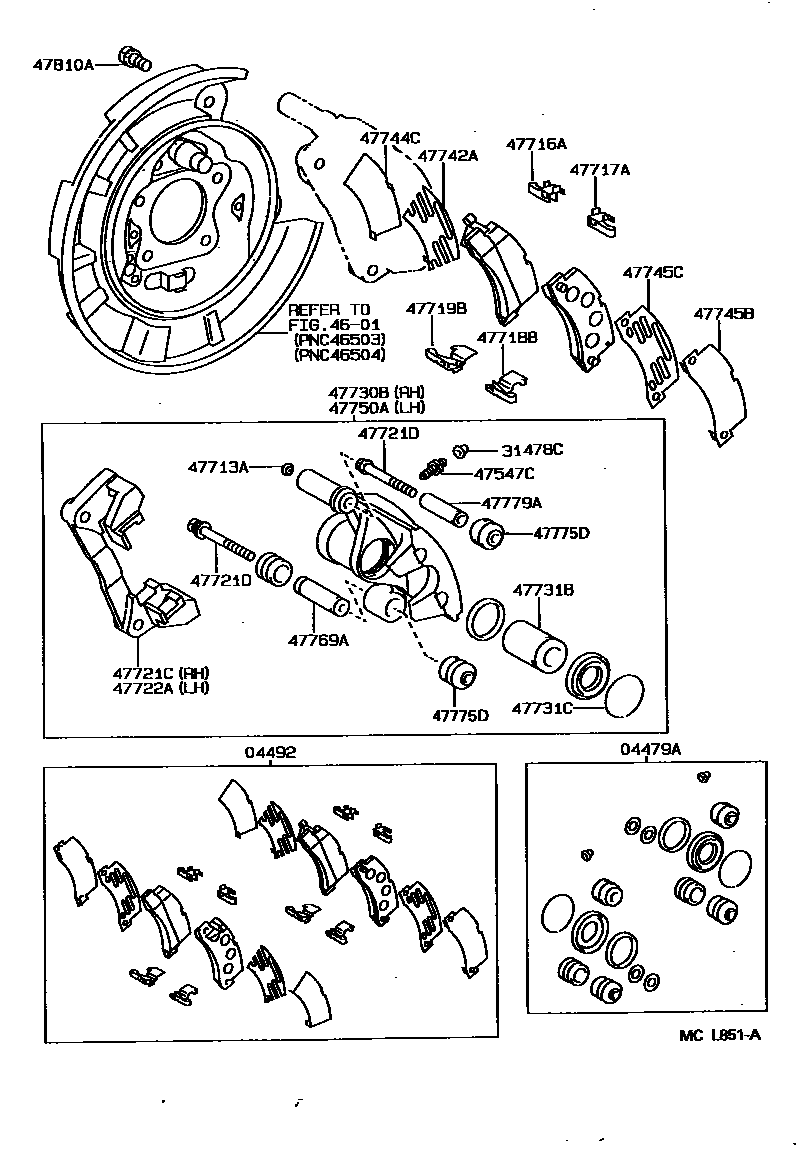

REAR DISC BRAKE CALIPER & DUST COVER
04479ACYLINDER KIT, DISC BRAKE, REAR
W(*66 & 3RD SEAT)
04492PAD KIT, DISC BRAKE, REAR
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
4601
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47713APLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)
47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)
47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)
47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
*8-1.25PX58-25
*8-1.25PX68-30
47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH
47730BCYLINDER ASSY, REAR DISC BRAKE, RH
47731BPISTON, REAR DISC BRAKE
W(*66 & 3RD SEAT)
47731CRING, SET(FOR REAR DISC BRAKE PISTON)
47742ASHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)
47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)
47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)
47745CSHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)
47750ACYLINDER ASSY, DISC BRAKE, REAR LH
47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)
47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47810ABOLT, HEXAGON(FOR REAR CALIPER)
25 parts on this diagram · 2 diagrams in section
