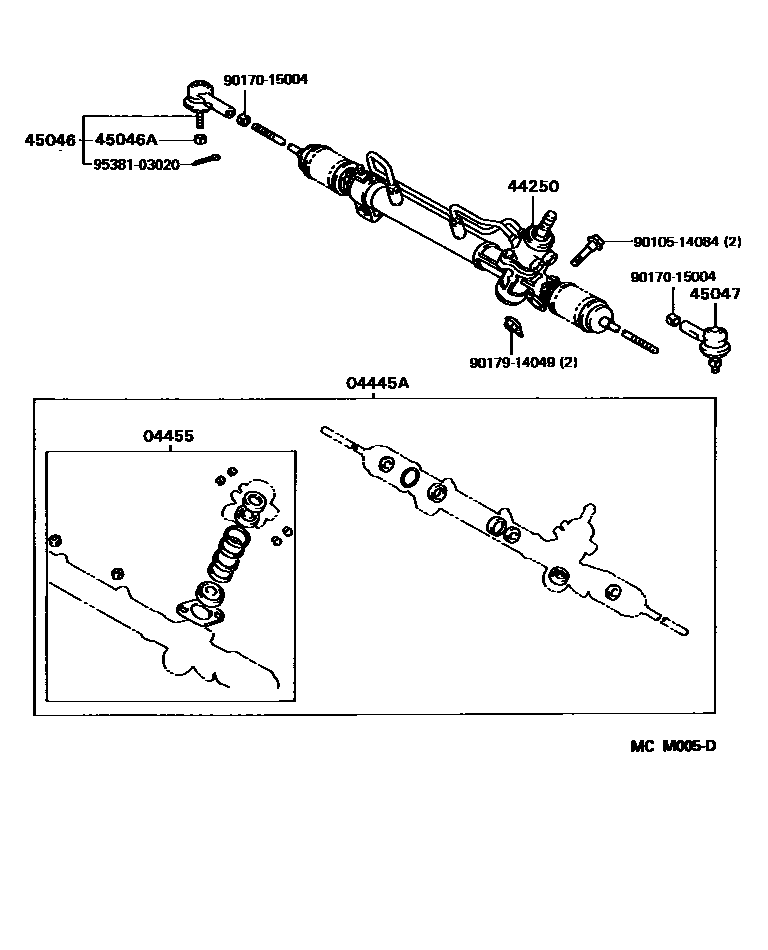

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-06010iSXV10,VCV10..NAP199203-199206

sub04445-06011

main04445-06011iSXV10,VCV10..NAP199206-199404

sub04445-06012

main04445-06012iSXV10,VCV10..NAP199404-199411

main04445-07010iSXV10,VCV10..NAP199411-199607

sub04445-07020

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-06010iSXV10,VCV10..NAP199203-199404

sub04455-06011

main04455-06011iSXV10,VCV10..NAP199404-199607

sub04455-07010

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-06030iSXV10..NAP..LHD199203-199309

sub44250-06031

main44250-06040iVCV10..NAP..LHD199203-199409

main44250-06050iSXV10..NAP..RHD199203-199406

sub44250-06051

main44250-06051iSXV10..NAP..RHD199406-199409

sub44250-06053

main44250-06052iSXV10,VCV10..NAP..RHD199409-199411

sub44250-06053

main44250-06053iSXV10,VCV10..NAP..RHD199411-199607

sub44250-06054

main44250-06060iVCV10..NAP..RHD199203-199409

main44250-06070iSXV10..NAP..LHD199309-199404

sub44250-06071

main44250-06070iSXV10..NAP..LHD199203-199309

W(3RD SEAT)

sub44250-06071

main44250-06071iSXV10..NAP..LHD199404-199408

sub44250-06073

main44250-06072iSXV10,VCV10..NAP..LHD199409-199411

sub44250-06073

main44250-06073iSXV10,VCV10..NAP..LHD199411-199607

sub44250-06074

45046END SUB-ASSY, TIE ROD, RH

main45046-09020iSXV10,VCV10..NAP199203-199607

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iSXV10,VCV10..NAP199203-199607

45047END SUB-ASSY, TIE ROD, LH

main45046-09020iSXV10,VCV10..NAP199203-199607

9010514084

main90105-14084

9017015004

main90170-15004

9017914049

main90179-14049

9538103020

main95381-03020

10 parts on this diagram · 4 diagrams in section
