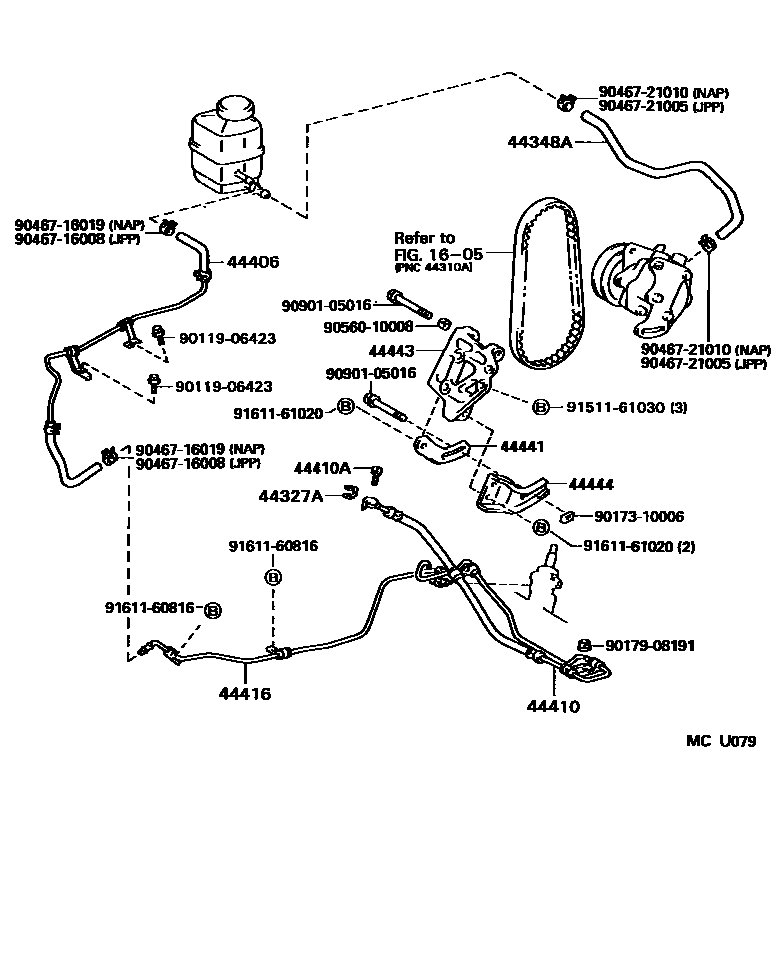

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iSXV10..NAP199203-199607

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-06040iVCV10..NAP..LHD199408-199607

main44348-06060iVCV10..NAP..RHD199408-199607

main44348-06080iSXV10..NAP..LHD199311-199409

main44348-06120iSXV10..NAP..LHD199408-199607

main44348-06130iSXV10..NAP..RHD199408-199607

main44348-33010iVCV10..NAP..LHD199203-199607

main44348-33030iVCV10..NAP..RHD199203-199607

main44348-33070iSXV10..NAP..LHD199203-199408

main44348-33080iSXV10..NAP..RHD199203-199409

44406TUBE SUB-ASSY, RETURN

main44406-06011iVCV10..NAP199203-199308

sub44406-06012

main44406-06012iVCV10..NAP199308-199607

main44406-06020iSXV10..NAP199203-199607

44410TUBE ASSY, PRESSURE FEED

main44410-06010iVCV10..NAP..LHD199203-199607

sub44410-06080

main44410-06021iSXV10..NAP..LHD199408-199607

main44410-06030iVCV10..NAP..RHD199203-199607

main44410-06041iSXV10..NAP..RHD199408-199607

main44410-06060iSXV10..NAP..LHD199203-199408

main44410-06070iSXV10..NAP..RHD199203-199408

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iSXV10..NAP199203-199607

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-06010iSXV10,VCV10..NAP..LHD199203-199607

main44416-06030iSXV10,VCV10..NAP..RHD199203-199210

sub44416-06031

main44416-06031iSXV10,VCV10..NAP..RHD199210-199607

44441BRACKET, PUMP, FRONT

main44441-32010iSXV10..NAP199408-199607

44443BRACKET, PUMP

main44443-20050iSXV10..NAP199408-199607

main44443-33010iVCV10..NAP199203-199607

main44443-33020iSXV10..NAP199203-199408

44444STAY, PUMP, REAR

main44444-20030iSXV10..NAP199408-199607

9011906423

main90119-06423

9017310006

main90173-10006

9017908191

main90179-08191

9046716008

main90467-16008

9046716019

main90467-16019

9046721005

main90467-21005

9046721010

main90467-21010

9056010008

main90560-10008

9090105016

main90901-05016

9151161030

main91511-61030

9161160816

main91611-60816

9161161020

main91611-61020

22 parts on this diagram · 4 diagrams in section
