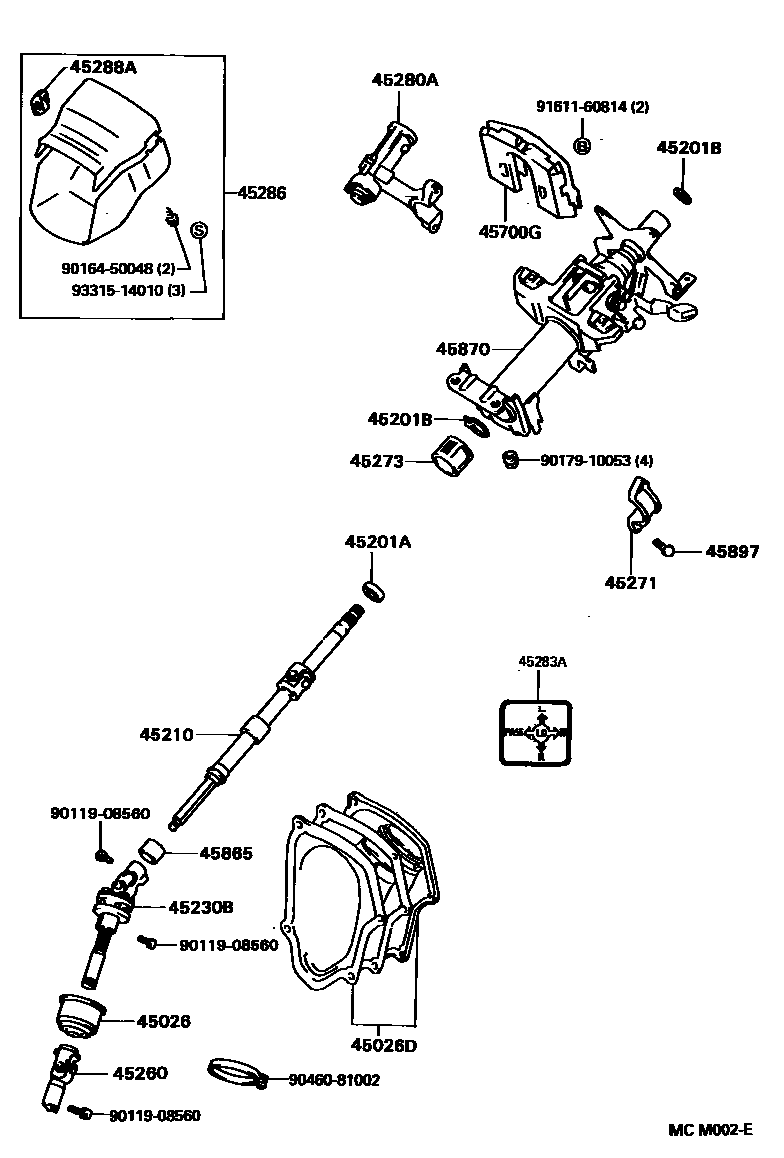

STEERING COLUMN & SHAFT
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026DCOVER SUB-ASSY, STEERING COLUMN HOLE
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
T=1.20,UPR
T=1.20
T=1.20,LWR
45210SHAFT ASSY, STEERING MAIN
45230BJOINT ASSY, STEERING SHAFT UNIVERSAL
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
sub45260-06011
sub45260-33030
sub45260-33040
sub45260-33031
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45286COVER, STEERING COLUMN
sub45286-33915
W(*80 & *CRC),BLACK,TRIM1#,4#
sub45286-33915
W(*CRC)
45288ASPACER, COLUMN COVER
45700GDAMPER ASSY, STEERING
45865COLLAR, STEERING MAIN SHAFT
45897BOLT, STEERING LOCK SET
9011908560
main90119-08560
9016450048
main90164-50048
9017910053
main90179-10053
9046081002
main90460-81002
9161160814
main91611-60814
9331514010
main93315-14010
23 parts on this diagram · 1 diagram in section
