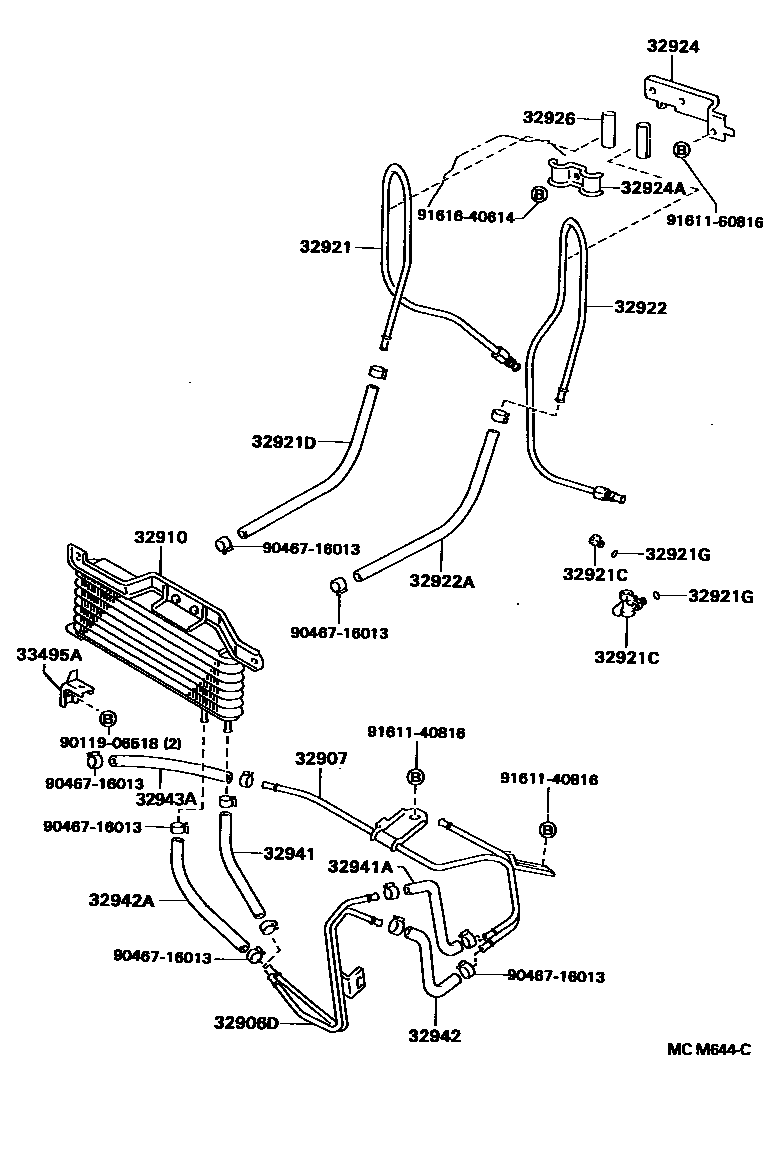

OIL COOLER & TUBE (ATM)
32906DTUBE SUB-ASSY, OIL COOLER, NO.2
32907TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2
32910COOLER ASSY, OIL
32921TUBE, OIL COOLER INLET, NO.1
32921CUNION(FOR OIL COOLER TUBE)
OUTLET
INLET
32921DHOSE(FOR OIL COOLER INLET)
32921GRING, O(FOR OIL COOLER TUBE UNION)
32922TUBE, OIL COOLER OUTLET, NO.1
32922AHOSE(FOR OIL COOLER OUTLET)
32924CLAMP, OIL COOLER TUBE, NO.2
32924ACLAMP(FOR OIL COOLER TUBE, NO.2)
32926CUSHION, OIL COOLER TUBE(ATM)
L=36,ID=10
32941HOSE, OIL COOLER INLET, NO.1
32941AHOSE, OIL COOLER INLET, NO.2
32942HOSE, OIL COOLER OUTLET, NO.1
32942AHOSE, OIL COOLER OUTLET, NO.2
32943AHOSE, TRANSMISSION OIL COOLER, NO.2
33495ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
9011906518
main90119-06518
9046716013
main90467-16013
9161140816
main91611-40816
9161160816
main91611-60816
9161640614
main91616-40614
23 parts on this diagram · 2 diagrams in section
