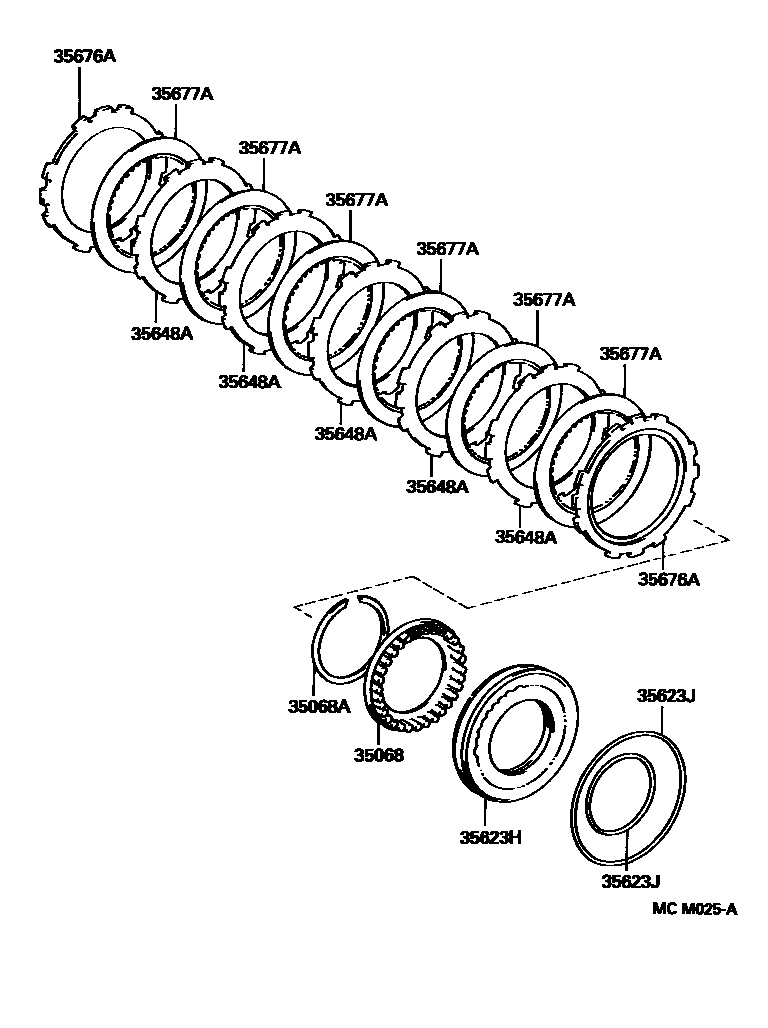

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1 0002 1

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-32010iSXV10..NAP..ATM199203-199607

sub35068-20010

main35068-32020iVCV10..NAP..ATM199203-199607

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-86004iVCV10..NAP..ATM199203-199607

main90520-90001iSXV10..NAP..ATM199203-199607

35623HPISTON, 1ST & REVERSE BRAKE

main35623-32010iSXV10..NAP..ATM199203-199402

main35623-32030iVCV10..NAP..ATM199203-199607

main35623-32050iSXV10..NAP..ATM199402-199607

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-90001iVCV10..NAP..ATM199203-199607

INNER

main90301-94001iSXV10..NAP..ATM199203-199607

INNER

main90301-99022iSXV10,VCV10..NAP..ATM199203-199607

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020iSXV10..NAP..ATM199203-199607

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010iVCV10..NAP..ATM199203-199607

T=3.5

sub35676-12030

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-32040iSXV10..NAP..ATM199203-199402

main35677-32060iVCV10..NAP..ATM199203-199607

7 parts on this diagram · 2 diagrams in section
