CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

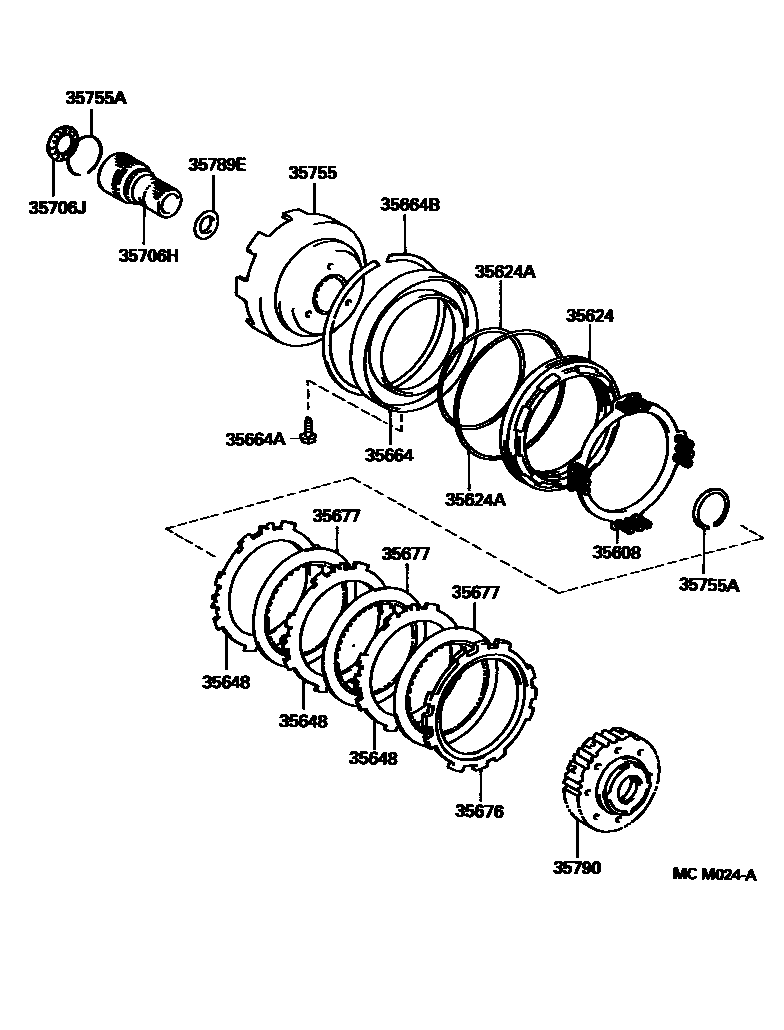

Parts diagram
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
main35608-32010i199203-199607
35624PISTON, 2ND BRAKE
main35624-32010i199203-199607
35624ARING, O (FOR 2ND BRAKE PISTON)
main90301-99021i199203-199607
INNER
main90301-99023i199203-199607
OUTER
35648PLATE, CLUTCH (FOR 2ND BRAKE)
main35648-32010i199203-199607
T=1.8
main35648-32030i199203-199607
T=1.8
35664CYLINDER, 2ND BRAKE
main35664-32010i199203-199607
35664ABOLT (FOR 2ND BRAKE CYLINDER)
main90109-06060i199203-199607
35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)
main90521-99013i199203-199607
35676FLANGE, BRAKE (FOR 2ND BRAKE)
main35676-32010i199203-199607
T=3.5
sub35676-12030
35677DISC, CLUTCH (FOR 2ND BRAKE)
main35677-32050i199203-199607
main35677-33020i199203-199411
sub35677-33021
main35677-33021i199411-199607
35706HGEAR SUB-ASSY, PLANETARY SUN
main35706-12010i199210-199607
main35706-32030i199203-199210
sub35706-12010
main35706-33010i199203-199212
sub35706-33011
main35706-33011i199212-199607
sub35706-33012
35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
main90374-30006i199203-199607
main90374-30008i199203-199607
sub90374-30014
35755DRUM, SUN GEAR INPUT
main35755-32020i199203-199607
main35755-32030i199203-199607
35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)
main90520-36017i199203-199607
T=1.4,ID=36
main90520-44002i199203-199607
T=1.2,ID=44.0,T=1.2,ID=44.0
main90520-47003i199203-199607
T=2.3,ID=47.1,T=2.3,ID=47.1
35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)
main35789-22010i199203-199607
35790CLUTCH ASSY, 1 WAY
main35790-32031i199203-199607
main35790-32050i199203-199607

15 parts on this diagram · 1 diagram in section
