IGNITION COIL & SPARK PLUG / GLOW PLUG

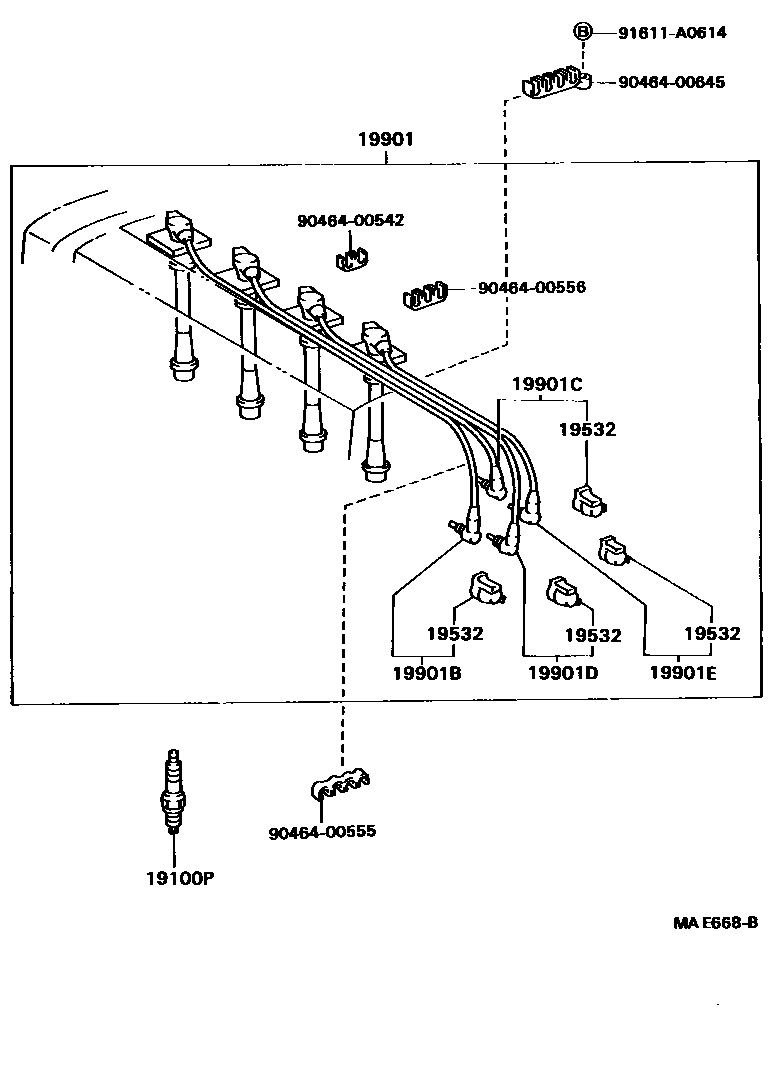

Parts diagram
19100PPLUG, SPARK
main90919-01127i199203-199607
PQ20R
main90919-01184i199203-199607
K20R-U11
19532HOLDER, RESISTIVE CODE, NO.2
main19532-46010i199203-199309
main19532-46010i199309-199607
NO.1
main19532-50010i199309-199408
NO.2
main19539-74030i199408-199607
NO.2
19901CORD SET, COIL & SPARK, W/RESISTIVE
main90919-21519i199203-199607
sub90919-21607
main90919-22319i199203-199309
main90919-22370i199309-199607
19901BCORD, SPARK PLUG RESISTIVE, NO.1
main90080-91038i199203-199309
main90919-15165i199203-199309
SUMITOMO
main90919-15169i199203-199309
YAZAKI
main90919-15173i199203-199607
sub90919-15518
main90919-15406i199309-199407
SUMITOMO
sub90919-15409
main90919-15409i199309-199407
YAZAKI
main90919-15409i199408-199607
19901CCORD, SPARK PLUG RESISTIVE, NO.2
main90080-91039i199203-199309
main90919-15166i199203-199309
SUMITOMO
main90919-15170i199203-199309
YAZAKI
main90919-15176i199203-199607
sub90919-15521
main90919-15411i199309-199607
19901DCORD, SPARK PLUG RESISTIVE, NO.3
main90080-91040i199203-199309
main90919-15167i199203-199309
SUMITOMO
main90919-15171i199203-199309
YAZAKI
main90919-15174i199203-199607
sub90919-15519
main90919-15410i199309-199607
19901ECORD, SPARK PLUG RESISTIVE, NO.4
main90080-91041i199203-199309
main90919-15168i199203-199309
SUMITOMO
main90919-15172i199203-199309
YAZAKI
main90919-15177i199203-199607
sub90919-15522
main90919-15261i199309-199607
9046400542
main90464-00542
9046400555
main90464-00555
9046400556
main90464-00556
9046400645
main90464-00645
91611A0614
main91611-A0614

12 parts on this diagram · 3 diagrams in section
