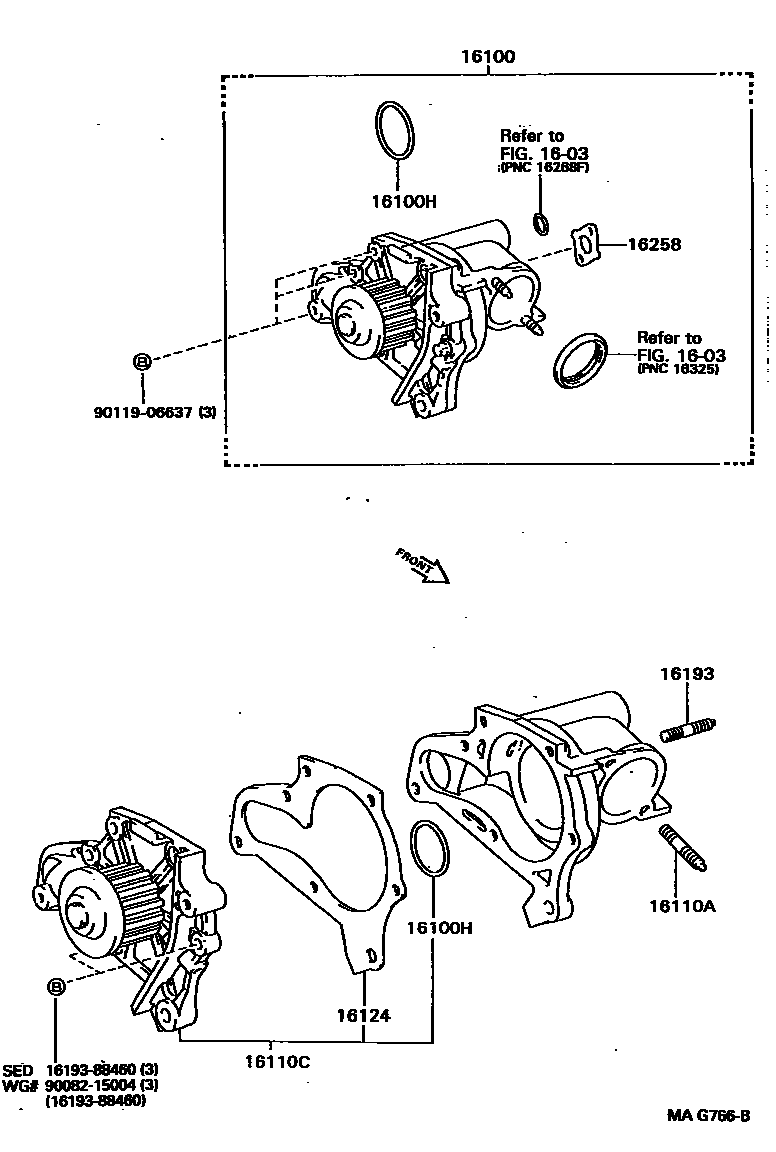

WATER PUMP

0001 1 0002 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-09040i5SFE..SXV10..NAP199203-199607

(L)

sub16100-09041

main16100-69305i3VZFE..VCV10..NAP199203-199208

sub12315-62031

main16100-69335i3VZFE..VCV10..NAP199208-199607

sub16100-69455

main16100-79185i5SFE..SXV10..NAP199203-199607

(J)

sub16100-79186

16100HRING, O(FOR WATER PUMP)

main90301-37005i5SFE..SXV10..NAP199203-199607

16110ABOLT, STUD(FOR WATER OUTLET SETTING)

main16193-03010×2i5SFE..SXV10..NAP199203-199607

(L)

main16193-63010×2i5SFE..SXV10..NAP199203-199607

(J)

16110CPUMP ASSY, WATER, W/O COVER

main16110-09010i5SFE..SXV10..NAP199408-199607

(L)

sub16110-79026

sub93220-16020

main16110-79025i5SFE..SXV10..NAP199203-199607

(J)

sub16110-79026

sub93220-16020

16124GASKET, WATER PUMP COVER

main16124-03010i5SFE..SXV10..NAP199203-199604

(L)

main16124-03011i5SFE..SXV10..NAP199604-199607

(L)

main16124-74020i5SFE..SXV10..NAP199203-199309

(J)

main16124-88460i5SFE..SXV10..NAP199309-199607

(J)

16193BOLT, STUD(FOR WATER PUMP COVER)

main90029-01500×2i5SFE..SXV10..NAP199203-199607

(J)

main90080-11042×2i5SFE..SXV10..NAP199203-199607

(L)

16258GASKET(FOR HEATER RETURN)

main16258-03020i5SFE..SXV10..NAP199408-199607

(L)

main16258-74020i5SFE..SXV10..NAP199203-199309

main16258-74021i5SFE..SXV10..NAP199309-199607

(J)

1619388460BOLT, STUD(FOR WATER PUMP COVER)

main16193-88460

9008215004

main90082-15004

9011906637

main90119-06637

11 parts on this diagram · 2 diagrams in section
