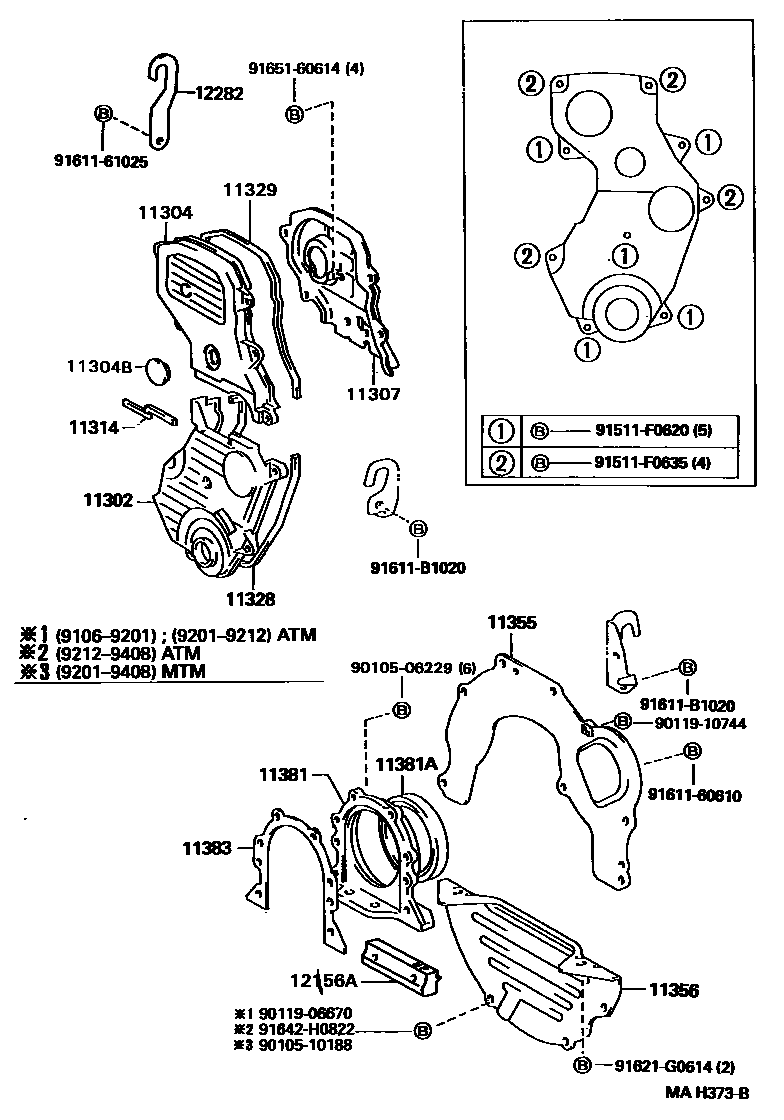

TIMING GEAR COVER & REAR END PLATE
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11304COVER, TIMING CHAIN OR BELT, NO.2
11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
OD=33
11307COVER, SUB-ASSY, TIMING BELT, NO.3
11314GASKET, TIMING CHAIN NO.2 COVER
(L)
(J)
11328GASKET, TIMING GEAR OR CHAIN COVER
(L)
(J)
11329GASKET, TIMING GEAR REAR COVER
(L)
(J)
11355PLATE, REAR END
11356PLATE, REAR END, NO.2
(L)
(J)
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
(L)
NOK
11383GASKET, ENGINE REAR OIL SEAL RETAINER
(L)
(J)
12282HANGER, ENGINE, NO.2
9010506229
main90105-06229
9010510188
main90105-10188
9011906670
main90119-06670
9011910744
main90119-10744
91511F0620
main91511-F0620
91511F0635
main91511-F0635
9161160610
main91611-60610
9161161025
main91611-61025
91611B1020
main91611-B1020
91621G0614
main91621-G0614
91642H0822
main91642-H0822
9165160614
main91651-60614
26 parts on this diagram · 3 diagrams in section
