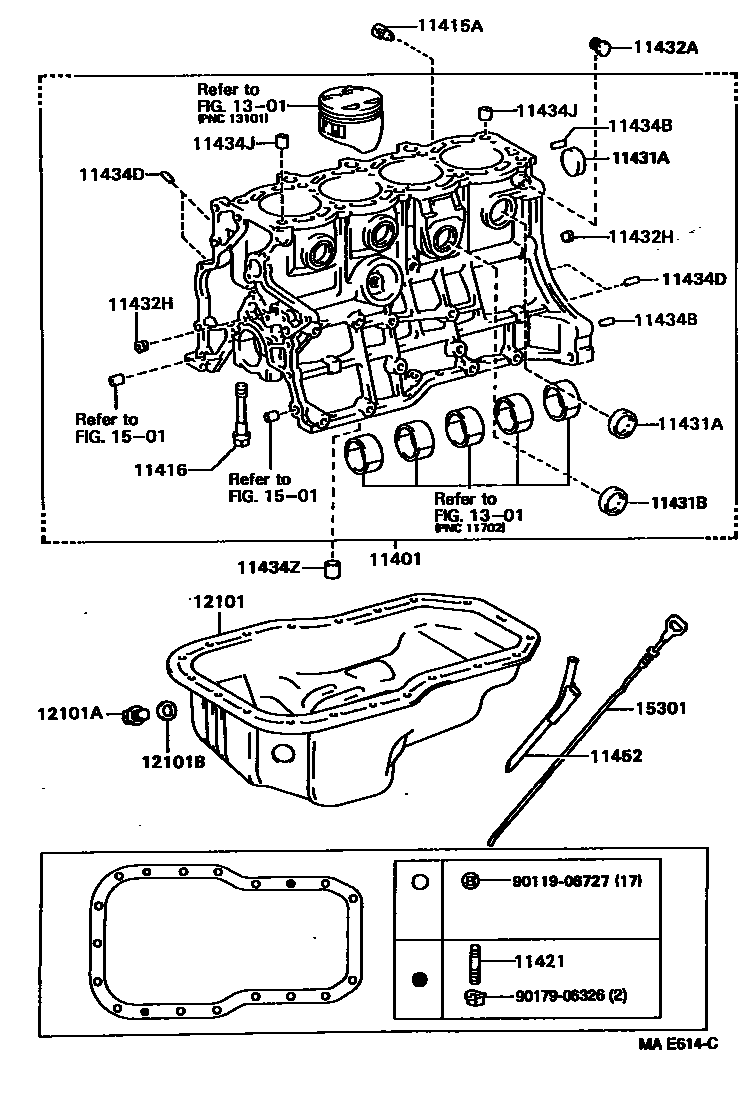

CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-69457i3VZFE..VCV10..NAP199203-199607

main11401-79565i5SFE..SXV10..NAP199203-199508

sub11401-79566

main11401-79566i5SFE..SXV10..NAP199508-199607

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09095i3VZFE..VCV10..NAP199307-199607

main90910-09100i3VZFE..VCV10..NAP199203-199307

sub90910-09095

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52001i5SFE..SXV10..NAP199203-199607

main90910-09087i3VZFE..VCV10..NAP199307-199607

main96432-23814i3VZFE..VCV10..NAP199203-199307

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10028i5SFE..SXV10..NAP199203-199607

main90910-02072i3VZFE..VCV10..NAP199203-199607

sub90910-02176

11421BOLT, STUD(FOR OIL PAN)

main90116-06022i5SFE..SXV10..NAP199203-199607

main90116-06119i3VZFE..VCV10..NAP199203-199607

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-35005i3VZFE..VCV10..NAP199406-199607

main96411-43500i5SFE..SXV10..NAP199203-199607

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000i5SFE..SXV10..NAP199203-199607

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-51006i5SFE..SXV10..NAP199203-199607

11432HPLUG, W/HEAD TAPER SCREW, NO.5

main90344-53006i5SFE..SXV10..NAP199203-199607

main90344-53015i3VZFE..VCV10..NAP199203-199607

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113i5SFE..SXV10..NAP199203-199607

L=22,OD=10

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i3VZFE..VCV10..NAP199203-199607

L=14,OD=6

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017i5SFE..SXV10..NAP199203-199607

main90253-16001i3VZFE..VCV10..NAP199203-199607

11434ZPIN, RING(FOR BALANCER)

main90253-13001i5SFE..SXV10..NAP199203-199607

11452GUIDE, OIL LEVEL GAGE

main11452-03020i5SFE..SXV10..NAP199203-199607

(L)

main11452-62030i3VZFE..VCV10..NAP199203-199607

main11452-74070i5SFE..SXV10..NAP199203-199607

(J)

12101PAN SUB-ASSY, OIL

main12101-62060i3VZFE..VCV10..NAP199203-199607

main12101-74090i5SFE..SXV10..NAP199203-199607

sub12101-74091

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i3VZFE..VCV10..NAP199203-199607

main90341-12026i5SFE..SXV10..NAP199203-199607

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12027i5SFE..SXV10..NAP199203-199312

sub90430-12031

main90430-12031i5SFE..SXV10..NAP199312-199607

1301

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-62040i3VZFE..VCV10..NAP199203-199607

main15301-74070i5SFE..SXV10..NAP199203-199607

9011906727

main90119-06727

9017906326

main90179-06326

22 parts on this diagram · 2 diagrams in section
