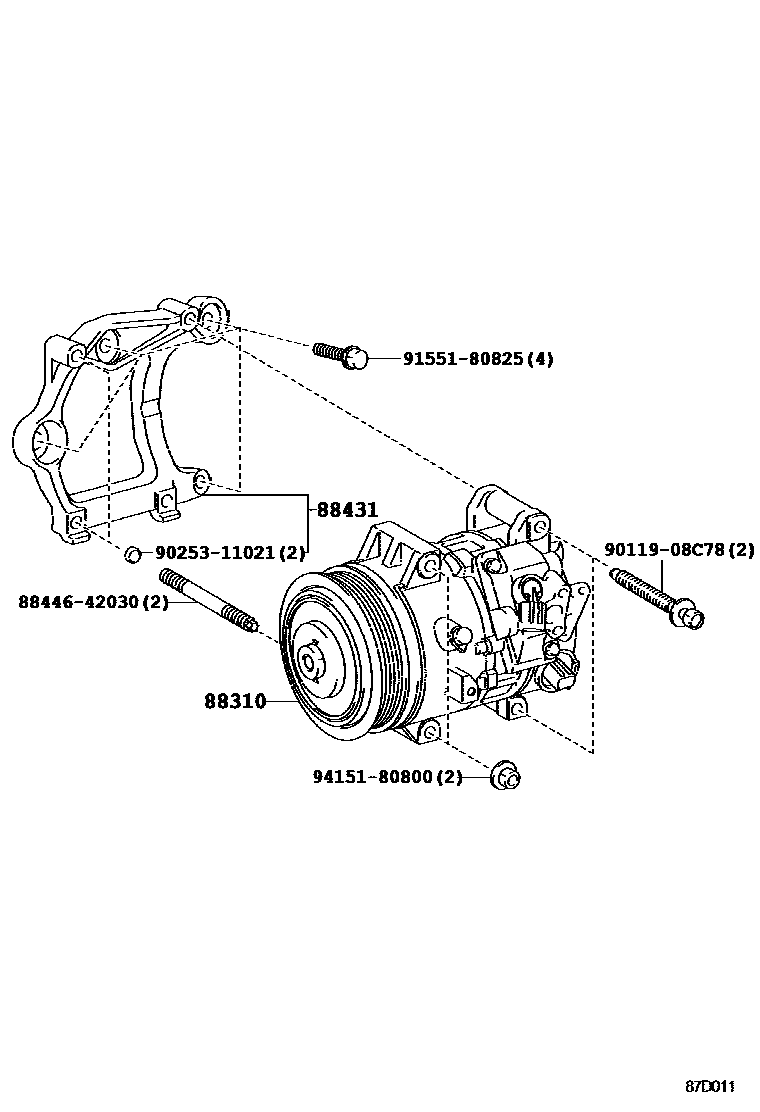

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-42333iASV60201206-201209

sub88310-42334

main88310-42334iASV60201210-201507

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-36010iASV6#201206-201507

main88431-33050iAVV60201206-201507

8844642030BOLT, IDLE PULLEY

main88446-42030

9011908C78

main90119-08C78

9025311021

main90253-11021

9155180825

main91551-80825

9415180800

main94151-80800

7 parts on this diagram · 4 diagrams in section
