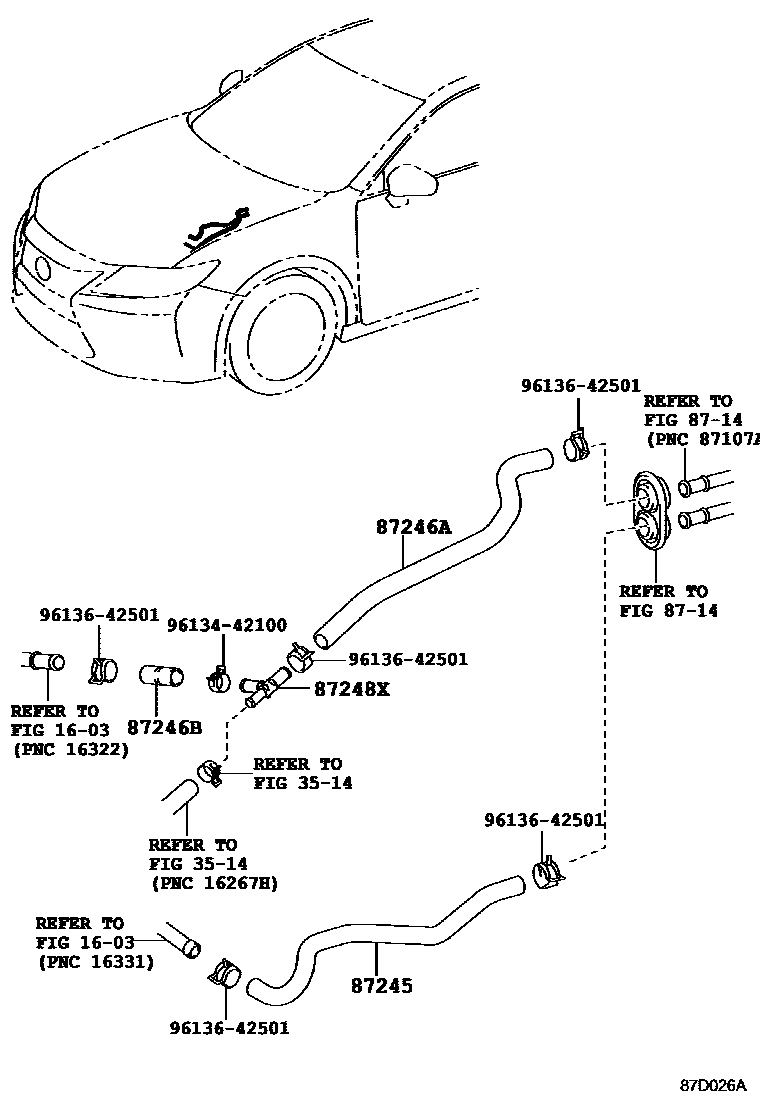

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

1603

3514

8714

87245HOSE, HEATER WATER, INLET

main87245-33630iGSV60201206-201507

main87245-33650iASV60201206-201507

main87245-33770iAVV60201206-201507

main87245-33780iASV61201507

87246HOSE, HEATER WATER, OUTLET

main87245-33680iAVV60201206-201507

87246AHOSE, HEATER WATER, OUTLET A

main87245-33720iGSV60201206-201507

main87245-33730iASV60201206-201507

main87245-33800iASV61201507

87246BHOSE, HEATER WATER, OUTLET B

main87245-33620iASV60201206-201507

main87245-33710iASV61,GSV60201206-201507

87248XPIPE, HEATER WATER

main87248-33020iASV60201206-201507

main87248-33030iGSV60201206-201507

9613442100

main96134-42100

9613642501

main96136-42501

10 parts on this diagram · 4 diagrams in section
