E
EPC Data

MIRROR

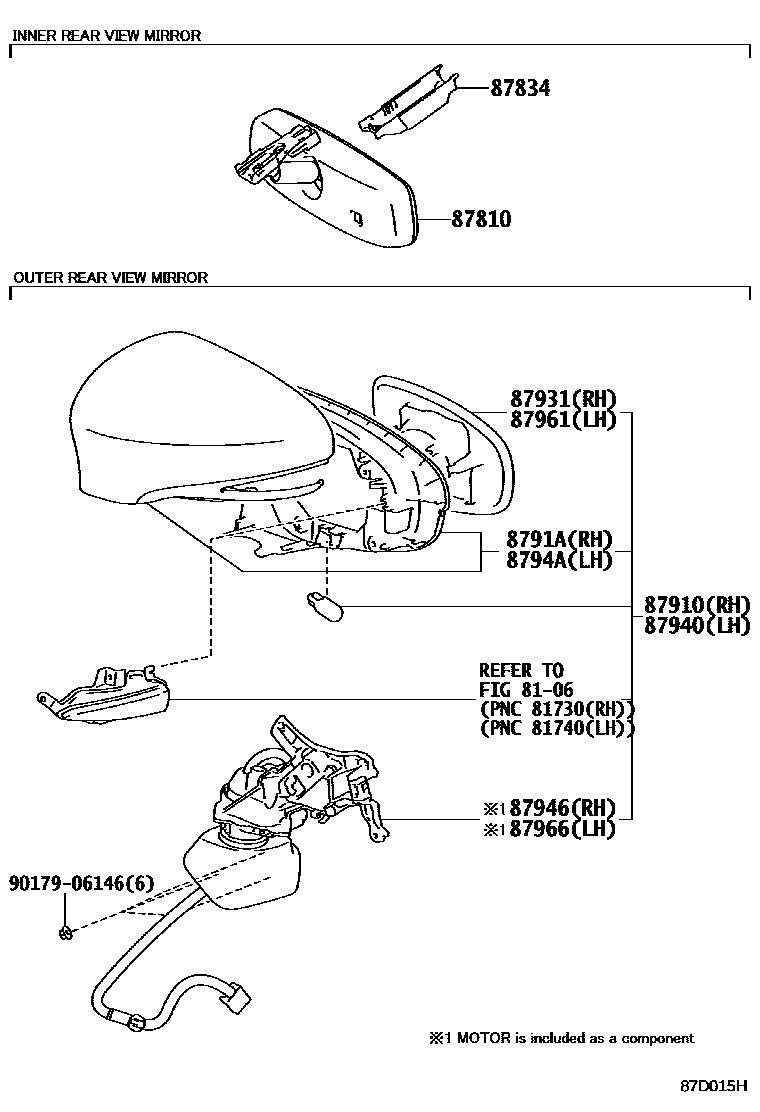

Parts diagram
8106
87810MIRROR ASSY, INNER REAR VIEW
main87810-0WB10i201206-201507
main87810-0WP60supersedes 87810-0WP50i201507
PRE-COLLISION SYSTEM-WITH
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-33040i201507
main87818-76010i201206-201507
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-33B21-A0supersedes 87910-33B31-A0i201308-201507
WHITE PEARL CS.,077
main87910-33B21-B0supersedes 87910-33B31-B0i201308-201507
MERCURY GRAY MC.,1H9
main87910-33B21-B1supersedes 87910-33B31-B1i201308-201507
PLATINUM SILVER ME.,1J4
main87910-33B21-B2i201408-201507
SONIC TITANIUM,1J7
main87910-33B21-C1supersedes 87910-33B31-C1i201308-201507
STARLIGHT BLACK GF.,217
main87910-33B21-D0supersedes 87910-33B31-D0i201308-201507
RED MC.CS.,3R1
main87910-33B21-E0supersedes 87910-33B31-E0i201308-201507
SLEEK ECRU ME.,4U7
main87910-33B21-E1supersedes 87910-33B31-E1i201308-201507
FIRE AGATE M.M.,4V3
main87910-33B21-J0supersedes 87910-33B31-J0i201308-201408
SILVERY BLUE ME.,8U9
main87910-33B21-J1supersedes 87910-33B31-J1i201308-201507
LAPIS LAZULI MC.,8V3
main87910-33B31-C0i201307-201308
BLACK,212
main87910-33B60-A0supersedes 87910-33B21-A0i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,WHITE PEARL CS.,077
main87910-33B60-B0supersedes 87910-33B21-B0i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,MERCURY GRAY MC.,1H9
main87910-33B60-B1supersedes 87910-33B30-B1i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,PLATINUM SILVER ME.,1J4
main87910-33B60-C0supersedes 87910-33B21-C0i201206-201307
BLIND SPOT MONITOR-WITH,BLACK,212
main87910-33B60-C1supersedes 87910-33B21-C1i201206-201307
BLIND SPOT MONITOR-WITH,STARLIGHT BLACK GF.,217
main87910-33B60-D0supersedes 87910-33B30-D0i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,RED MC.CS.,3R1
main87910-33B60-E0supersedes 87910-33B21-E0i201206-201307
BLIND SPOT MONITOR-WITH,SLEEK ECRU ME.,4U7
main87910-33B60-E1supersedes 87910-33B30-E1i201206-201307
BLIND SPOT MONITOR-WITH,FIRE AGATE M.M.,4V3
main87910-33B60-J0supersedes 87910-33B30-J0i201206-201307
BLIND SPOT MONITOR-WITH,SILVERY BLUE ME.,8U9
main87910-33B60-J1supersedes 87910-33B30-J1i201206-201307
BLIND SPOT MONITOR-WITH,LAPIS LAZULI MC.,8V3
main87910-33B61-A0i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077
main87910-33B61-B0i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9
main87910-33B61-B1i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),PLATINUM SILVER ME.,1J4
main87910-33B61-B2i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7
main87910-33B61-C0i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212
main87910-33B61-C1i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217
main87910-33B61-D0i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1
main87910-33B61-E0i201408-201507
G PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7
main87910-33B61-E1i201307-201408
BLIND SPOT MONITOR-WITH,FIRE AGATE M.M.,4V3
main87910-33B61-J0supersedes 87910-33B21-J0i201307-201408
BLIND SPOT MONITOR-WITH,SILVERY BLUE ME.,8U9
main87910-33B61-J1i201307-201408
BLIND SPOT MONITOR-WITH,LAPIS LAZULI MC.,8V3
main87910-33B62-A1supersedes 87910-33B23-A1i201507-201510
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085
main87910-33B62-B0supersedes 87910-33B23-B0i201507-201510
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9
main87910-33B62-B1supersedes 87910-33B23-B1i201507-201510
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),PLATINUM SILVER ME.,1J4
main87910-33B62-B2supersedes 87910-33B23-B2i201507-201510
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7
main87910-33B62-C0supersedes 87910-33B33-C0i201507-201510
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212
main87910-33B62-C2supersedes 87910-33B23-C2i201507-201510
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACKGF.,223
main87910-33B62-D0supersedes 87910-33B33-D0i201507-201510
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1
main87910-33B62-E0supersedes 87910-33B23-E0i201507-201510
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7
main87910-33B62-E2supersedes 87910-33B23-E2i201507-201510
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2
main87910-33B62-J2supersedes 87910-33B33-J2i201507-201510
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEP BLUE MC.,8X5
main87910-33B63-A1supersedes 87910-33B33-A1i201511
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085
main87910-33B63-B0supersedes 87910-33B33-B0i201511
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9
main87910-33B63-B1supersedes 87910-33B33-B1i201511
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),PLATINUM SILVER ME.,1J4
main87910-33B63-B2supersedes 87910-33B33-B2i201511
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7
main87910-33B63-C0supersedes 87910-33B33-C0i201511
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212
main87910-33B63-C2supersedes 87910-33B33-C2i201511
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACKGF.,223
main87910-33B63-D0supersedes 87910-33B33-D0i201511
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1
main87910-33B63-E0supersedes 87910-33B33-E0i201511
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7
main87910-33B63-E2supersedes 87910-33B23-E2i201511
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2
main87910-33B63-J2supersedes 87910-33B33-J2i201511
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEP BLUE MC.,8X5
8791ACOVER, OUTER MIRROR, RH NO.2
main8791A-76070-A0i201206-201507
WHITE PEARL CS.,077
main8791A-76070-A2i201507
SONIC QUARTZ,085
main8791A-76070-B1i201507
MERCURY GRAY MC.,1H9
main8791A-76070-B3i201507
PLATINUM SILVER ME.,1J4
main8791A-76070-B4i201408-201507
SONIC TITANIUM,1J7
main8791A-76070-C0i201206-201507
BLACK,212 ,2MH
main8791A-76070-C2i201206-201507
STARLIGHT BLACK GF.,217
main8791A-76070-C3i201507
GRAPHITE BLACK GF.,223
main8791A-76070-D0i201507
RED MC.CS.,3R1
main8791A-76070-E0i201206-201507
FIRE AGATE M.M.,4V3
main8791A-76070-E1i201206-201507
SLEEK ECRU ME.,4U7
main8791A-76070-E3i201507
AMBER CS.,4X2
main8791A-76070-J1i201206-201408
SILVERY BLUE ME.,8U9
main8791A-76070-J2i201206-201507
LAPIS LAZULI MC.,8V3
main8791A-76070-J4i201507
DEEP BLUE MC.,8X5
87931OUTER MIRROR, RH
main87931-33B20i201507
main87931-33B60i201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-33B11-A0supersedes 87940-33B21-A0i201308-201507
WHITE PEARL CS.,077
main87940-33B11-B0supersedes 87940-33B21-B0i201308-201507
MERCURY GRAY MC.,1H9
main87940-33B11-B1supersedes 87940-33B21-B1i201308-201507
PLATINUM SILVER ME.,1J4
main87940-33B11-B2i201408-201507
SONIC TITANIUM,1J7
main87940-33B11-C1supersedes 87940-33B21-C1i201308-201507
STARLIGHT BLACK GF.,217
main87940-33B11-D0supersedes 87940-33B21-D0i201308-201507
RED MC.CS.,3R1
main87940-33B11-E0supersedes 87940-33B21-E0i201308-201507
SLEEK ECRU ME.,4U7
main87940-33B11-E1supersedes 87940-33B21-E1i201308-201507
FIRE AGATE M.M.,4V3
main87940-33B11-J0supersedes 87940-33B21-J0i201308-201408
SILVERY BLUE ME.,8U9
main87940-33B11-J1supersedes 87940-33B21-J1i201308-201507
LAPIS LAZULI MC.,8V3
main87940-33B21-C0i201307-201308
BLACK,212
main87940-33B50-A0supersedes 87940-33B11-A0i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,WHITE PEARL CS.,077
main87940-33B50-B0supersedes 87940-33B11-B0i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,MERCURY GRAY MC.,1H9
main87940-33B50-B1supersedes 87940-33B11-B1i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,PLATINUM SILVER ME.,1J4
main87940-33B50-C0supersedes 87940-33B20-C0i201206-201307
BLIND SPOT MONITOR-WITH,BLACK,212
main87940-33B50-C1supersedes 87940-33B11-C1i201206-201307
BLIND SPOT MONITOR-WITH,STARLIGHT BLACK GF.,217
main87940-33B50-D0supersedes 87940-33B11-D0i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,RED MC.CS.,3R1
main87940-33B50-E0supersedes 87940-33B11-E0i201206-201307
BLIND SPOT MONITOR-WITH,SLEEK ECRU ME.,4U7
main87940-33B50-E1supersedes 87940-33B20-E1i201206-201307
BLIND SPOT MONITOR-WITH,FIRE AGATE M.M.,4V3
main87940-33B50-J0supersedes 87940-33B20-J0i201206-201307
BLIND SPOT MONITOR-WITH,SILVERY BLUE ME.,8U9
main87940-33B50-J1supersedes 87940-33B20-J1i201206-201307
BLIND SPOT MONITOR-WITH,LAPIS LAZULI MC.,8V3
main87940-33B51-A0i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077
main87940-33B51-B0i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9
main87940-33B51-B1i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),PLATINUM SILVER ME.,1J4
main87940-33B51-B2i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7
main87940-33B51-C0i201307-201408
BLIND SPOT MONITOR-WITH,BLACK,212
main87940-33B51-C1i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),STARLIGHT BLACK GF.,217
main87940-33B51-D0i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1
main87940-33B51-E0i201408-201507
G PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7
main87940-33B51-E1i201307-201408
BLIND SPOT MONITOR-WITH,FIRE AGATE M.M.,4V3
main87940-33B51-J0supersedes 87940-33B11-J0i201307-201408
BLIND SPOT MONITOR-WITH,SILVERY BLUE ME.,8U9
main87940-33B51-J1i201408-201507
G PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),LAPIS LAZULI MC.,8V3
main87940-33B52-A1supersedes 87940-33B13-A1i201507-201510
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085
main87940-33B52-B0supersedes 87940-33B13-B0i201507-201510
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9
main87940-33B52-B1supersedes 87940-33B13-B1i201507-201510
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),PLATINUM SILVER ME.,1J4
main87940-33B52-B2supersedes 87940-33B13-B2i201507-201510
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7
main87940-33B52-C0supersedes 87940-33B23-C0i201507-201510
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212
main87940-33B52-C2supersedes 87940-33B23-C2i201507-201510
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACKGF.,223
main87940-33B52-D0supersedes 87940-33B23-D0i201507-201510
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1
main87940-33B52-E0supersedes 87940-33B23-E0i201507-201510
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7
main87940-33B52-E2supersedes 87940-33B13-E2i201507-201510
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2
main87940-33B52-J2supersedes 87940-33B13-J2i201507-201510
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEP BLUE MC.,8X5
main87940-33B53-A1supersedes 87940-33B13-A1i201511
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085
main87940-33B53-B0supersedes 87940-33B23-B0i201511
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9
main87940-33B53-B1supersedes 87940-33B23-B1i201511
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),PLATINUM SILVER ME.,1J4
main87940-33B53-B2supersedes 87940-33B13-B2i201511
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7
main87940-33B53-C0supersedes 87940-33B23-C0i201511
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212
main87940-33B53-C2supersedes 87940-33B23-C2i201511
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACKGF.,223
main87940-33B53-D0supersedes 87940-33B13-D0i201511
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1
main87940-33B53-E0supersedes 87940-33B23-E0i201511
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7
main87940-33B53-E2supersedes 87940-33B23-E2i201511
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2
main87940-33B53-J2supersedes 87940-33B23-J2i201511
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEP BLUE MC.,8X5
87946RETRACTOR, OUTER MIRROR, RH
main87908-33B01-A0i201308-201507
WHITE PEARL CS.,077
sub87908-33B02
sub82985-76011
main87908-33B01-B0i201308-201507
MERCURY GRAY MC.,1H9
sub87908-33B02
sub82985-76011
main87908-33B01-B1i201308-201507
PLATINUM SILVER ME.,1J4
sub87908-33B02
sub82985-76011
main87908-33B01-B2i201408-201507
SONIC TITANIUM,1J7
sub87908-33B02
sub82985-76011
main87908-33B01-C0i201308-201507
BLACK,212 ,2MH
sub87908-33B02
sub82985-76011
main87908-33B01-C1i201308-201507
STARLIGHT BLACK GF.,217
sub87908-33B02
sub82985-76011
main87908-33B01-D0i201308-201507
RED MC.CS.,3R1
sub87908-33B02
sub82985-76011
main87908-33B01-E0i201308-201507
SLEEK ECRU ME.,4U7
sub87908-33B02
sub82985-76011
main87908-33B01-E1i201308-201507
FIRE AGATE M.M.,4V3
sub87908-33B02
sub82985-76011
main87908-33B01-J0i201308-201408
SILVERY BLUE ME.,8U9
sub87908-33B02
sub82985-76011
main87908-33B01-J1i201308-201507
LAPIS LAZULI MC.,8V3
sub87908-33B02
sub82985-76011
main87908-33B50-A0supersedes 87908-33B31-A0i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,WHITE PEARL CS.,077
main87908-33B50-B0supersedes 87908-33B31-B0i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,MERCURY GRAY MC.,1H9
main87908-33B50-B1supersedes 87908-33B01-B1i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,PLATINUM SILVER ME,1J4
main87908-33B50-C0supersedes 87908-33B31-C0i201206-201307
BLIND SPOT MONITOR-WITH,BLACK,212
main87908-33B50-C1supersedes 87908-33B31-C1i201206-201307
BLIND SPOT MONITOR-WITH,STARLIGHT BLACK GF.,217
main87908-33B50-D0supersedes 87908-33B01-D0i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,RED MC.CS.,3R1
main87908-33B50-E0supersedes 87908-33B01-E0i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,SLEEK ECURU ME,4U7
main87908-33B50-E1supersedes 87908-33B31-E1i201206-201307
BLIND SPOT MONITOR-WITH,FIRE AGATE M.M.,4V3
main87908-33B50-J0supersedes 87908-33B31-J0i201206-201307
BLIND SPOT MONITOR-WITH,SILVERY BLUE ME,8U9
main87908-33B50-J1supersedes 87908-33B01-J1i201206-201307
BLIND SPOT MONITOR-WITH,LAPIS LAZULI MC.,8V3
main87908-33B51-A0i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077
sub82985-76011
main87908-33B51-B0i201307-201408
G PACKAGE&BLIND SPOT MONITOR-WITH,MERCURY GRAY MC.,1H9
sub82985-76011
main87908-33B51-B1i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),PLATINUM SILVER ME.,1J4
sub82985-76011
main87908-33B51-B2i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7
sub82985-76011
main87908-33B51-C0i201307-201408
BLIND SPOT MONITOR-WITH,BLACK,212
sub82985-76011
main87908-33B51-C1i201307-201408
BLIND SPOT MONITOR-WITH,STARLIGHT BLACK GF.,217
sub82985-76011
main87908-33B51-D0i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1
sub82985-76011
main87908-33B51-E0i201307-201408
BLIND SPOT MONITOR-WITH,SLEEK ECRU ME.,4U7
sub82985-76011
main87908-33B51-E1i201307-201408
BLIND SPOT MONITOR-WITH,FIRE AGATE M.M.,4V3
sub82985-76011
main87908-33B51-J0supersedes 87908-33B01-J0i201307-201408
BLIND SPOT MONITOR-WITH,SILVERY BLUE ME.,8U9
sub82985-76011
main87908-33B51-J1i201408-201507
G PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),LAPIS LAZULI MC.,8V3
sub82985-76011
main87908-33B52-A1supersedes 87908-33B32-A1i201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085
main87908-33B52-B0supersedes 87908-33B32-B0i201507
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9
main87908-33B52-B1supersedes 87908-33B32-B1i201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),PLATINUM SILVER ME.,1J4
main87908-33B52-B2supersedes 87908-33B32-B2i201507
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7
main87908-33B52-C0supersedes 87908-33B32-C0i201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212
main87908-33B52-C2supersedes 87908-33B32-C2i201507
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACKGF.,223
main87908-33B52-D0supersedes 87908-33B32-D0i201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS,3R1
main87908-33B52-E0supersedes 87908-33B02-E0i201507
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7
main87908-33B52-E2supersedes 87908-33B32-E2i201507
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2
main87908-33B52-J2supersedes 87908-33B32-J2i201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEP BLUE MC.,8X5
8794ACOVER, OUTER MIRROR, LH NO.2
main8794A-76070-A0i201206-201507
WHITE PEARL CS.,077
main8794A-76070-A2i201507
SONIC QUARTZ,085
main8794A-76070-B1i201206-201507
MERCURY GRAY MC.,1H9
main8794A-76070-B3i201206-201507
PLATINUM SILVER ME.,1J4
main8794A-76070-B4i201408-201507
SONIC TITANIUM,1J7
main8794A-76070-C0i201507
BLACK,212
main8794A-76070-C2i201206-201507
STARLIGHT BLACK GF.,217
main8794A-76070-C3i201507
GRAPHITE BLACK GF.,223
main8794A-76070-D0i201206-201507
RED MC.CS.,3R1
main8794A-76070-E0i201206-201507
FIRE AGATE M.M.,4V3
main8794A-76070-E1i201206-201507
SLEEK ECRU ME.,4U7
main8794A-76070-E3i201507
AMBER CS.,4X2
main8794A-76070-J1i201206-201408
SILVERY BLUE ME.,8U9
main8794A-76070-J2i201206-201507
LAPIS LAZULI MC.,8V3
main8794A-76070-J4i201507
DEEP BLUE MC.,8X5
87961MIRROR OUTER, LH
main87961-30D80i201507
main87961-33B50i201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
87966RETRACTOR, OUTER MIRROR, LH
main87909-33A91-A0i201308-201507
WHITE PEARL CS.,077
sub87909-33A92
sub82985-76011
main87909-33A91-B0i201308-201507
MERCURY GRAY MC.,1H9
sub87909-33A92
sub82985-76011
main87909-33A91-B1i201308-201507
PLATINUM SILVER ME.,1J4
sub87909-33A92
sub82985-76011
main87909-33A91-B2i201408-201507
SONIC TITANIUM,1J7
sub87909-33A92
sub82985-76011
main87909-33A91-C0i201308-201507
BLACK,212 ,2MH
sub87909-33A92
sub82985-76011
main87909-33A91-C1i201308-201507
STARLIGHT BLACK GF.,217
sub87909-33A92
sub82985-76011
main87909-33A91-D0i201308-201507
RED MC.CS.,3R1
sub87909-33A92
sub82985-76011
main87909-33A91-E0i201308-201507
SLEEK ECRU ME.,4U7
sub87909-33A92
sub82985-76011
main87909-33A91-E1i201308-201507
FIRE AGATE M.M.,4V3
sub87909-33A92
sub82985-76011
main87909-33A91-J0i201308-201408
SILVERY BLUE ME.,8U9
sub87909-33A92
sub82985-76011
main87909-33A91-J1i201308-201507
LAPIS LAZULI MC.,8V3
sub87909-33A92
sub82985-76011
main87909-33B40-A0supersedes 87909-33A91-A0i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,WHITE PEARL CS.,077
main87909-33B40-B0supersedes 87909-33A91-B0i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,MERCURY GRAY MC.,1H9
main87909-33B40-B1supersedes 87909-33B21-B1i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,PLATINUM SILVER ME,1J4
main87909-33B40-C0supersedes 87909-33A91-C0i201206-201307
BLIND SPOT MONITOR-WITH,BLACK,212
main87909-33B40-C1supersedes 87909-33B21-C1i201206-201307
BLIND SPOT MONITOR-WITH,STARLIGHT BLACK GF.,217
main87909-33B40-D0supersedes 87909-33B21-D0i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,RED MC.CS.,3R1
main87909-33B40-E0supersedes 87909-33A91-E0i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,SLEEK ECURU ME,4U7
main87909-33B40-E1supersedes 87909-33A91-E1i201206-201307
BLIND SPOT MONITOR-WITH,FIRE AGATE M.M.,4V3
main87909-33B40-J0supersedes 87909-33A90-J0i201206-201307
G PACKAGE&BLIND SPOT MONITOR-WITH,SILVERY BLUE ME,8U9
main87909-33B40-J1supersedes 87909-33B21-J1i201206-201307
BLIND SPOT MONITOR-WITH,LAPIS LAZULI MC.,8V3
main87909-33B41-A0i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),WHITE PEARL CS.,077
sub82985-76011
main87909-33B41-B0i201307-201408
G PACKAGE&BLIND SPOT MONITOR-WITH,MERCURY GRAY MC.,1H9
sub82985-76011
main87909-33B41-B1i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),PLATINUM SILVER ME.,1J4
sub82985-76011
main87909-33B41-B2i201408-201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7
sub82985-76011
main87909-33B41-C0i201307-201408
BLIND SPOT MONITOR-WITH,BLACK,212
sub82985-76011
main87909-33B41-C1i201307-201408
BLIND SPOT MONITOR-WITH,STARLIGHT BLACK GF.,217
sub82985-76011
main87909-33B41-D0i201307-201408
G PACKAGE&BLIND SPOT MONITOR-WITH,RED MC.CS.,3R1
sub82985-76011
main87909-33B41-E0i201408-201507
G PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7
sub82985-76011
main87909-33B41-E1i201307-201408
BLIND SPOT MONITOR-WITH,FIRE AGATE M.M.,4V3
sub82985-76011
main87909-33B41-J0supersedes 87909-33A91-J0i201307-201408
BLIND SPOT MONITOR-WITH,SILVERY BLUE ME.,8U9
sub82985-76011
main87909-33B41-J1i201307-201408
BLIND SPOT MONITOR-WITH,LAPIS LAZULI MC.,8V3
sub82985-76011
main87909-33B42-A1supersedes 87909-33B22-A1i201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC QUARTZ,085
main87909-33B42-B0supersedes 87909-33B22-B0i201507
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),MERCURY GRAY MC.,1H9
main87909-33B42-B1supersedes 87909-33B22-B1i201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),PLATINUM SILVER ME.,1J4
main87909-33B42-B2supersedes 87909-33B22-B2i201507
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SONIC TITANIUM,1J7
main87909-33B42-C0supersedes 87909-33B22-C0i201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,212
main87909-33B42-C2supersedes 87909-33B22-C2i201507
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),GRAPHITE BLACKGF.,223
main87909-33B42-D0supersedes 87909-33B22-D0i201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),RED MC.CS.,3R1
main87909-33B42-E0supersedes 87909-33B22-E0i201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),SLEEK ECRU ME.,4U7
main87909-33B42-E2supersedes 87909-33B22-E2i201507
C PACKAGE&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),AMBER CS.,4X2
main87909-33B42-J2supersedes 87909-33B22-J2i201507
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),DEEP BLUE MC.,8X5
9017906146
main90179-06146

12 parts on this diagram · 3 diagrams in section

MIRROR — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
