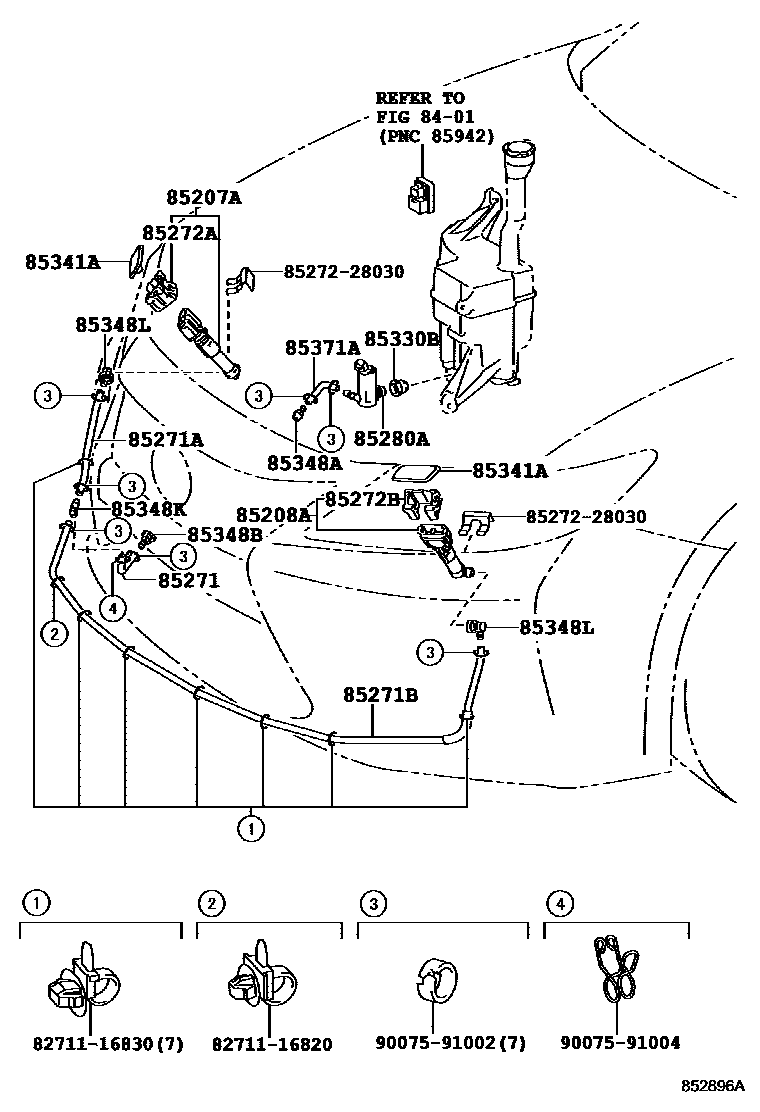

HEADLAMP CLEANER

8401

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-33090iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL

main85207-33090iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *DRL

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-33090iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL

main85208-33090iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *DRL

85271HOSE, HEADLAMP CLEANER, NO.1

main90075-15054iAVV60,GSV60201206

L=120

main90075-15054iAVV60,GSV60201206

L=120,HEAD LAMP-DISCHARGE & *AHB & *DRL

main90075-15054iAVV60,GSV60201206

L=120,HEAD LAMP-DISCHARGE & *DRL

85271AHOSE, HEADLAMP CLEANER, NO.2

main90075-15057iAVV60,GSV60201206

L=220

main90075-15057iAVV60,GSV60201206

L=220,HEAD LAMP-DISCHARGE & *AHB & *DRL

main90075-15057iAVV60,GSV60201206

L=220,HEAD LAMP-DISCHARGE & *DRL

85271BHOSE, HEADLAMP CLEANER, NO.3

main90075-15080iAVV60,GSV60201206

L=1600

main90075-15080iAVV60,GSV60201206

L=1600,HEAD LAMP-DISCHARGE & *AHB & *DRL

main90075-15080iAVV60,GSV60201206

L=1600,HEAD LAMP-DISCHARGE & *DRL

85272ACLAMP, HEADLAMP CLEANER, NO.1

main85272-33030iAVV60,GSV60201206

HEAD LAMP-DISCHARGE & *AHB & *DRL

main85272-33030iAVV60,GSV60201206

HEAD LAMP-DISCHARGE & *DRL

85272BCLAMP, HEADLAMP CLEANER, NO.2

main85273-33010iAVV60,GSV60201206

HEAD LAMP-DISCHARGE & *AHB & *DRL

main85273-33010iAVV60,GSV60201206

HEAD LAMP-DISCHARGE & *DRL

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-47010iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL

main85280-47010iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *DRL

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90099-32089iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL

main90099-32089iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *DRL

85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE

main85353-33010-A0iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *DRL,WHITE PEARL CS.,077,RH

sub85353-33900

main85353-33010-A0iAVV60,GSV60201206-201507

WHITE PEARL CS.,077,RH

sub85353-33900

main85353-33010-A0iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,WHITE PEARL CS.,077,RH

sub85353-33900

main85353-33010-B0iAVV60,GSV60201206-201507

MERCURY GRAY MC.,1H9,RH

sub85353-33900

main85353-33010-B0iASV60201206-201507

HEAD LAMP-DISCHARGE & *DRL,MERCURY GRAY MC.,1H9,RH

sub85353-33900

main85353-33010-B0iASV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,MERCURY GRAY MC.,1H9,RH

sub85353-33900

main85353-33010-B1iAVV60,GSV60201206-201507

PLATINUM SILVER ME.,1J4,RH

sub85353-33900

main85353-33010-B1iASV60201206-201507

HEAD LAMP-DISCHARGE & *DRL,PLATINUM SILVER ME.,1J4,RH

sub85353-33900

main85353-33010-B1iASV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,PLATINUM SILVER ME.,1J4,RH

sub85353-33900

main85353-33010-B2iAVV60,GSV60201408-201507

SONIC TITANIUM,1J7,RH

sub85353-33900

main85353-33010-B2iASV60201408-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,SONIC TITANIUM,1J7,RH

sub85353-33900

main85353-33010-B2iASV60201408-201507

HEAD LAMP-DISCHARGE & *DRL,SONIC TITANIUM,1J7,RH

sub85353-33900

main85353-33010-C0iASV60201206-201507

HEAD LAMP-DISCHARGE & *DRL,BLACK,212,RH

sub85353-33900

main85353-33010-C0iAVV60,GSV60201206-201507

BLACK,212,RH

sub85353-33900

main85353-33010-C0iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,BLACK,212,RH

sub85353-33900

main85353-33010-C1iAVV60,GSV60201206-201507

STARLIGHT BLACK GF.,217,RH

sub85353-33900

main85353-33010-C1iASV60201206-201507

HEAD LAMP-DISCHARGE & *DRL,STARLIGHT BLACK GF.,217,RH

sub85353-33900

main85353-33010-C1iASV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,STARLIGHT BLACK GF.,217,RH

sub85353-33900

main85353-33010-D0iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *DRL,RED MC.CS.,3R1,RH

sub85353-33900

main85353-33010-D0iAVV60,GSV60201206-201507

RED MC.CS.,3R1,RH

sub85353-33900

main85353-33010-D0iASV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,RED MC.CS.,3R1,RH

sub85353-33900

main85353-33010-E0iAVV60,GSV60201206-201507

SLEEK ECRU ME.,4U7,RH

sub85353-33900

main85353-33010-E0iASV60201206-201507

HEAD LAMP-DISCHARGE & *DRL,SLEEK ECRU ME.,4U7,RH

sub85353-33900

main85353-33010-E0iASV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,SLEEK ECRU ME.,4U7,RH

sub85353-33900

main85353-33010-E1iASV60201206-201507

FIRE AGATE M.M.,4V3,RH

sub85353-33900

main85353-33010-E1iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,FIRE AGATE M.M.,4V3,RH

sub85353-33900

main85353-33010-E1iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *DRL,FIRE AGATE M.M.,4V3,RH

sub85353-33900

main85353-33010-J0iAVV60,GSV60201206-201408

HEAD LAMP-DISCHARGE & *AHB & *DRL,SILVERY BLUE ME.,8U9,RH

sub85353-33900

main85353-33010-J0iAVV60,GSV60201206-201408

HEAD LAMP-DISCHARGE & *DRL,SILVERY BLUE ME.,8U9,RH

sub85353-33900

main85353-33010-J0iASV60201206-201408

SILVERY BLUE ME.,8U9,RH

sub85353-33900

main85353-33010-J1iAVV60,GSV60201206-201507

LAPIS LAZULI MC.,8V3,RH

sub85353-33900

main85353-33010-J1iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,LAPIS LAZULI MC.,8V3,RH

sub85353-33900

main85353-33010-J1iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *DRL,LAPIS LAZULI MC.,8V3,RH

sub85353-33900

main85354-33010-A0iAVV60,GSV60201206-201507

WHITE PEARL CS.,077,LH

sub85354-33900

main85354-33010-A0iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,WHITE PEARL CS.,077,LH

sub85354-33900

main85354-33010-A0iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *DRL,WHITE PEARL CS.,077,LH

sub85354-33900

main85354-33010-B0iAVV60,GSV60201206-201507

MERCURY GRAY MC.,1H9,LH

sub85354-33900

main85354-33010-B0iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,MERCURY GRAY MC.,1H9,LH

sub85354-33900

main85354-33010-B0iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *DRL,MERCURY GRAY MC.,1H9,LH

sub85354-33900

main85354-33010-B1iASV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,PLATINUM SILVER ME.,1J4,LH

sub85354-33900

main85354-33010-B1iAVV60,GSV60201206-201507

PLATINUM SILVER ME.,1J4,LH

sub85354-33900

main85354-33010-B1iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *DRL,PLATINUM SILVER ME.,1J4,LH

sub85354-33900

main85354-33010-B2iAVV60,GSV60201408-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,SONIC TITANIUM,1J7,LH

sub85354-33900

main85354-33010-B2iAVV60,GSV60201408-201507

HEAD LAMP-DISCHARGE & *DRL,SONIC TITANIUM,1J7,LH

sub85354-33900

main85354-33010-B2iASV60201408-201507

SONIC TITANIUM,1J7,LH

sub85354-33900

main85354-33010-C0iAVV60,GSV60201206-201507

BLACK,212,LH

sub85354-33900

main85354-33010-C0iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,BLACK,212,LH

sub85354-33900

main85354-33010-C0iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *DRL,BLACK,212,LH

sub85354-33900

main85354-33010-C1iAVV60,GSV60201206-201507

STARLIGHT BLACK GF.,217,LH

sub85354-33900

main85354-33010-C1iASV60201206-201507

HEAD LAMP-DISCHARGE & *DRL,STARLIGHT BLACK GF.,217,LH

sub85354-33900

main85354-33010-C1iASV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,STARLIGHT BLACK GF.,217,LH

sub85354-33900

main85354-33010-D0iAVV60,GSV60201206-201507

RED MC.CS.,3R1,LH

sub85354-33900

main85354-33010-D0iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,RED MC.CS.,3R1,LH

sub85354-33900

main85354-33010-D0iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *DRL,RED MC.CS.,3R1,LH

sub85354-33900

main85354-33010-E0iASV60201206-201507

SLEEK ECRU ME.,4U7,LH

sub85354-33900

main85354-33010-E0iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,SLEEK ECRU ME.,4U7,LH

sub85354-33900

main85354-33010-E0iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *DRL,SLEEK ECRU ME.,4U7,LH

sub85354-33900

main85354-33010-E1iAVV60,GSV60201206-201507

FIRE AGATE M.M.,4V3,LH

sub85354-33900

main85354-33010-E1iASV60201206-201507

HEAD LAMP-DISCHARGE & *DRL,FIRE AGATE M.M.,4V3,LH

sub85354-33900

main85354-33010-E1iASV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,FIRE AGATE M.M.,4V3,LH

sub85354-33900

main85354-33010-J0iAVV60,GSV60201206-201408

HEAD LAMP-DISCHARGE & *AHB & *DRL,SILVERY BLUE ME.,8U9,LH

sub85354-33900

main85354-33010-J0iAVV60,GSV60201206-201408

HEAD LAMP-DISCHARGE & *DRL,SILVERY BLUE ME.,8U9,LH

sub85354-33900

main85354-33010-J0iASV60201206-201408

SILVERY BLUE ME.,8U9,LH

sub85354-33900

main85354-33010-J1iASV60201206-201507

HEAD LAMP-DISCHARGE & *AHB & *DRL,LAPIS LAZULI MC.,8V3,LH

sub85354-33900

main85354-33010-J1iAVV60,GSV60201206-201507

HEAD LAMP-DISCHARGE & *DRL,LAPIS LAZULI MC.,8V3,LH

sub85354-33900

main85354-33010-J1iASV60201206-201507

LAPIS LAZULI MC.,8V3,LH

sub85354-33900

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main90075-17002iAVV60,GSV60201206

HEAD LAMP-DISCHARGE & *AHB & *DRL

main90075-17002iAVV60,GSV60201206

HEAD LAMP-DISCHARGE & *DRL

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main90075-17005iAVV60,GSV60201206

HEAD LAMP-DISCHARGE & *AHB & *DRL

main90075-17005iAVV60,GSV60201206

HEAD LAMP-DISCHARGE & *DRL

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

main90075-17003iAVV60,GSV60201206

HEAD LAMP-DISCHARGE & *AHB & *DRL

main90075-17003iAVV60,GSV60201206

HEAD LAMP-DISCHARGE & *DRL

85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2

main90075-17001iAVV60,GSV60201206

HEAD LAMP-DISCHARGE & *AHB & *DRL

main90075-17001iAVV60,GSV60201206

HEAD LAMP-DISCHARGE & *DRL

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main90075-15055iAVV60,GSV60201206

L=100

main90075-15055iAVV60,GSV60201206

L=100,HEAD LAMP-DISCHARGE & *DRL

main90075-15055iASV60201206

L=100,HEAD LAMP-DISCHARGE & *AHB & *DRL

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

8527228030CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-28030

9007591002

main90075-91002

9007591004

main90075-91004

21 parts on this diagram · 1 diagram in section
