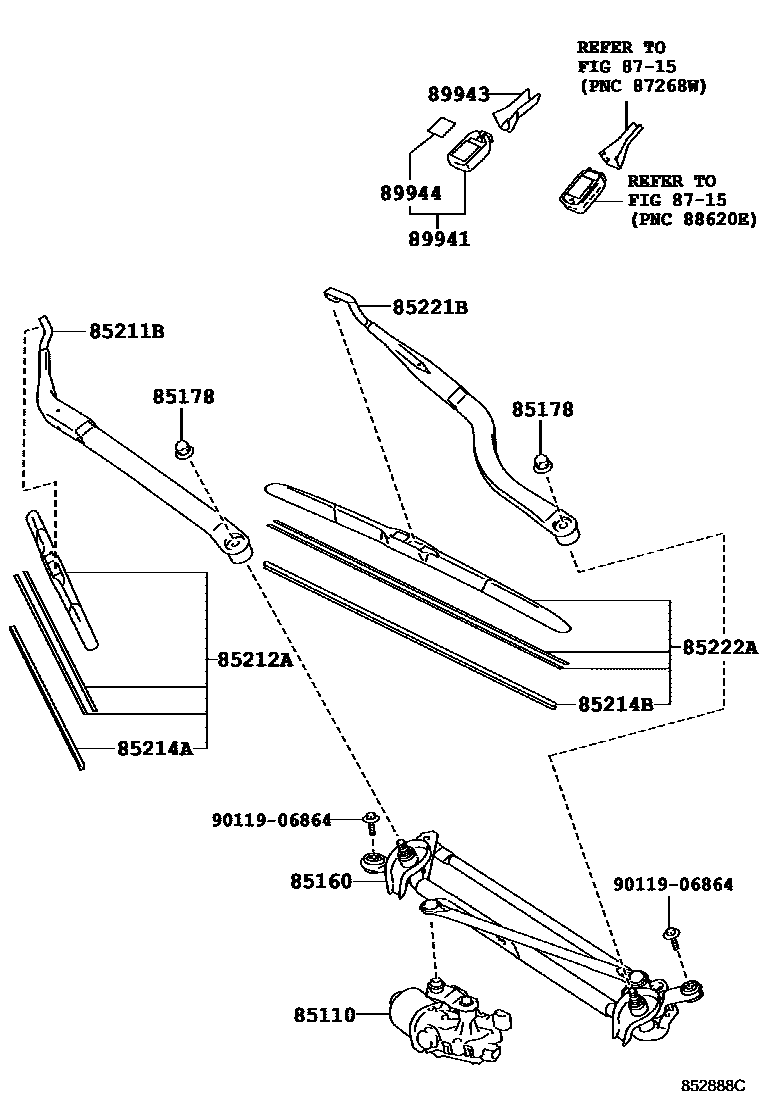

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-33370iASV60,AVV60,GSV60201206-201407

main85110-33390iASV60,AVV60,GSV60201408-201507

85160LINK ASSY, WINDSHIELD WIPER

main85150-33300iASV60,AVV60,GSV60201206-201507

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iASV6#,GSV60201507

85211BARM, FRONT WIPER, RH

main85211-33370iASV60,AVV60,GSV60201206-201507

85212ABLADE, FR WIPER, RH

main85212-33270iASV60,AVV60,GSV60201206-201507

85214ARUBBER, WIPER, RH

main85214-33180iASV6#,GSV60201507

85214BRUBBER, WIPER, LH

main85214-52110iASV60,AVV60,GSV60201211-201507

main85214-68020iASV60,AVV60,GSV60201206-201210

85221BARM, FRONT WIPER, LH

main85221-33380iASV60,AVV60,GSV60201206-201507

85222ABLADE, FR WIPER, LH

main85222-33280iASV60,AVV60,GSV60201206-201507

8715

89941SENSOR, RAIN

main89941-52010iAVV60,GSV60201206-201507

DOMINICAN REPUBLIC SPEC

89943COVER, RAIN SENSOR

main89943-33050iAVV60,GSV60201206-201507

DOMINICAN REPUBLIC SPEC

89944TAPE, RAIN SENSOR

main89944-42010iAVV60,GSV60201206-201507

DOMINICAN REPUBLIC SPEC

9011906864

main90119-06864

14 parts on this diagram · 1 diagram in section
