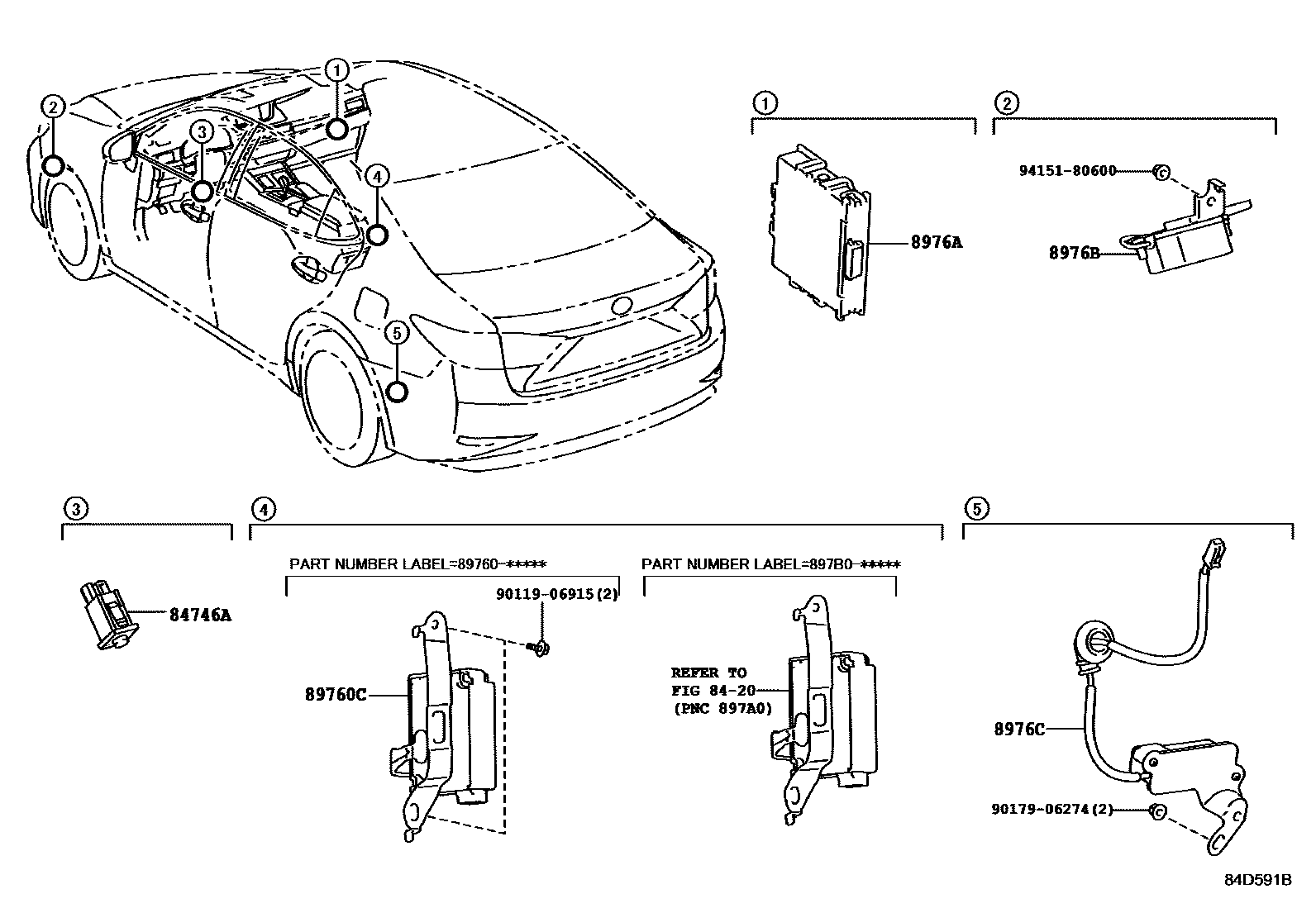

TIRE PRESSURE WARNING SYSTEM

8420

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-48010iASV60,AVV60,GSV60201206-201507

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-33050iASV60,AVV60,GSV60201206-201507

8976ADRIVER, TIRE PRESSURE MONITOR INITIATOR

main8976A-33010iASV60,AVV60,GSV60201206-201308

sub8976A-33030

main8976A-33011iASV60,AVV60,GSV60201308-201505

sub8976A-33030

main8976A-33030iASV60,AVV60,GSV60201506-201705

sub8976A-33032

main8976A-33031iASV6#,GSV60201706

sub8976A-33032

8976BINITIATOR, TIRE PRESSURE MONITOR FRONT

main8976B-33010iASV60,AVV60,GSV60201206-201607

sub8976B-33011

main8976B-33011iASV6#,GSV60201608

8976CINITIATOR, TIRE PRESSURE MONITOR REAR

main8976C-33030iASV60,AVV60,GSV60201206-201606

sub8976C-33031

main8976C-33031iASV6#,GSV60201607

9011906915

main90119-06915

9017906274

main90179-06274

9415180600

main94151-80600

9 parts on this diagram · 1 diagram in section
