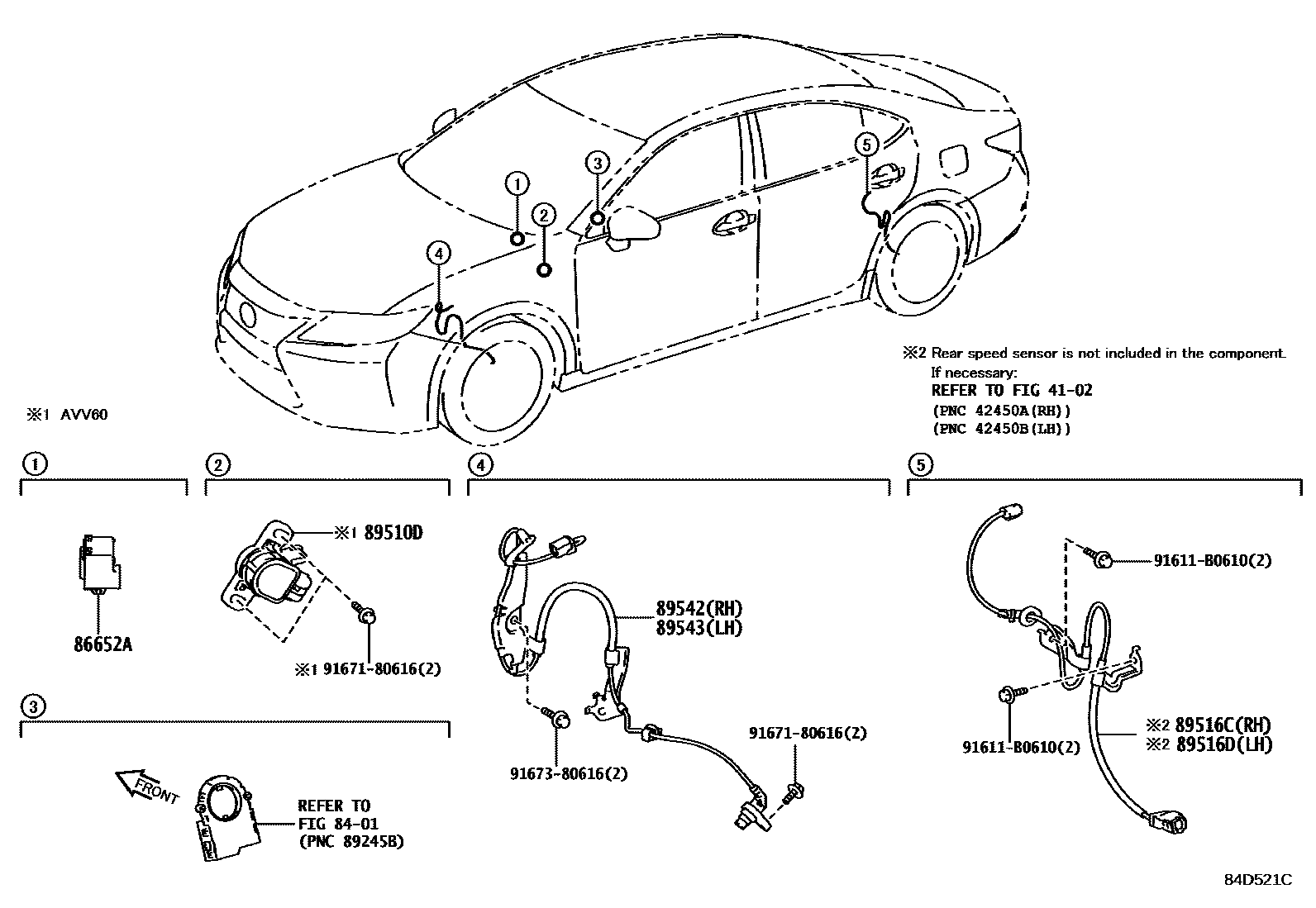

ABS & VSC

4102

8401

86652ABUZZER ASSY, SKID CONTROL

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33030iAVV60201206-201507

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-33090iASV60,AVV60,GSV60201206-201507

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-33100iASV60,AVV60,GSV60201206-201507

89542SENSOR, SPEED, FRONT RH

main89542-33100iASV60,AVV60,GSV60201206-201402

sub89542-33120

main89542-33120iASV60,AVV60,GSV60201408-201507

main89542-33130iASV60,AVV60,GSV60201403-201408

sub89542-33120

89543SENSOR, SPEED, FRONT LH

main89543-33090iASV60,AVV60,GSV60201206-201402

sub89543-33110

main89543-33110iASV60,AVV60,GSV60201408-201507

main89543-33120iASV60,AVV60,GSV60201403-201408

sub89543-33110

91611B0610

main91611-B0610

9167180616

main91671-80616

9167380616

main91673-80616

11 parts on this diagram · 1 diagram in section
