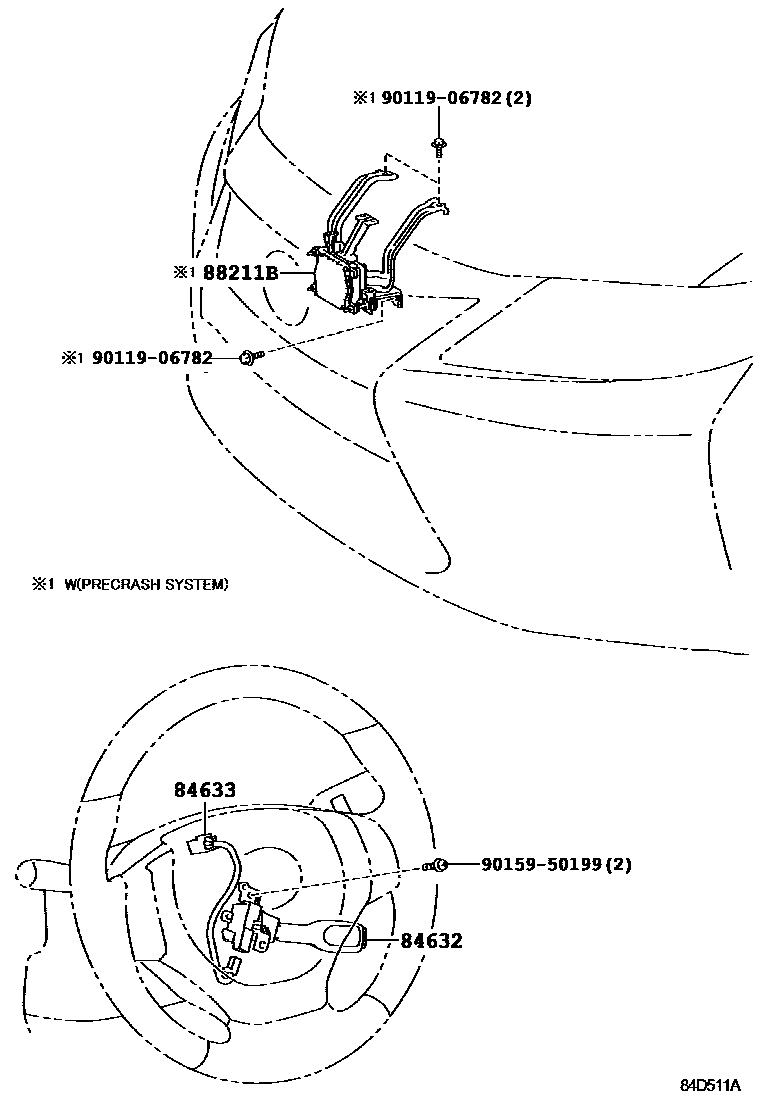

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

84632SWITCH, CRUISE CONTROL MAIN

main84632-30010iASV60,AVV60,GSV60201206-201507

main84632-30020iAVV60,GSV60201307-201507

PRE-COLLISION SYSTEM-WITH

main84632-48010iASV6#,GSV60201507

PRE-COLLISION SYSTEM-WITH

84633WIRE, CRUISE CONTROL SWITCH

main84633-76010iASV60,AVV60,GSV60201206-201507

main84633-76020iAVV60,GSV60201307-201507

PRE-COLLISION SYSTEM-WITH

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-33080iAVV60,GSV60201308-201406

PRE-COLLISION SYSTEM-WITH

sub88210-33081

main88210-33081iAVV60,GSV60201407-201507

PRE-COLLISION SYSTEM-WITH

sub88210-33082

main88210-33110iASV6#,GSV60201507

PRE-COLLISION SYSTEM-WITH

main88210-47080iASV60201507-201708

UKRAINE SPEC&PRE-COLLISION SYSTEM-WITH

sub88210-48121

9011906782

main90119-06782

9015950199

main90159-50199

5 parts on this diagram · 2 diagrams in section
