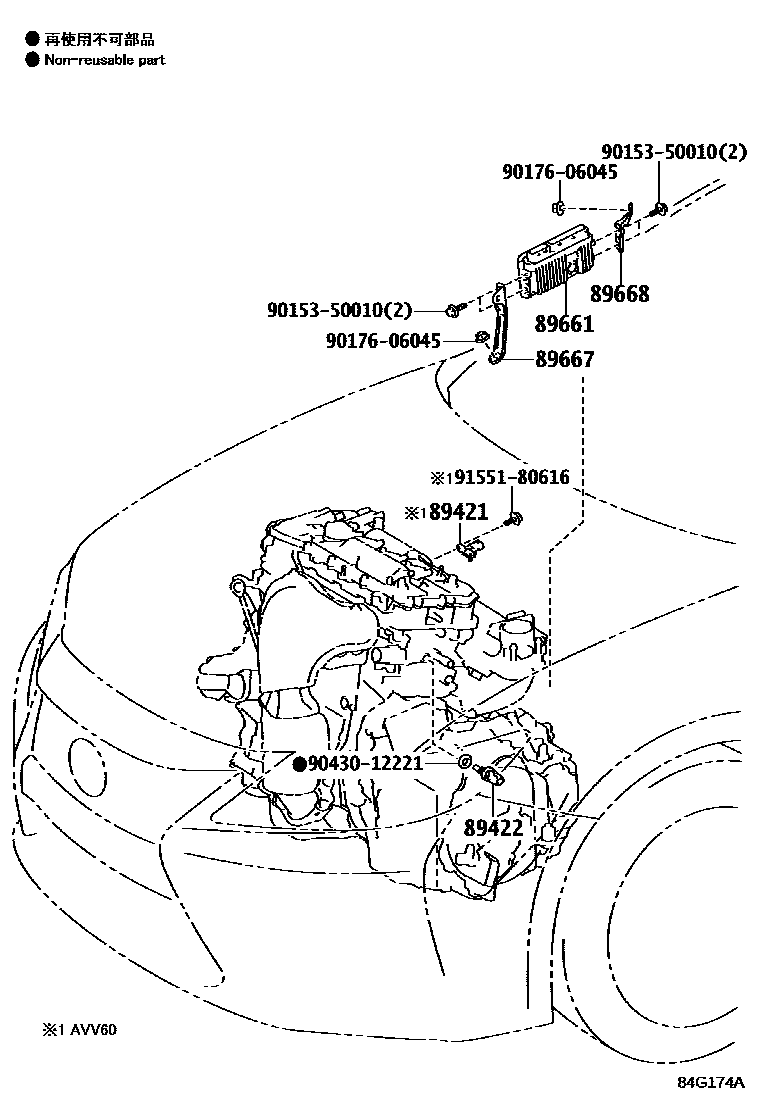

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iAVV60201206-201507

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iASV60,AVV60,GSV60201206-201507

89661COMPUTER, ENGINE CONTROL

main89661-33K50iASV60201206-201307

sub89661-33K51

main89661-33K51iASV60201308-201507

main89661-33K80iGSV60201206-201307

main89661-33L50iAVV60201206-201308

main89661-33M50iGSV60201308-201507

main89661-33N20iAVV60201308-201408

main89661-33Q50iAVV60201408-201507

main89661-33Q70iASV60201507-201608

main89661-33S10iASV61201507-201608

main89661-33S20iGSV60201507-201608

main89661-33V30iGSV60201608

main89661-33V60iASV61201608

main89661-33V70iASV60201608

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-33150iGSV60201206-201507

main89667-33160iASV61201507

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-33220iASV61201507

main89668-33230iGSV60201206-201507

9015350010

main90153-50010

9017606045

main90176-06045

9043012221

main90430-12221

9155180616

main91551-80616

9 parts on this diagram · 3 diagrams in section
