METER

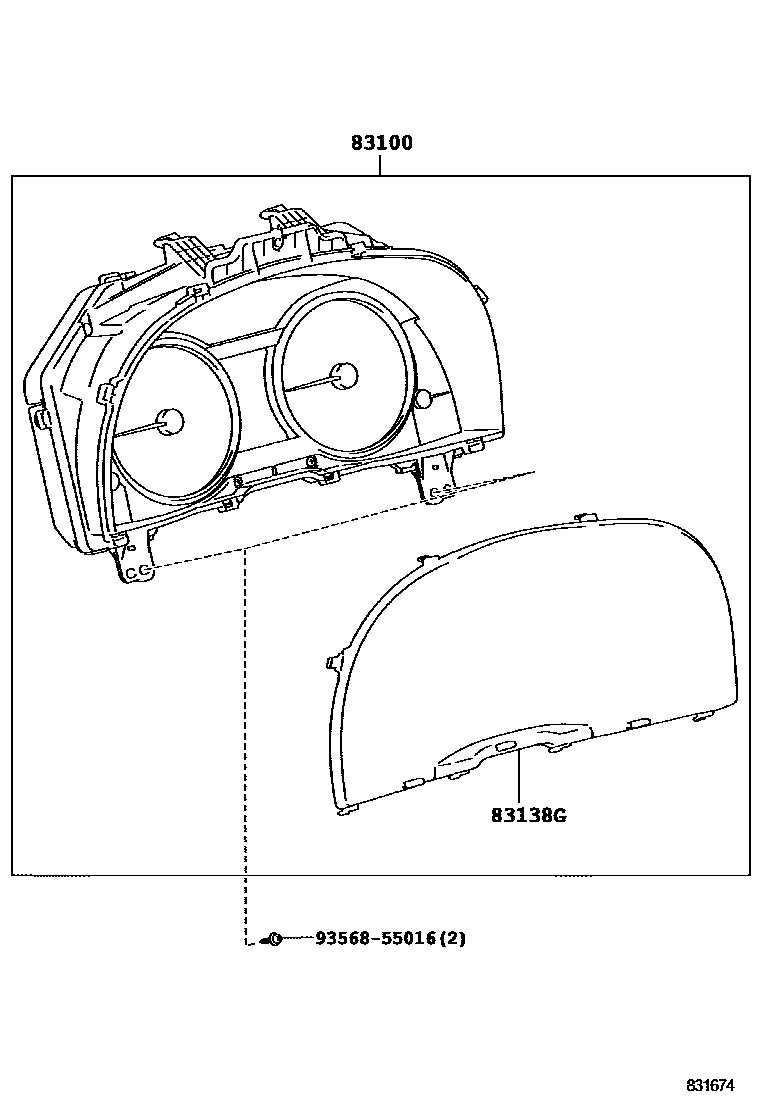

Parts diagram

83100METER ASSY, COMBINATION

main83800-33M80i201206-201308

main83800-33M81i201308-201408

main83800-33M82i201408-201507

main83800-33N20i201206-201308

main83800-33N21i201308-201408

main83800-33N22i201408-201410

main83800-33N23i201410-201507

main83800-33P10i201507-201608

main83800-33P11i201608

main83800-33P80i201507-201608

main83800-33P81i201608-201708

main83800-33P82i201708

DENSO

main83800-33M70i201206-201308

BRAZIL SPEC

main83800-33M71i201308-201408

DOMINICAN REPUBLIC SPEC&AUDIO-EMV-AUDIO & DVD & 8SPEAKER

main83800-33M72i201408-201507

DOMINICAN REPUBLIC SPEC&AUDIO-*DA & CD & 8SPEAKER

main83800-33P00i201507-201608

GUATEMALA SPEC&AUDIO-*DA & DVD & 8SPEAKER

main83800-33P01i201608-201705

GUATEMALA SPEC&AUDIO-*DA & DVD & 8SPEAKER

main83800-33P02i201708

DENSO,CURACAO SPEC&AUDIO-*DA & DVD & 8SPEAKER

main83800-33W80i201705-201708

DENSO,CURACAO SPEC&AUDIO-*DA & DVD & 8SPEAKER

83138GGLASS, COMBINATION METER

main83852-33M50i201206-201507

main83852-33N80i201507

9356855016

main93568-55016

3 parts on this diagram · 1 diagram in section
