WIRING & CLAMP

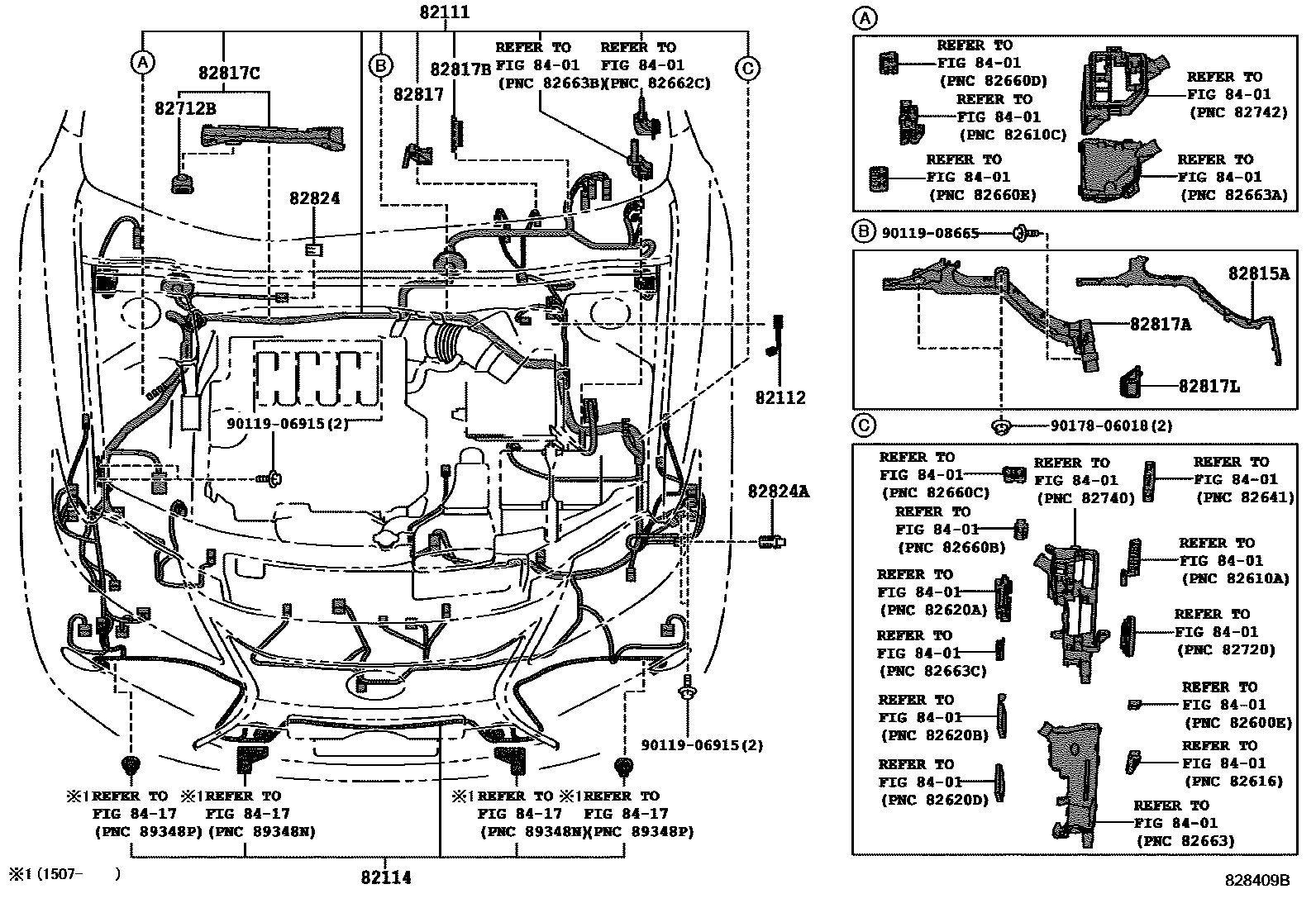

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-33S22supersedes 82111-33R92i201308-201408

UKRAINE SPEC&PRE-COLLISION SYSTEM-WITH

main82111-33S23supersedes 82111-33R93i201408-201411

UKRAINE SPEC&PRE-COLLISION SYSTEM-WITH

main82111-33S24supersedes 82111-33V81i201412-201507

UKRAINE SPEC&PRE-COLLISION SYSTEM-WITH

main82111-33S40supersedes 82111-33W51i201206-201210

HEAD LAMP-DISCHARGE & *DRL

main82111-33S41supersedes 82111-33W51i201211-201308

HEAD LAMP-DISCHARGE & *DRL

main82111-33S42supersedes 82111-33S32i201308-201408

HEAD LAMP-DISCHARGE & *DRL

main82111-33S43supersedes 82111-33S33i201408-201411

G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & BAMBOO&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-EMVN & DVD & 8SPEAK

main82111-33S44supersedes 82111-33W51i201412-201507

G PACKAGE&STEERING WHEEL-3-SPOKE,LEATHER & BAMBOO&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)&HEAD LAMP-DISCHARGE & *AHB & *DRL&AUDIO-EMVN & DVD & 8SPEAK

main82111-33T12supersedes 82111-33S92i201308-201408

UKRAINE SPEC&H PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-EMVN & DVD & *MAR & 15SPEAKER

main82111-33T13supersedes 82111-33S93i201408-201411

UKRAINE SPEC&H PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-EMVN & DVD & *MAR & 15SPEAKER & DAB

main82111-33T14supersedes 82111-33S94i201412-201507

UKRAINE SPEC&H PACKAGE&PRE-COLLISION SYSTEM-WITH&AUDIO-EMVN & DVD & *MAR & 15SPEAKER & DAB

main82111-33W30i201507-201608

PRE-COLLISION SYSTEM-WITH

main82111-33W31i201608

PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)

main82111-33W60supersedes 82111-33W51i201507-201607

PRE-COLLISION SYSTEM-WITH

main82111-33W61supersedes 82111-33W51i201608

PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)

main82111-33W70supersedes 82111-33W51i201507-201607

C PACKAGE

main82111-33W71supersedes 82111-33W51i201608

C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)

main82111-33W90supersedes 82111-33W51i201507-201607

C PACKAGE&PRE-COLLISION SYSTEM-WITH

main82111-33W91supersedes 82111-33W51i201608

C PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)

main82111-33X20supersedes 82111-33X11i201507-201607

C PACKAGE

main82111-33X21supersedes 82111-33X11i201608

C PACKAGE&STEERING WHEEL-3-SPOKE, LEATHER & WOOD, WITH(HEATER)

main82111-33X30supersedes 82111-33X11i201507-201607

C PACKAGE&PRE-COLLISION SYSTEM-WITH

main82111-33X31supersedes 82111-33X11i201608

C PACKAGE&PRE-COLLISION SYSTEM-WITH&STEERING WHEEL-3-SPOKE, LEATHER & WOOD&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)

main82111-3TK40supersedes 82111-33X11i201507-201607

PRE-COLLISION SYSTEM-WITH

main82111-3TK41supersedes 82111-33X11i201608

PRE-COLLISION SYSTEM-WITH&INTERMITTENT WIPER-WITH(RAIN SENSOR & TIME ADJUSTMENT)

82112WIRE, ENGINE ROOM, NO.2

main82112-33100i201507

82114WIRE, ENGINE ROOM, NO.4

main82114-33030i201206-201507

main82114-33031i201507

82712BSUPPORT, WIRING HARNESS

main82712-33190i201507

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-33620i201206-201507

main82815-33850i201507

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-33K00i201206-201507

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-33F90i201206-201507

main82817-33L70i201507

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-33L80i201206-201507

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-33G00i201206-201507

main82817-33L90i201206-201507

82817LPROTECTOR, WIRING HARNESS, NO.11

main82817-33V90i201507

82824CONNECTOR, WIRING HARNESS

main82824-33360

main82824-33600

main82824-33620

82824ACONNECTOR, WIRING HARNESS

main82824-33620i201507-201708

CENTRAL & SOUTH AMERICA SPEC

8401

8417

9011906915

main90119-06915

9011908665

main90119-08665

9017806018

main90178-06018

17 parts on this diagram · 16 diagrams in section
