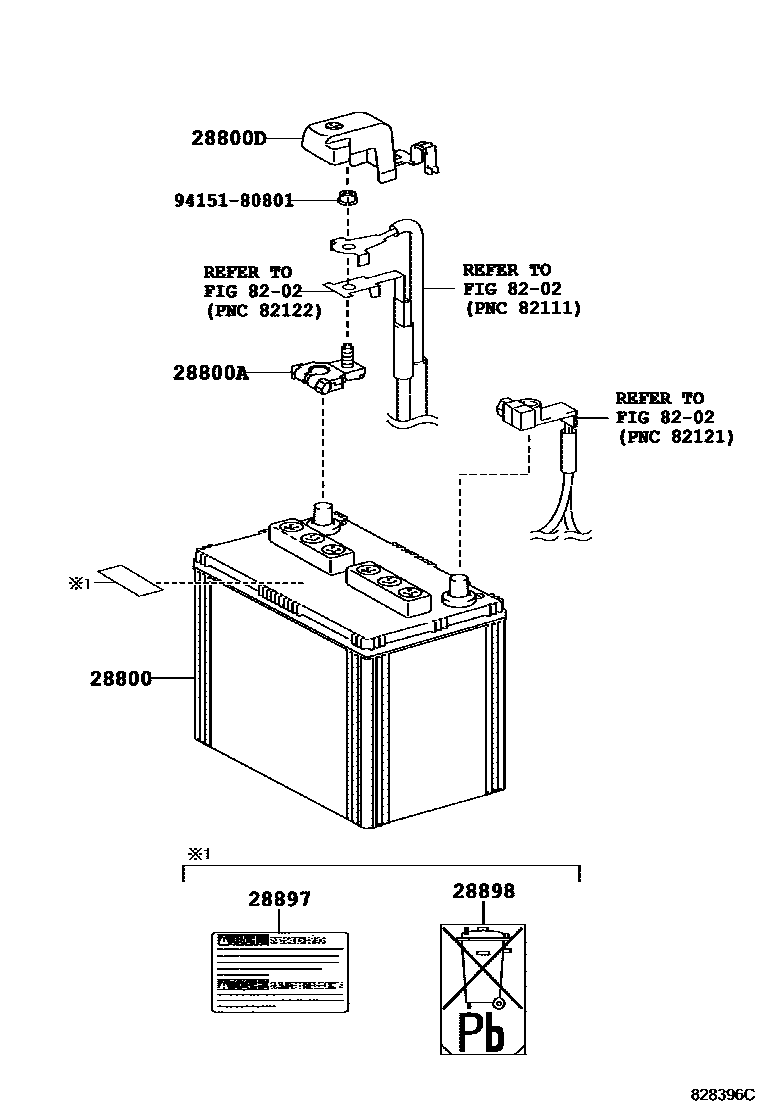

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-36050i2ARFXE..AVV60201206-201507

S65D26R

sub28800-36051

main28800-36150i6ARFSE..ASV61201507

T-115

sub28800-36151

main28800-38080i2ARFE,2GRFE..ASV60,GSV60201507

80D26L

sub28800-38081

main28800-50080i2ARFE,2GRFE..ASV60,GSV60201206-201507

80D26L

sub28800-64132

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2ARFXE..AVV60201206-201507

main90982-05062i2ARFE,6ARFSE,2GRFE..ASV6#,GSV60201206-201507

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33360i2ARFE,2GRFE..ASV60,GSV60201206-201507

main82821-47110i2ARFXE..AVV60201206-201507

28897PLATE, BATTERY CAUTION

main28897-31040i2AR#,2GRFE..ASV60,AVV60,GSV60201206-201507

AZERBAYCAN SPEC

main28897-31040i2AR#,2GRFE..ASV60,AVV60,GSV60201206-201507

KAZAKHSTAN SPEC

main28897-31040i2ARFE,6ARFSE,2GRFE..ASV6#,GSV60201507-201802

main28897-38070i2ARFE,6ARFSE,2GRFE..ASV6#,GSV60201803

BRAZIL SPEC

28898PLATE, BATTERY

main28898-46020i2GRFE..GSV60201206-201507

BRAZIL SPEC

main28898-46020i2ARFE,2GRFE..ASV60,GSV60201206-201507

AZERBAYCAN SPEC

main28898-46020i2ARFE,2GRFE..ASV60,GSV60201206-201507

KAZAKHSTAN SPEC

8202

9415180801

main94151-80801

7 parts on this diagram · 5 diagrams in section
